Ground Dependent Whips
A range of whip aerials is available to suit frequencies from 65 MHz through to cellular. Designed for secure mounting with collet or grubscrew bases, these aerials offer durable construction and reliable performance.
Models include stainless steel and tapered designs, with options providing 3dB or 6dB gain. Select models are pre-tuned for optimal performance across key frequency ranges.
There are a number of different whips available which cover the range from 65 MHz right up to the cellular frequencies. They all mount onto our aerial bases using either a collet mount or a grubscrew mount.

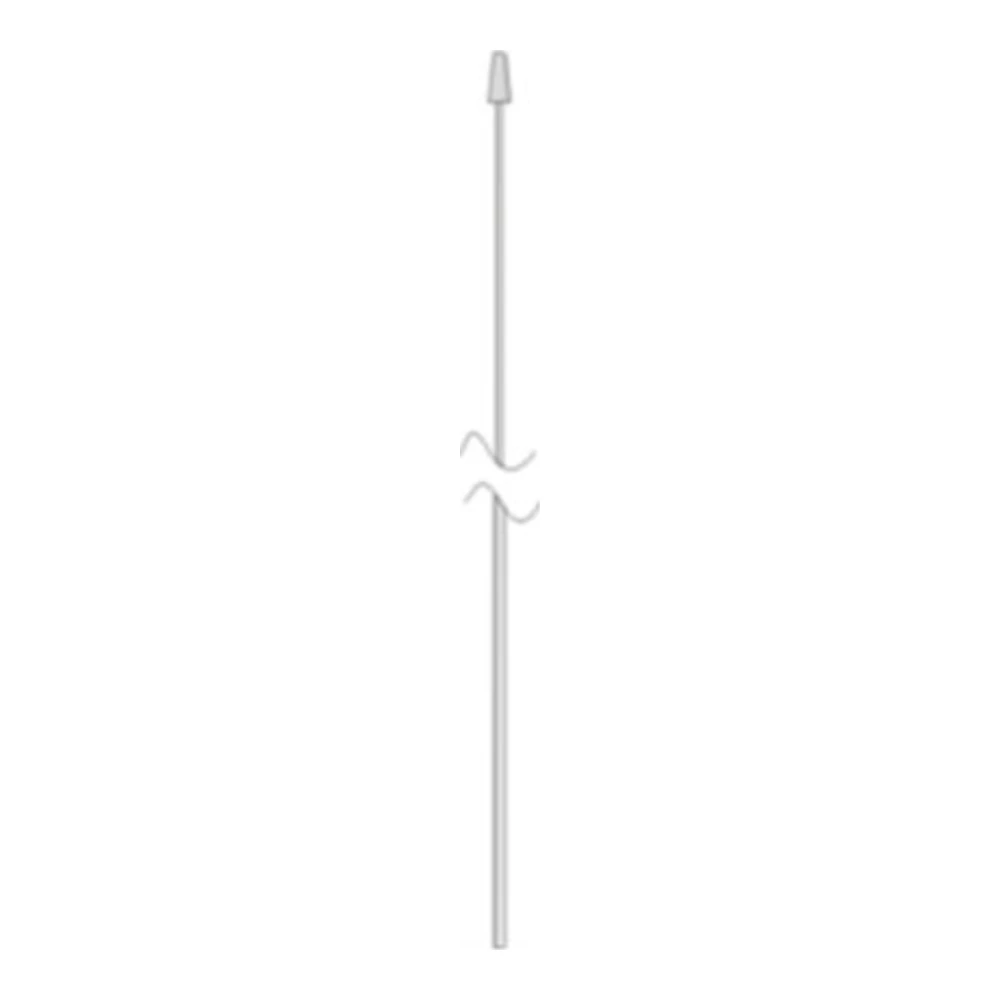

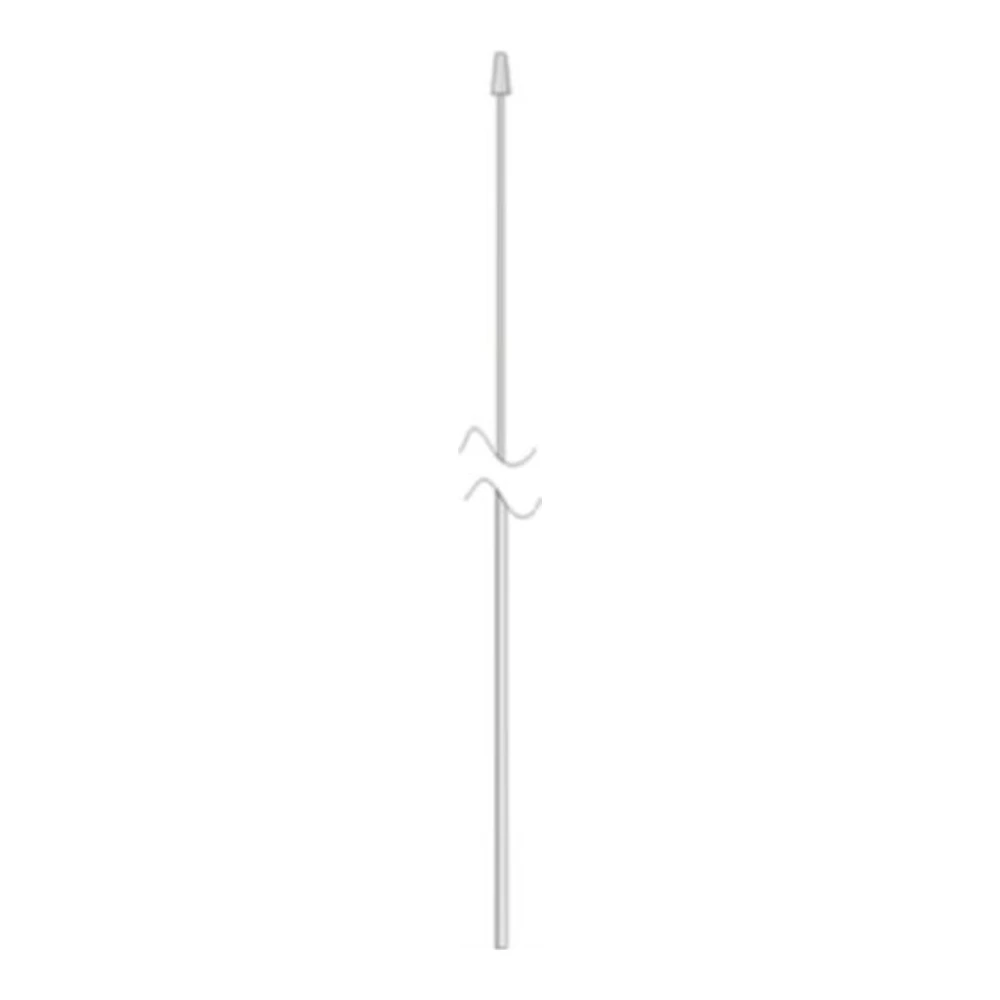

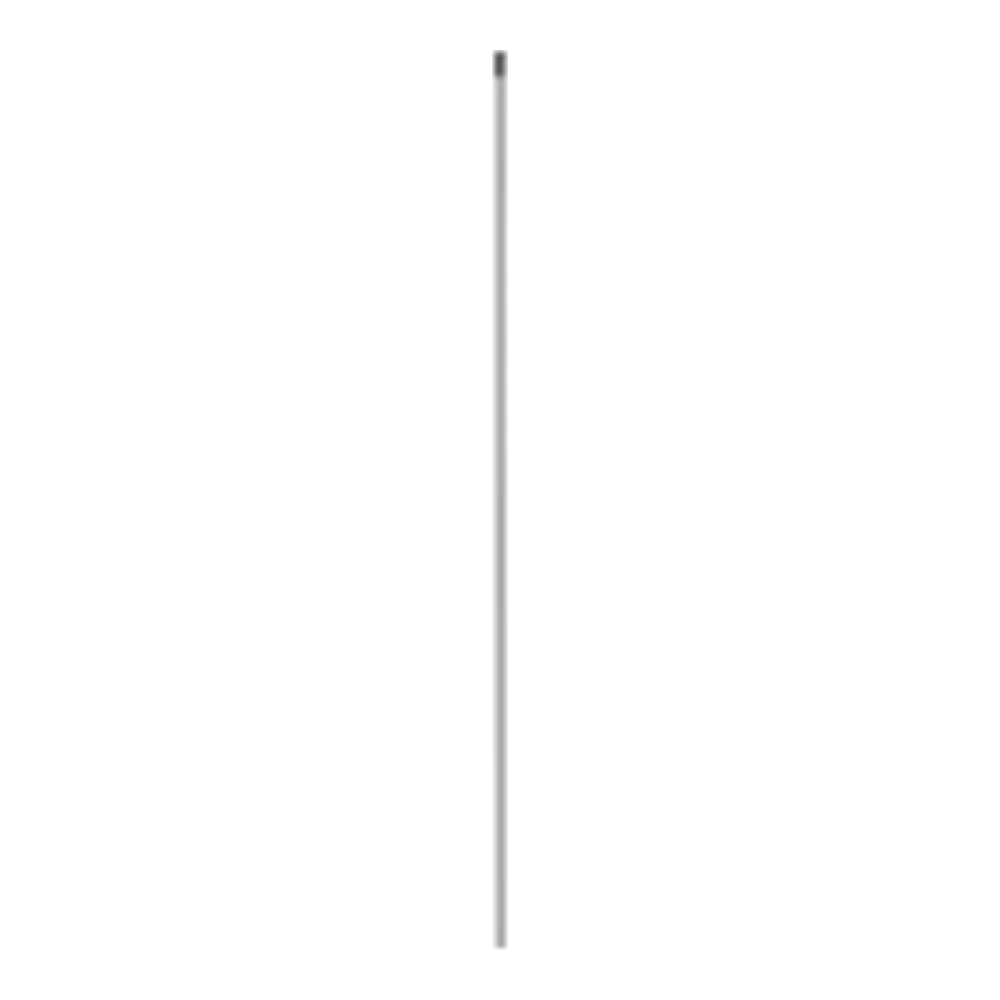

The W02 and W05 are made from parallel stainless steel with a vinyl tip, while the W09 and W12 whips have a 2.7mm base and taper up to a machined tip.
The W5/8U and WUCOL3 both have 3dB gain, with the latter having a wider bandwidth. The W5/8U is supplied tuned to 400-410 MHz and the WUCOL3 is supplied tuned to 400-420 MHz.
The WCELCOL6 provides 6dB of gain.
| Model | Description | Frequency Range (MHz) |
| W02 | Stainless Steel Whip 200mm | 380 - 550 |
| W02-BLK | Stainless Steel Whip 200mm - Black | 380 - 550 |
| W05 | Stainless Steel Whip 500mm | 150 - 380 |
| W05-BLK | Stainless Steel Whip 500mm - Black | 150 - 380 |
| W09 | Stainless Steel Tapered Whip 980mm | 75 - 110 |
| W09-BLK | Stainless Steel Tapered Whip 980mm - Black | 75 - 110 |
| W12 | Stainless Steel Tapered Whip 1200mm | 65 - 90 |
| W12-BLK | Stainless Steel Tapered Whip 1200mm - Black | 65 - 90 |
| W5/8U | 5/8w UHF Stainless Steel Whip | 400 - 500 |
| W5/8U-BLK | 5/8w UHF Stainless Steel Whip - Black | 400 - 500 |
| WUCOL3 | UHF Collinear 3dB Whip - Black | 400 - 500 |
| WCELCOL6 | Cellular Collinear 6dB Whip - Black | 700 - 1000 |
