Low Profile Aerials
Hi-Tec’s low profile antennas are special application antennas for installations where minimum overhead clearance is available and where vibration may be severe. They are used in industries such as the railway and forestry.
VHF Aerials
Hi-Tec's low profile antennas are special application antennas for installations where minimum overhead clearance is available and where vibration may be severe. They are used in industries such as the railway and forestry.

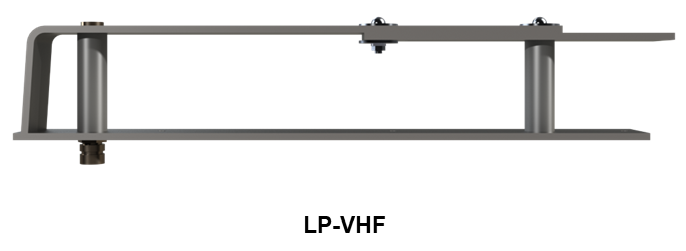

The LP-VHF model is fabricated from series 6000 grade aluminium which is then welded. Completed antennas are finished with an epoxy coating to provide a weather resistant finish.

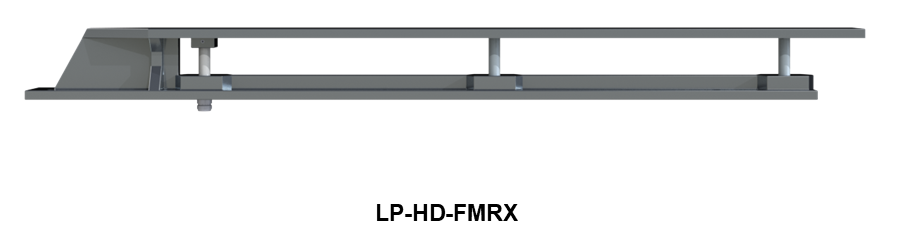

The LP-HD-FMRX model is a heavy duty design manufactured from cast aluminium and suitable for heavy industry use such as railways. Completed antennas are finished with an epoxy coating to provide a weather resistant finish. This model is supplied factory tuned.
The radiation pattern of all models is equivalent to a 1/4w antenna, vertically polarised when mounted on a horizontal ground plane and is essentially omnidirectional.
| Model | LP-VHF | LP-HD-FMRX |
| Frequency Range (MHz) | 138-160 (see bandwidth) | 88-108 (see bandwidth) |
| Bandwidth (MHz) | 1.5 | 2 |
| Gain (dBd) | Unity | |
| Input Impedance (Ohms) | 50 | |
| Connector Type | N Jack | |
| Maximum Power (W) | 100 | Rx only |
| Height (mm) | 75 | 80 |
| Length (mm) | 500 | 870 |
| Width (mm) | 38 | 55 |
| Weight (mm) | 0.5 | 3.5 |
| Mounting | 3 x 5mm holes | 6 x 8mm holes |
| Field Tunable | Yes | No |
UHF Aerial

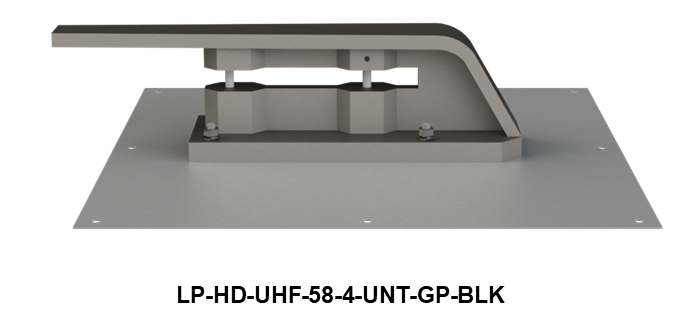

The LP-HD-UHF is a heavy duty design, manufactured from cast aluminium and is suitable for bus/truck fleet operation or railway use. A hardwire RG58 coax tail is fitted as standard.
This antenna can be supplied with or without a ground plane and is finished with a black powder coated paint finish. This antenna is supplied factory tuned.
- On request the colour can be changed.
| Model | LP-HD-UHF |
| Frequency Range (MHz) | 350-500 (see bandwidth) |
| Bandwidth (MHz) | 15 |
| Gain (dBd) | 0 |
| Input Impedance (Ohms) | 50 |
| Cable Type | RG58 |
| Maximum Power (W) | 100 |
| Height (mm) | 100 |
| Length (mm) | 300 (ground plane) |
| Width (mm) | 300 (ground plane) |
| Weight (mm) | 0.5 |
| Mounting Location | Any location |
| Field Tunable | No |
