Coax Cable Leads
Price on application

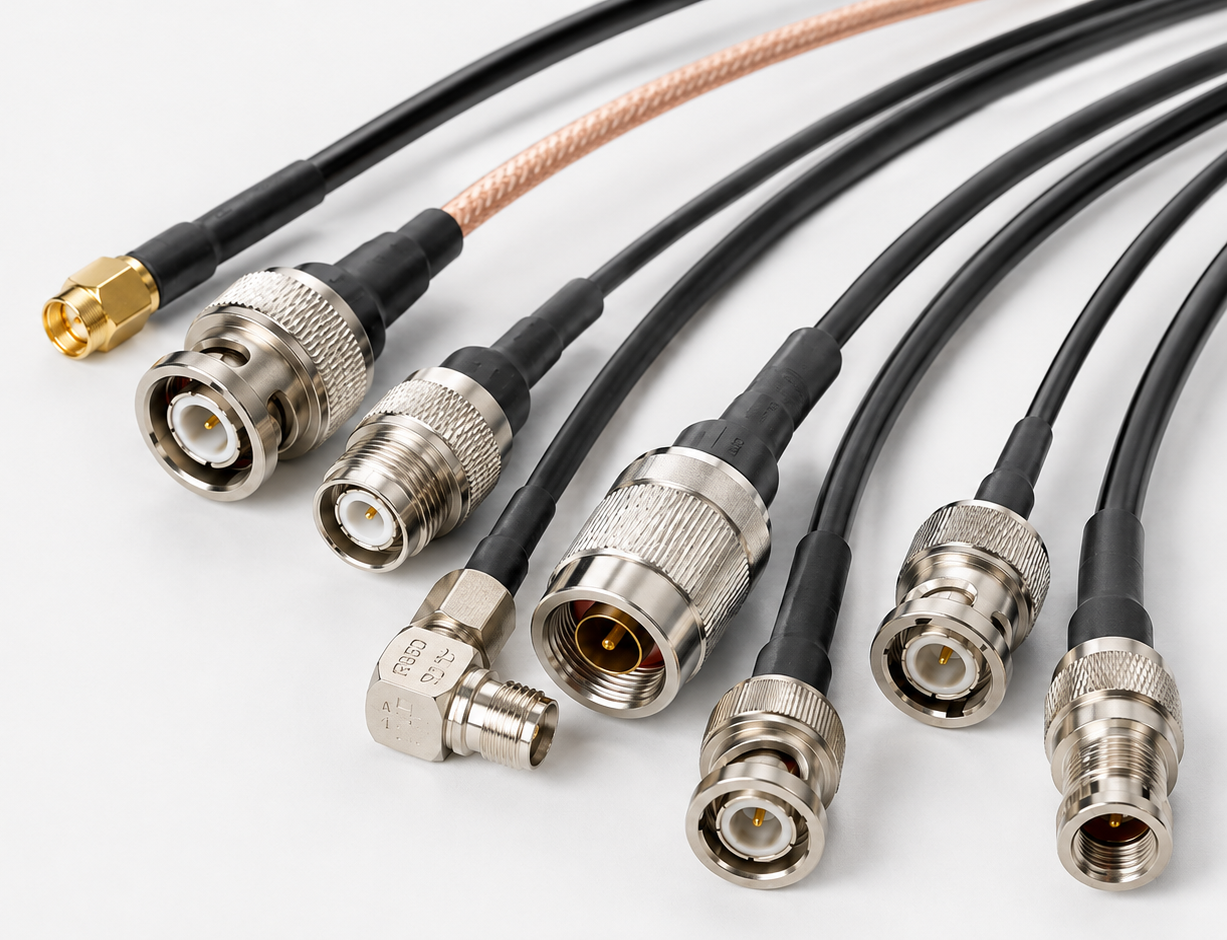

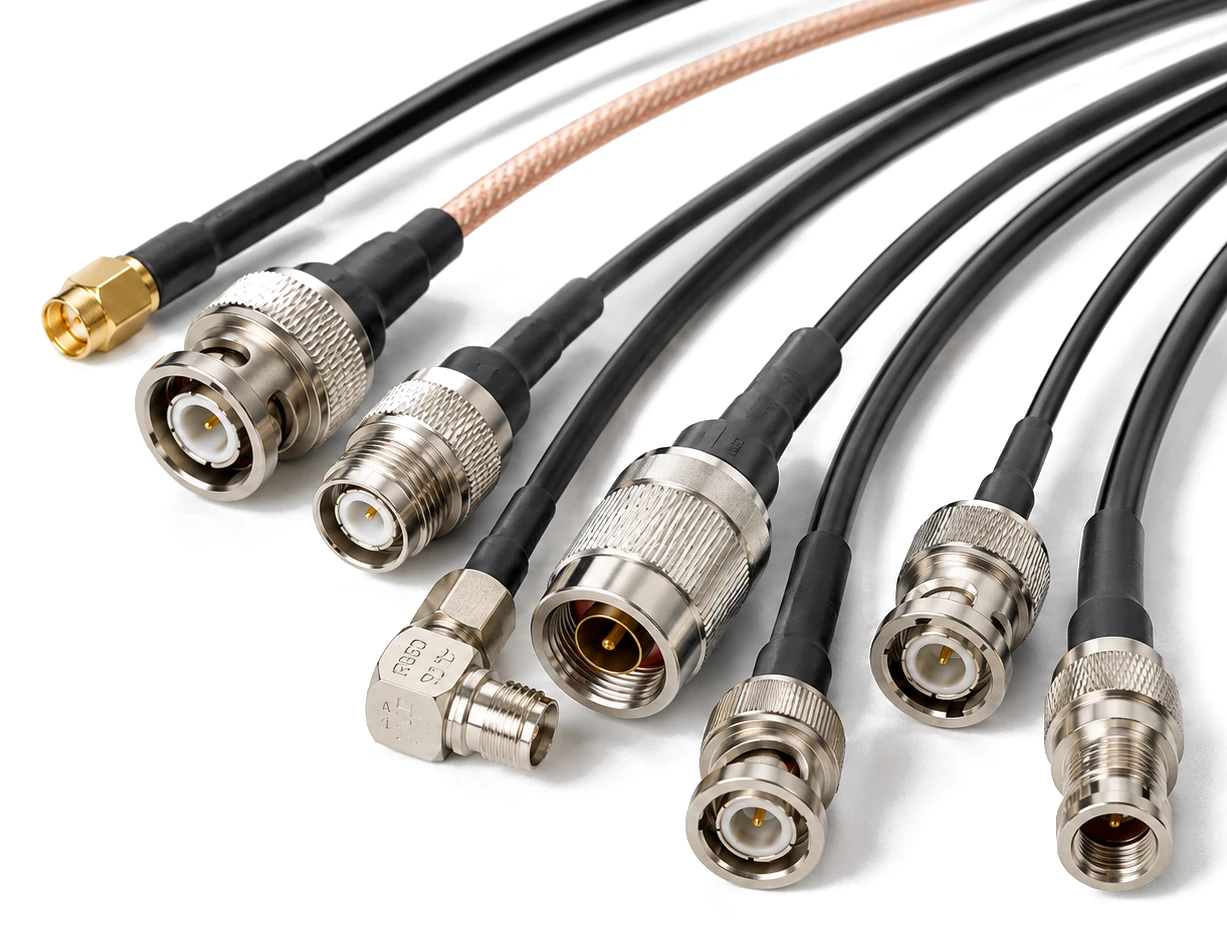

Signals NZ supplies made-to-order coaxial cable leads, built to your length with the connectors you need on each end. Every lead is assembled with quality cable and Telegärtner connectors and tested before dispatch.
- Cable: RG58, RG58 Low Loss, RG174, RG213, RG214, RG223, LMR195, LMR240 and LMR400 (including Ultra Flex)
- Connectors: N, BNC, TNC, SMA, FME and PL-259/SO239, straight, right angle or bulkhead
- Any length, from short patch leads to long feeders
- Tell us the cable, length and both connectors, or the CAB- code, and we’ll quote
Leads built to your spec
A ready-made lead saves time on site and avoids a poorly fitted connector, one of the most common causes of high VSWR and lost range. We build each lead to your exact length with the right cable for the run, fit Telegärtner connectors and test it before it leaves us.
How to order
Tell us four things, or use the code format CAB-{cable}-{length in m}-{connector A}-{connector B}:
- Cable: 58 (RG58), 58LL (RG58 Low Loss), 58W (RG58 White), 174, 213, 214, 223, 195 / 195UF (LMR195 / Ultra Flex), 240UF (LMR240 Ultra Flex) or 400 (LMR400). See our coax cable range for which to choose.
- Length: in metres, e.g. 0.5, 2 or 10.
- Connector A and B: NP (N plug), NJ (N jack), NJBH (N jack bulkhead), NPRA (N plug right angle), BNCP/BNCJ, TNCP/TNCJ/TNCPRA, SMAP/SMAJ/SMAPRA, FMEP/FMEJ, PL259, SO239 or UNT (unterminated).
For example, CAB-213-1-NP-NP is a 1 m RG213 lead with an N plug on both ends. Send us your requirements and we'll confirm price and lead time. Need only the parts? See our Telegärtner connectors and adapters.
Installed by Signals NZ
We build and fit cable leads for two-way radio, repeater, cellular and GPS installs across New Zealand, with lightning protection where needed. See our installation and service options.
Example leads
| Code | Description |
|---|---|
| CAB-58-1-NP-BNCP | RG58, 1 m, N plug to BNC plug |
| CAB-58-2-NJBH-BNCJ | RG58, 2 m, N jack bulkhead to BNC jack |
| CAB-58LL-5-NPRA-SMAP | RG58 Low Loss, 5 m, N plug right angle to SMA plug |
| CAB-58LL-1-NJ-TNCP | RG58 Low Loss, 1 m, N jack to TNC plug |
| CAB-174-0.6-TNCP-SMAP | RG174, 0.6 m, TNC plug to SMA plug |
| CAB-174-3-TNCP-TNCJ | RG174, 3 m, TNC plug to TNC jack |
| CAB-195-2-BNCP-BNCP | LMR195, 2 m, BNC plug to BNC plug |
| CAB-195UF-0.5-NP-NP | LMR195 Ultra Flex, 0.5 m, N plug to N plug |
| CAB-213-1-NP-NP | RG213, 1 m, N plug to N plug |
| CAB-213-0.5-NP-NJ | RG213, 0.5 m, N plug to N jack |
| CAB-223-1-NPRA-NJ | RG223, 1 m, N plug right angle to N jack |
| CAB-223-2-BNCP-BNCP | RG223, 2 m, BNC plug to BNC plug |
| CAB-400-10-NP-TNCP | LMR400, 10 m, N plug to TNC plug |
| CAB-400-5-NJ-UNT | LMR400, 5 m, N jack to unterminated |
Additional information
| Cable | RG58, RG58 Low Loss, RG174, RG213, RG214, RG223, LMR195, LMR240, LMR400 |
|---|---|
| Connectors | N, BNC, TNC, SMA, FME, PL-259 / SO239 |
| Length | Made to order |
