UHF Shrouded Dipole
$728.85 inc GST
The Hi-Tec Aerials PRO-SHDU is a rugged professional UHF shrouded dipole for base stations and repeaters in harsh conditions. The dipole sits in a UV-protected PVC radome on an anodised aluminium boom, and it comes with an end mount clamp ready to fit to a 48 mm tube.
- Four tuned bands: 400–450, 425–475, 450–500 or 495–505 MHz
- 50 MHz bandwidth, 0 dBd (unity gain), 100 W
- Supplied with a 1 m RG213 tail, N plug and end mount clamp
- Add a reflector to make a 2-element shrouded yagi with 3 dB gain
- Customisable: cable type, cable length, connector and mounting
A tough, simple UHF dipole

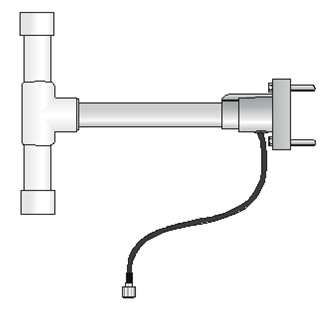

The PRO-SHDU is built for exposed sites. The dipole assembly is housed in a UV-protected PVC radome, and the centre feed exits through a tee onto a 38 mm OD × 3 mm wall anodised aluminium boom, with the RG213 coax run down the centre of the boom for protection. It is supplied with a fitted end mount clamp for a vertical 48 mm OD tube.
Choose your band
Select the band that covers your channels: 400–450, 425–475, 450–500 or 495–505 MHz. Each has a 50 MHz bandwidth.
Standard build and customisation
As standard, each dipole has a 1 m RG213 tail with an N plug and an end mount clamp. You can customise the cable type and cable length (see coax cable), the connector (N jack or BNC plug, see connectors) and the mounting. A reflector element can be added to make a 2-element shrouded yagi with 3 dB gain. Contact us for a quote on a custom configuration.
Need gain in a dipole package? See the 3 dB shrouded dipole side mount, stacked shrouded dipole arrays or UHF collinears. Signals NZ and Hi-Tec Aerials supply, install and service radio sites across New Zealand, and fit lightning protection.
Specifications
| Model | PRO-SHDU |
| Frequency range | 400–505 MHz (four bands) |
| Bandwidth | 50 MHz |
| Gain | 0 dBd |
| Impedance | 50 Ω |
| Return loss / VSWR | < −14 dB / 1.5:1 |
| Maximum power | 100 W |
| Cable (standard) | RG213, 1 m, N plug |
| Radome | 32 mm diameter × 400 mm |
| Boom | 400 mm, 38 mm OD anodised aluminium |
| Projected area | 0.034 m² |
| Wind loading at 150 km/h | 35 N |
| Mounting | End mount clamp for 48 mm OD tube |
| Weight | 2 kg |
Additional information
| Weight | 2 kg |
|---|---|
| Brand | Hi-Tec |
| Band | UHF |
| Frequency Band | 400–450 MHz, 425–475 MHz, 450–500 MHz, 495–505 MHz |
| Standard Build | RG213 1 m tail, N plug, end mount clamp |
| Customisable | Cable type, cable length, connector, mounting |
