Vehicle Aerial Brackets
Price range: $10.47 through $32.36 inc GST
Hi-Tec Aerials vehicle aerial brackets are made in New Zealand from grade 304 stainless steel, with black powder-coated versions for some models. They give a solid, drill-once mount for 1/4 wave and 1/2 wave mobile aerials and stud mounts on utes, trucks, buses and utility vehicles.
- Right angle, side mount, Z, fascia, boot, flat and utility brackets
- Vehicle-specific brackets for the Toyota Hilux and Ford Ranger
- Sizes for 38 mm and 50 mm aerial bases
- SOB versions have a 16 mm top hole
- Stainless or black finish, left- or right-hand where needed
The right bracket for every vehicle
A good bracket puts the aerial where it works best: clear of the cab and roof racks, with a solid ground connection to the body. Hi-Tec Aerials brackets are made in New Zealand from grade 304 stainless steel, so they won't rust. Black powder-coated versions are available for a factory look on dark vehicles.
How to choose
- Bracket style: right angle for guards and tray edges, side mount for vertical panels, Z for stepped mounting, fascia for bonnet and bullbar fascias, boot for boot lids, flat for flat surfaces, and utility brackets for service bodies. Vehicle-specific brackets suit the Toyota Hilux (pre-2016 and 2016+) and Ford Ranger (standard and 2023+).
- Aerial type: 1/4 wave brackets for 1/4 wave whips, or 1/2 wave & stud brackets for 1/2 wave aerials and stud mounts.
- Base size: 38 mm or 50 mm, to match your aerial base.
- Version: stainless or black, SOB (16 mm top hole) where you need it, and left- or right-hand for vehicle-specific brackets. Right angle and fascia brackets are also available in heavier 2.5 mm and 3 mm stainless.
Not sure which one fits? Tell us the vehicle and aerial and we'll pick the right bracket. For temporary installs, see the whip aerial magnetic mount. For fixed sites, see our mounting clamps.
Fitted by Signals NZ
Our technicians fit aerials and brackets with every two-way radio, UHF CB and GPS tracking install, so the vehicle is only off the road once. See our installation and service options.
Models
All brackets are grade 304 stainless steel, and some come in a black powder-coated version. SOB = 16 mm top hole.
| Bracket | Models (version) |
|---|---|

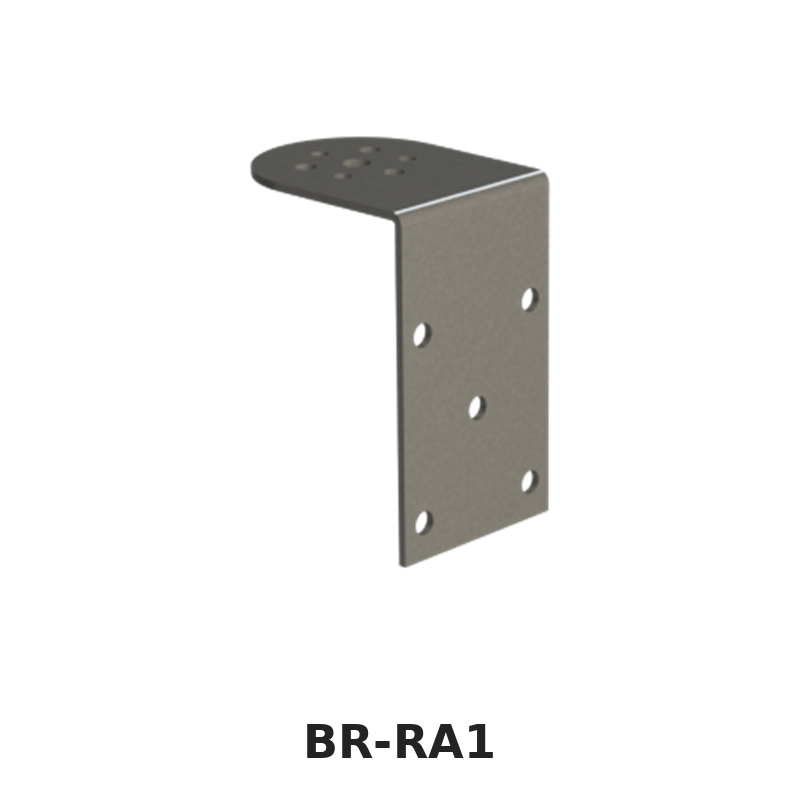

| Right Angle, 1/4 wave, 38 mm base | BR-RA1/4-38 (Stainless) BR-RA1/4-38-BLK (Black) |

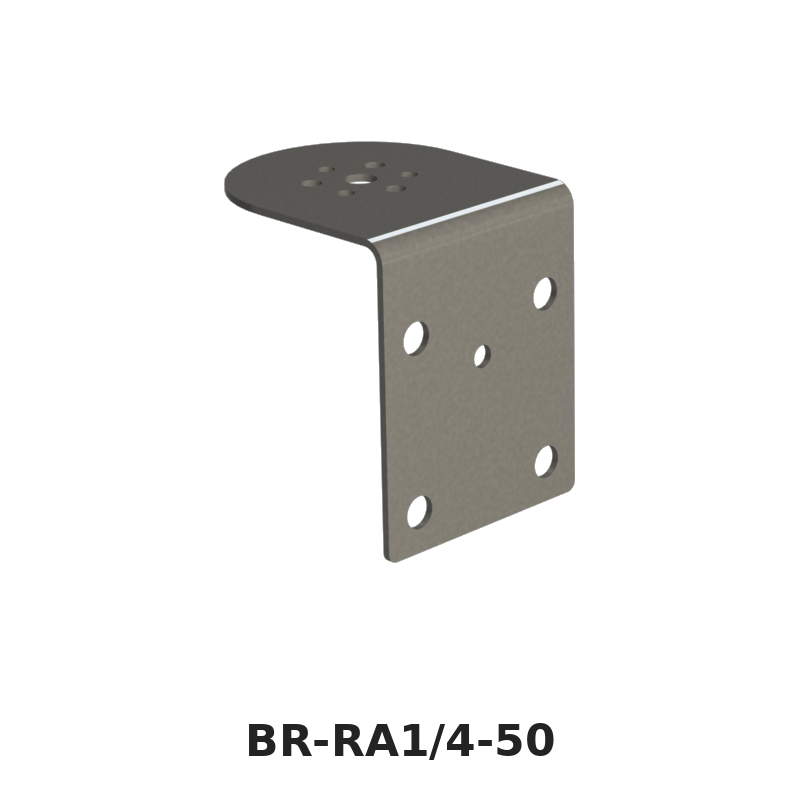

| Right Angle, 1/4 wave, 50 mm base | BR-RA1/4-50 (Stainless) BR-RA1/4-50-BLK (Black) |

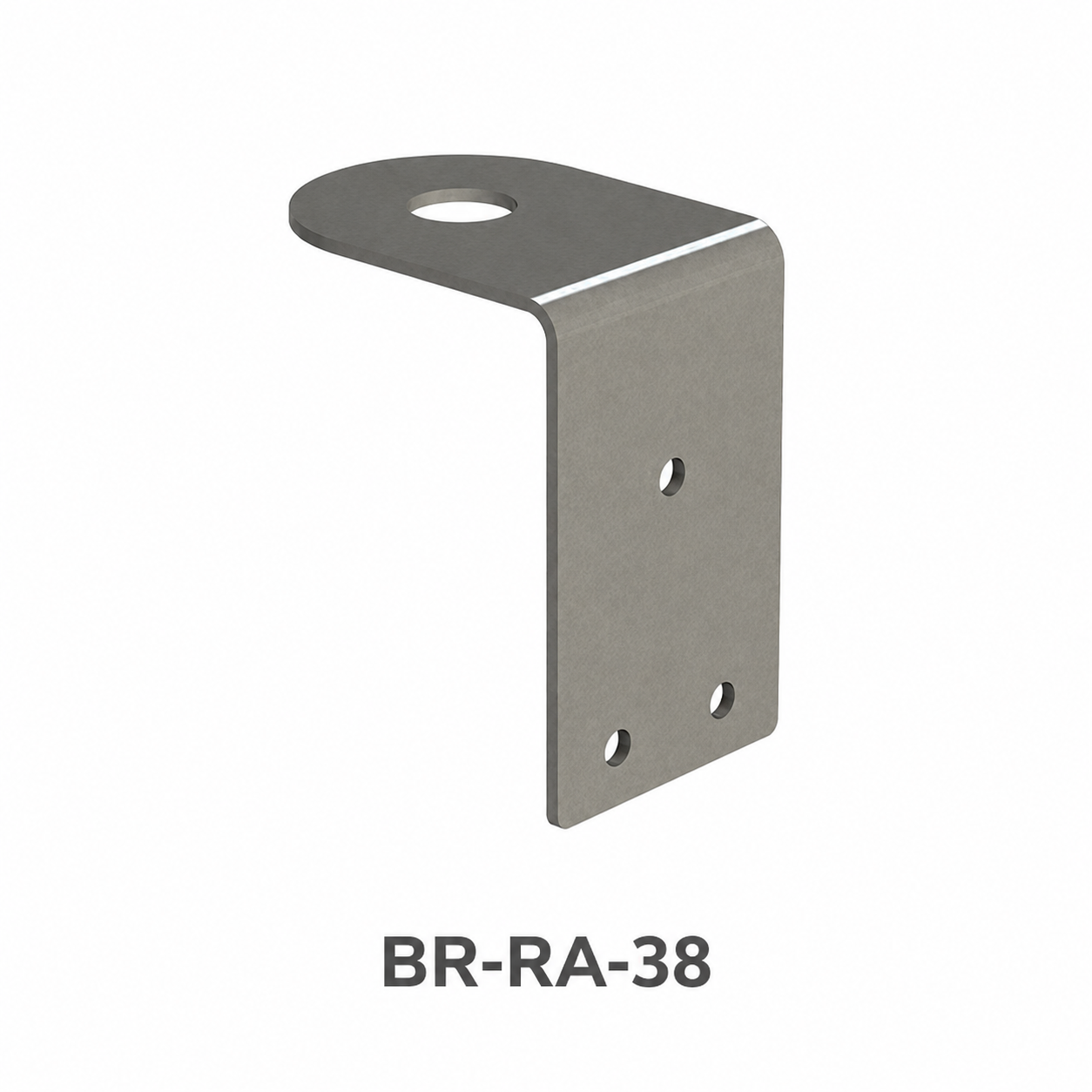

| Right Angle, 1/2 wave & stud, 38 mm base | BR-RA-38 (Stainless) BR-RA-38-SOB (Stainless SOB) BR-RA-38-BLK (Black) BR-RA-38-SOB-BLK (Black SOB) |

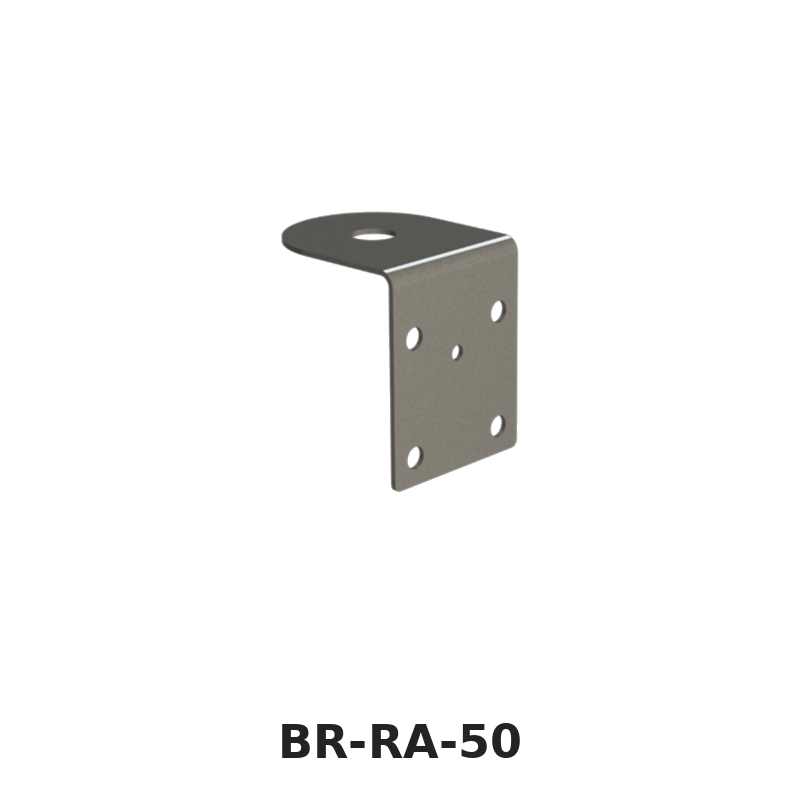

| Right Angle, 1/2 wave & stud, 50 mm base | BR-RA-50 (Stainless) BR-RA-50-SOB (Stainless SOB) BR-RA-50-BLK (Black) BR-RA-50-SOB-BLK (Black SOB) BR-RA-50-MD (Stainless 2.5 mm) BR-RA-50-HD (Stainless 3 mm) |

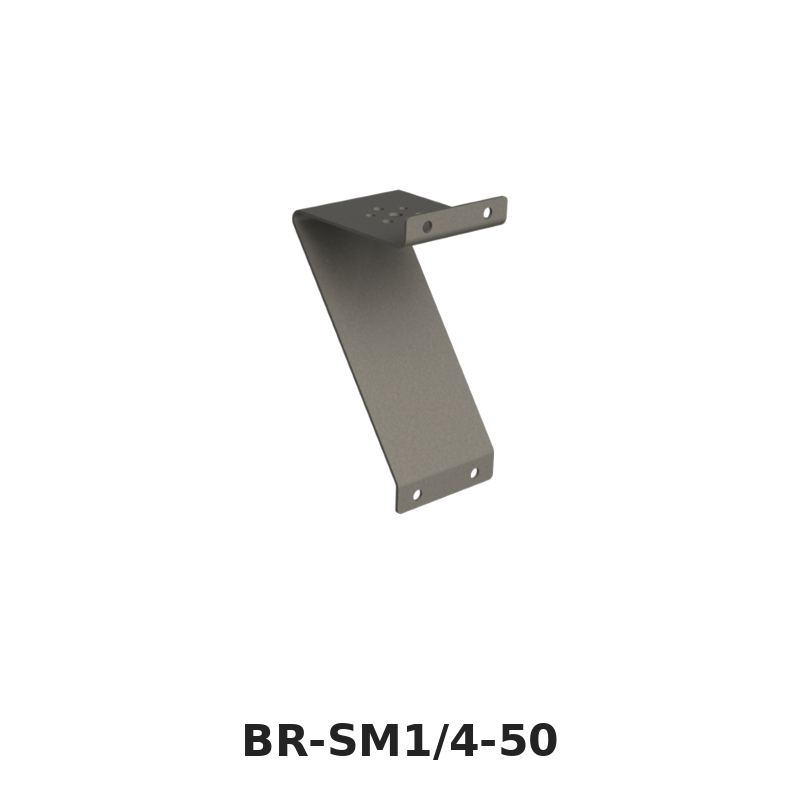

| Side Mount, 1/4 wave, 50 mm base | BR-SM1/4-50 (Stainless) |

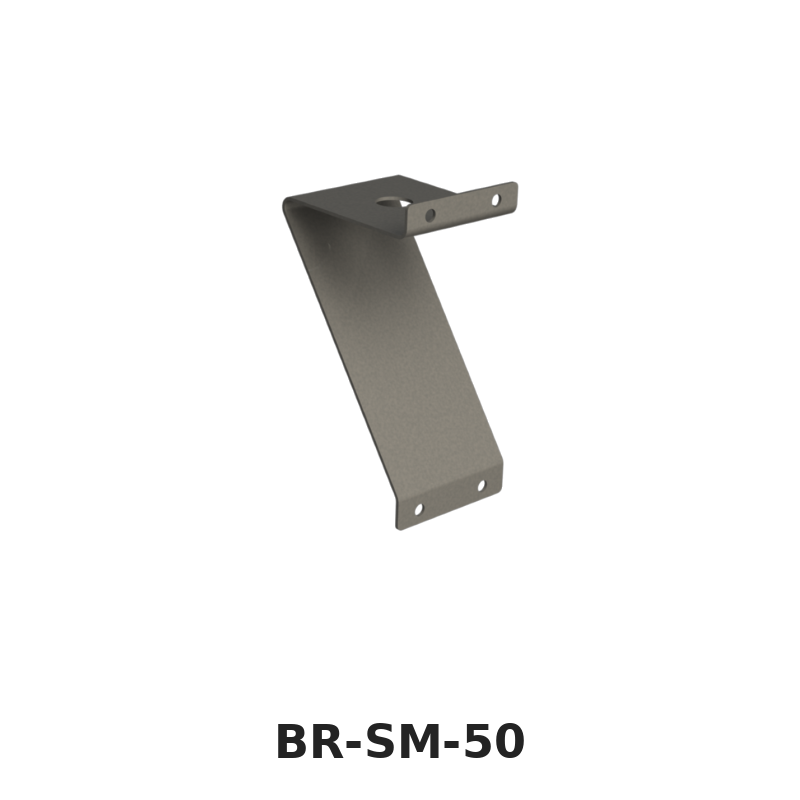

| Side Mount, 1/2 wave & stud, 50 mm base | BR-SM-50 (Stainless) BR-SM-50-SOB (Stainless SOB) |

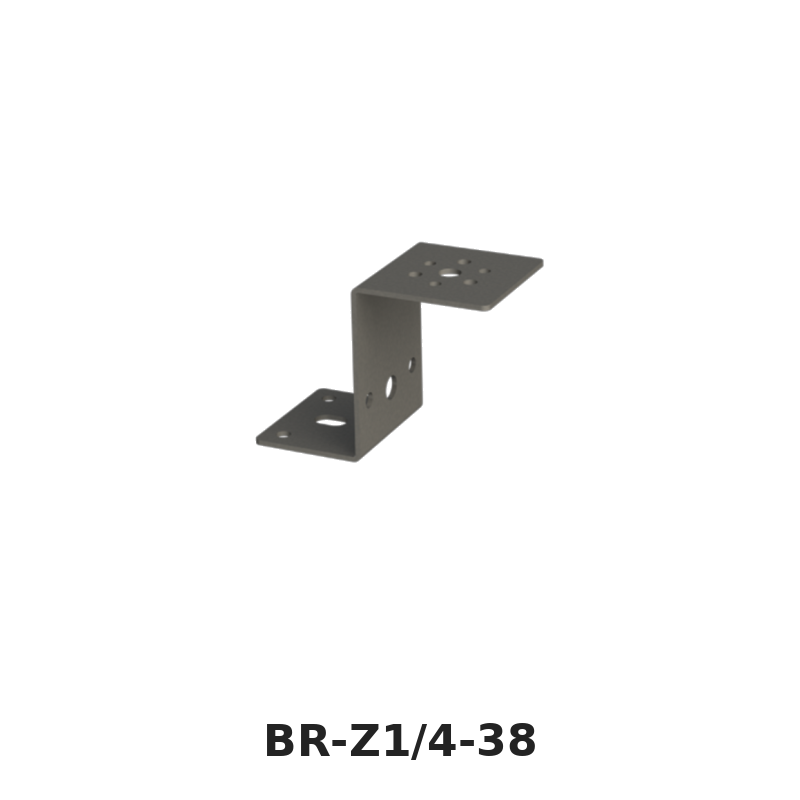

| Z Bracket, 1/4 wave, 38 mm base | BR-Z1/4-38 (Stainless) |

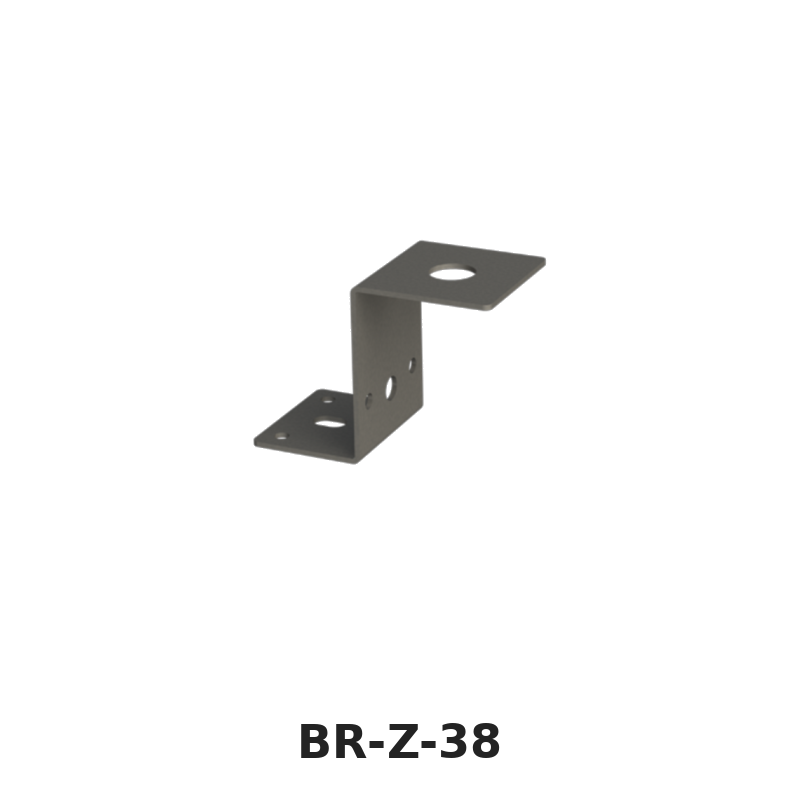

| Z Bracket, 1/2 wave & stud, 38 mm base | BR-Z-38 (Stainless) BR-Z-38-SOB (Stainless SOB) |

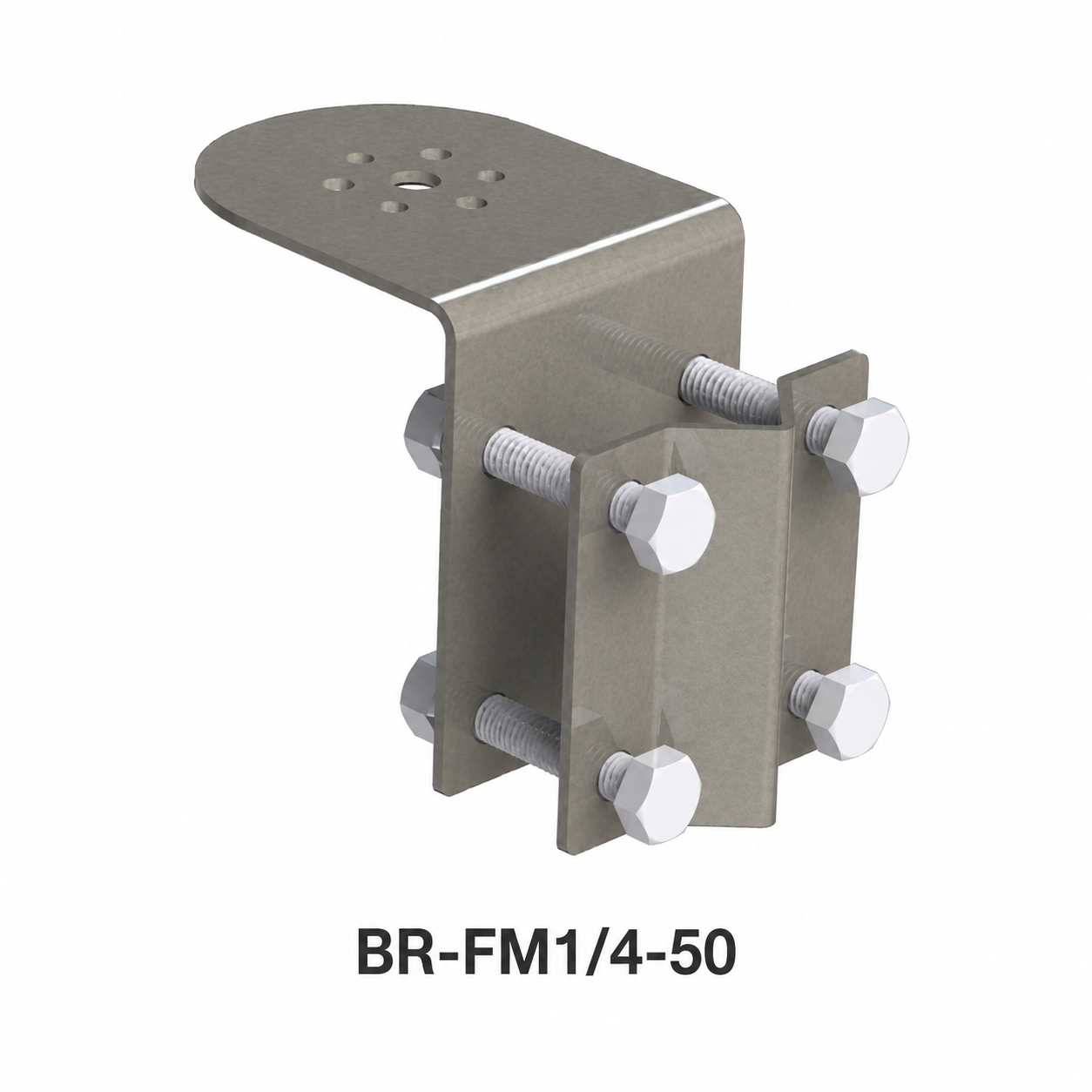

| Fascia Mount, 1/4 wave, 50 mm base | BR-FM1/4-50 (Stainless) |

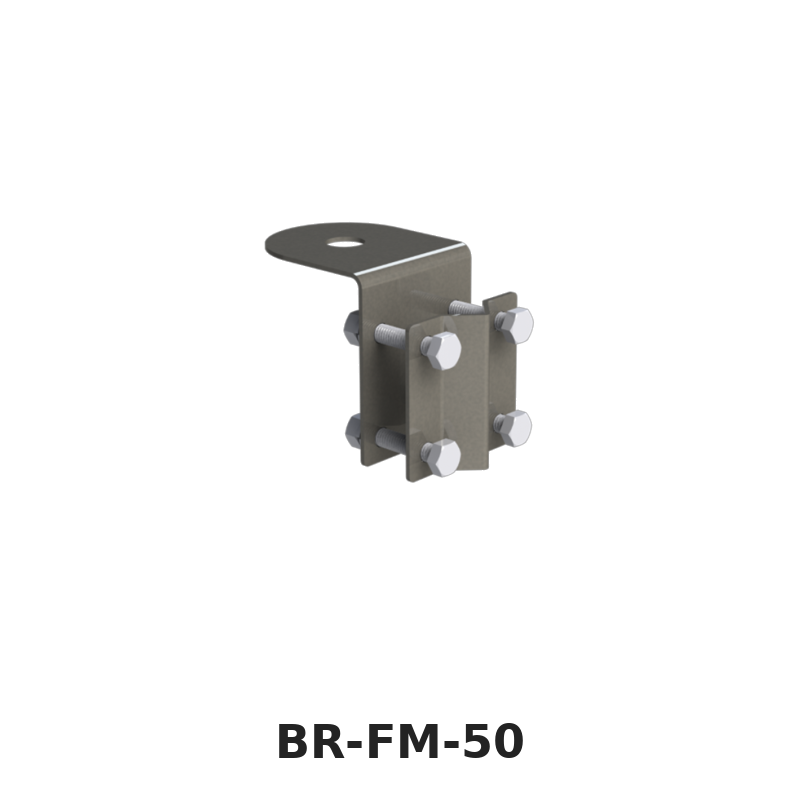

| Fascia Mount, 1/2 wave & stud, 50 mm base | BR-FM-50 (Stainless) BR-FM-50-SOB (Stainless SOB) BR-FM-50-MD (Stainless 2.5 mm) |

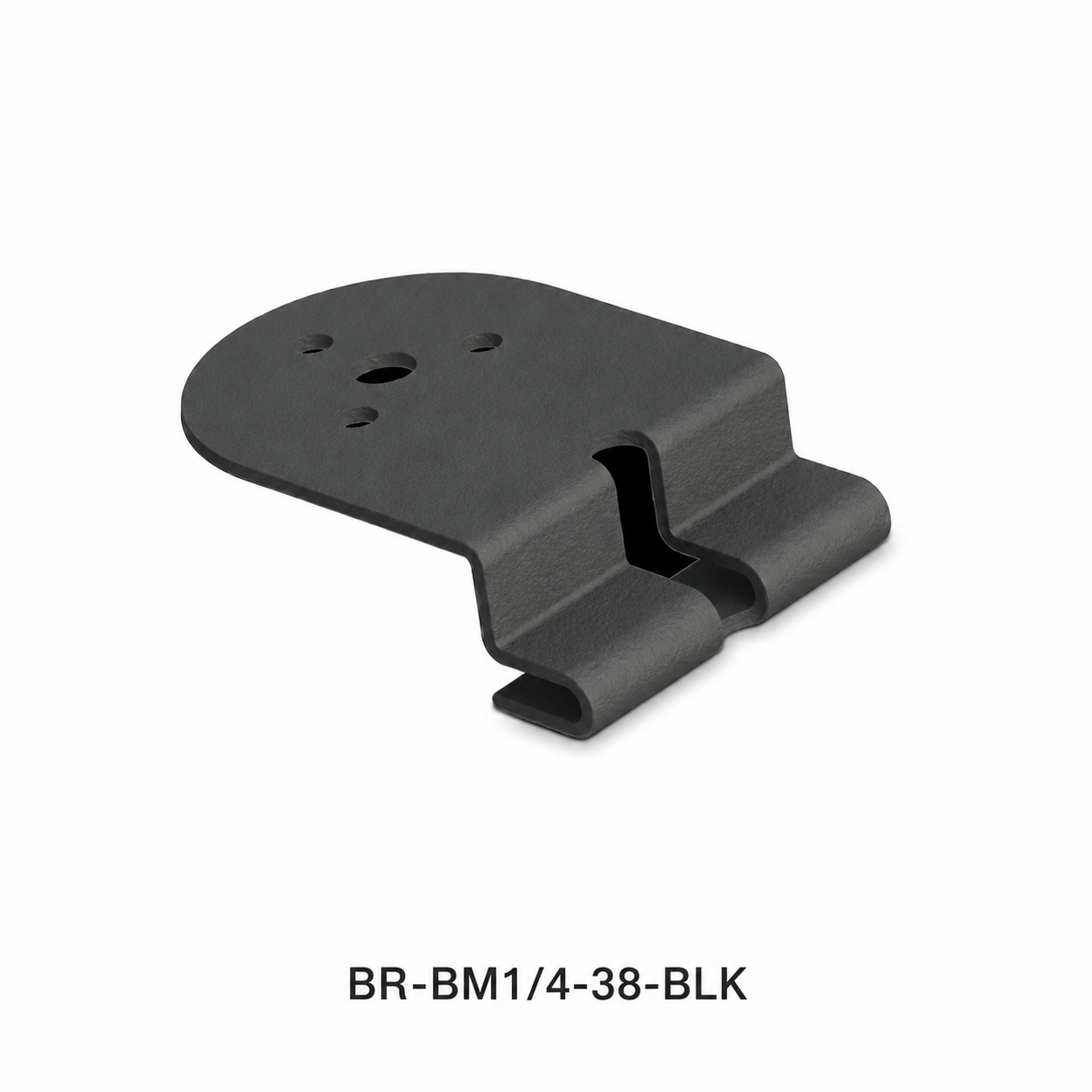

| Boot Mount, 1/4 wave, 38 mm base | BR-BM1/4-38-BLK (Black) |

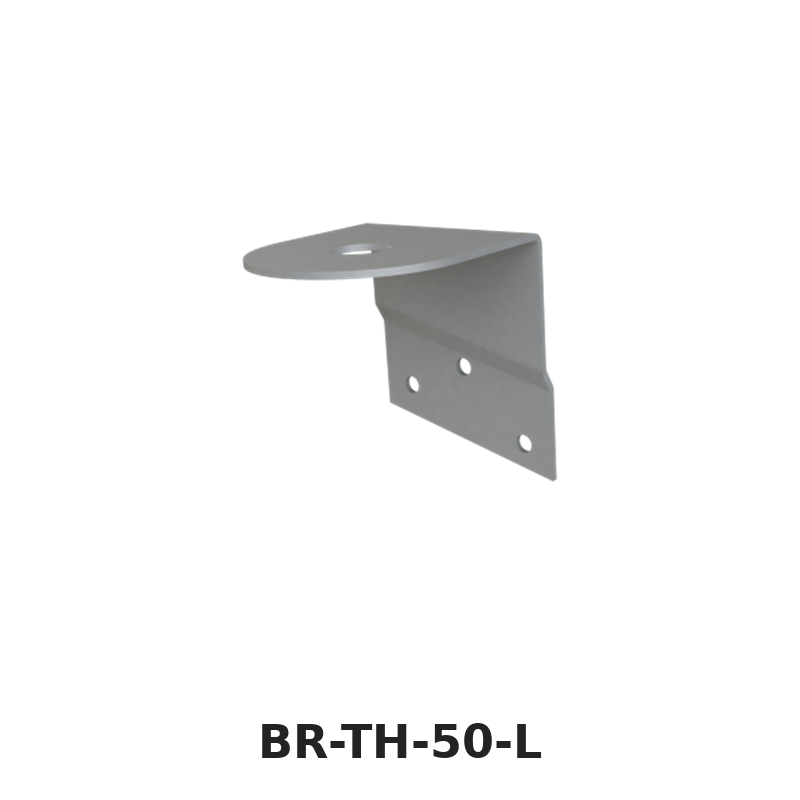

| Toyota Hilux (pre-2016), 1/2 wave & stud, 50 mm base | BR-TH-50-L (Left) BR-TH-50-L-SOB (Left SOB) BR-TH-50-R (Right) BR-TH-50-R-SOB (Right SOB) |

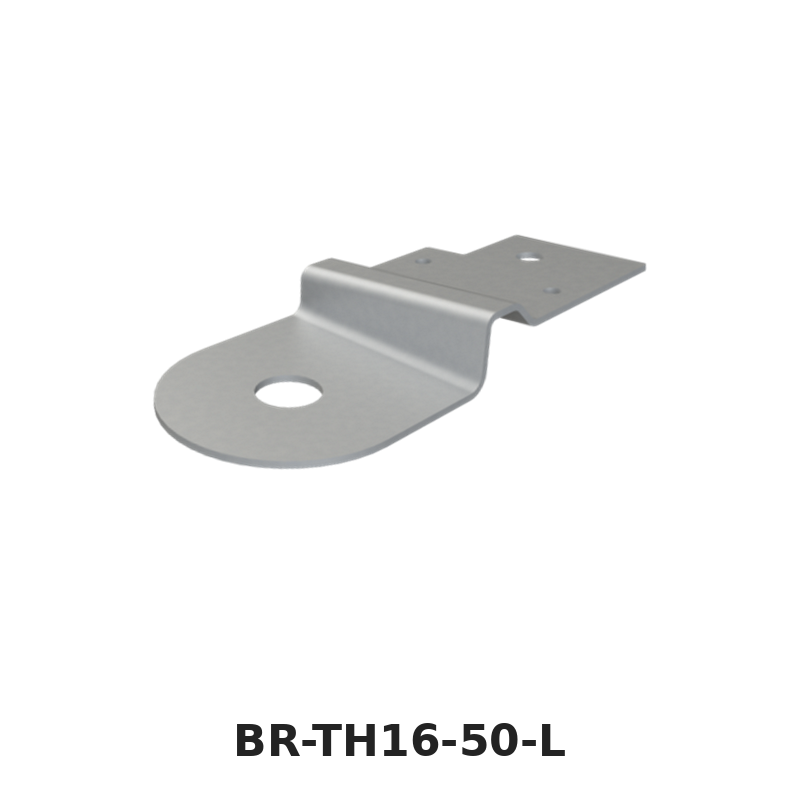

| Toyota Hilux (2016+), 1/2 wave & stud, 50 mm base | BR-TH16-50-L (Left) BR-TH16-50-L-SOB (Left SOB) BR-TH16-50-L-BLK (Left Black) BR-TH16-50-R (Right) BR-TH16-50-R-SOB (Right SOB) |

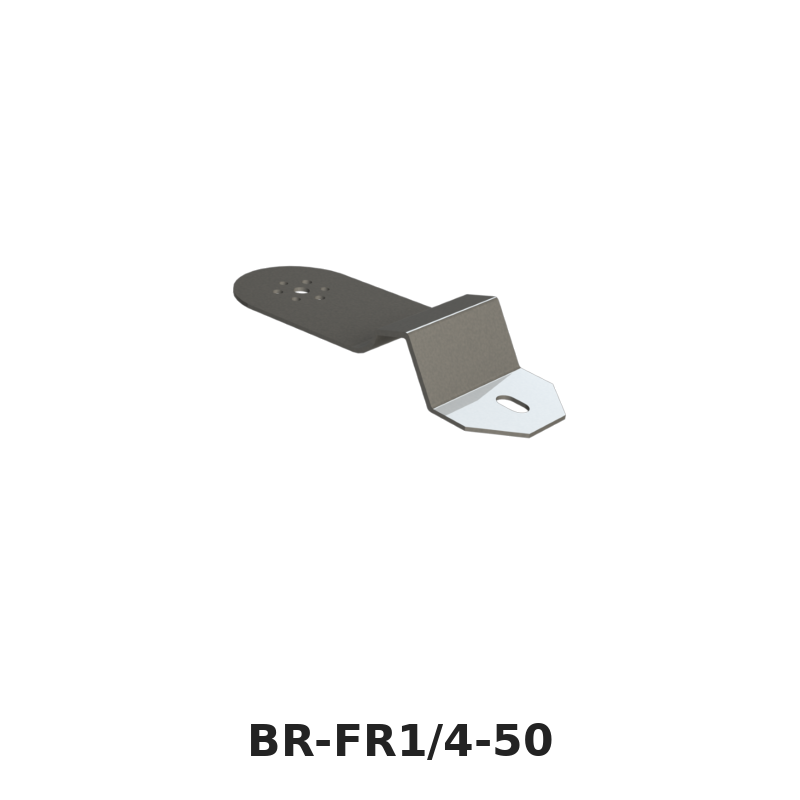

| Ford Ranger, 1/4 wave, 50 mm base | BR-FR1/4-50 (Stainless) |

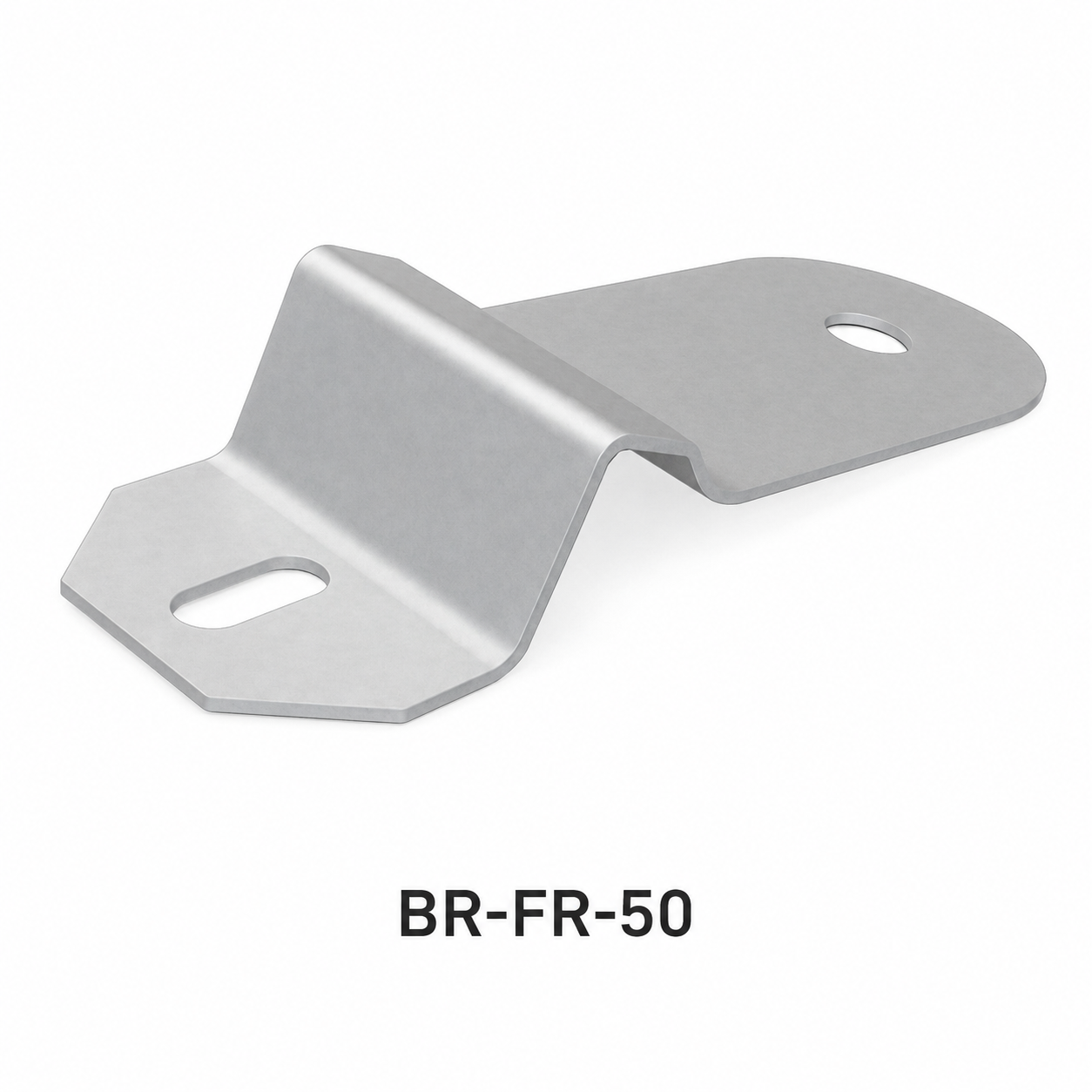

| Ford Ranger, 1/2 wave & stud, 50 mm base | BR-FR-50 (Stainless) BR-FR-50-SOB (Stainless SOB) |

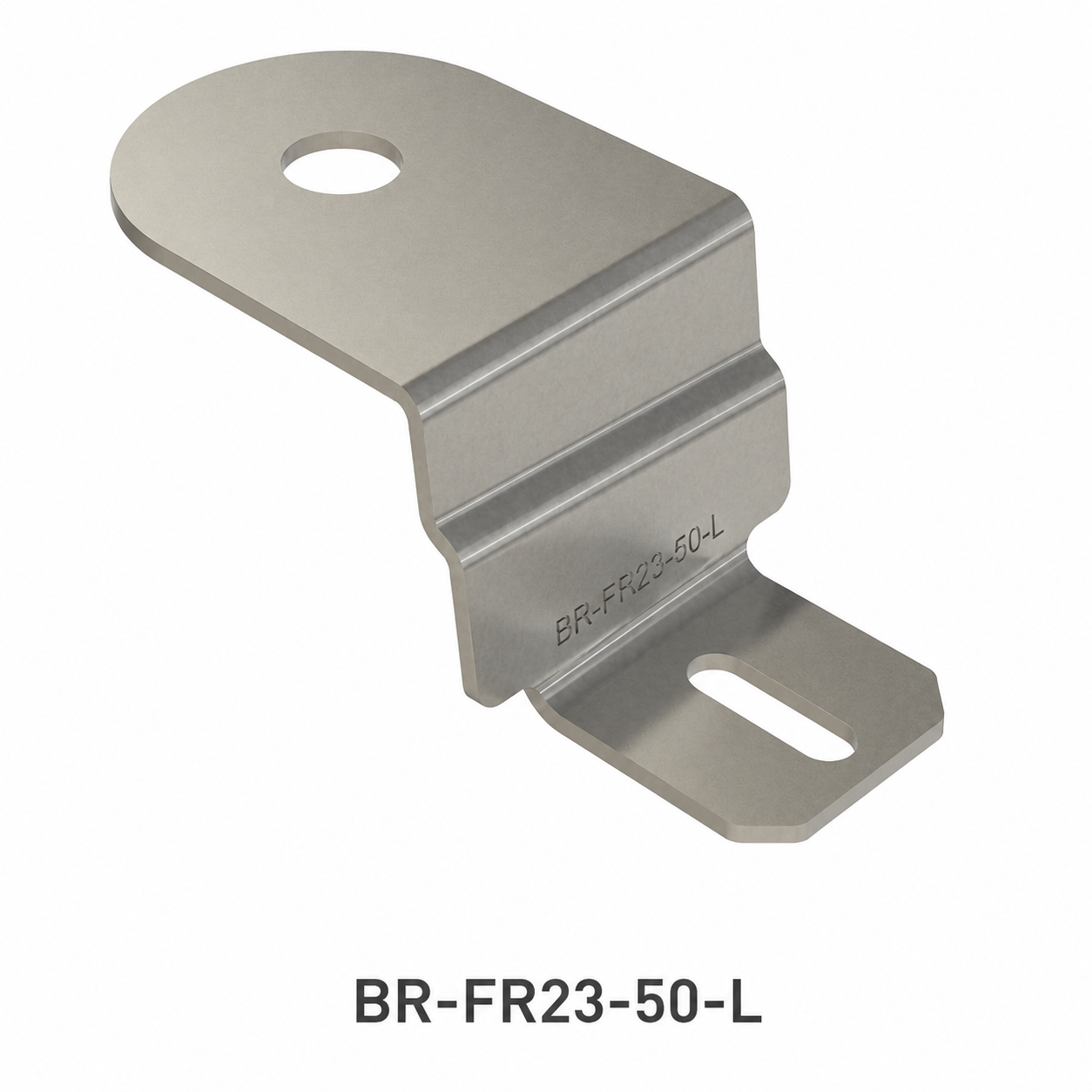

| Ford Ranger (2023+), 1/2 wave & stud, 50 mm base | BR-FR23-50-L (Left) BR-FR23-50-L-SOB (Left SOB) BR-FR23-50-L-BLK (Left Black) BR-FR23-50-R (Right) BR-FR23-50-R-SOB (Right SOB) |

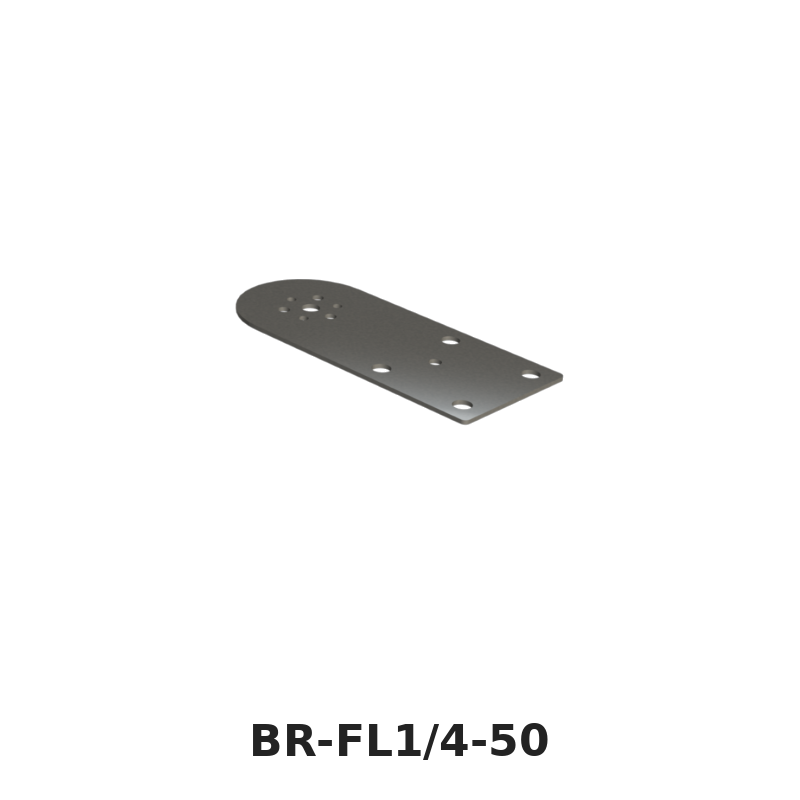

| Flat Bracket, 1/4 wave, 50 mm base | BR-FL1/4-50 (Stainless) |

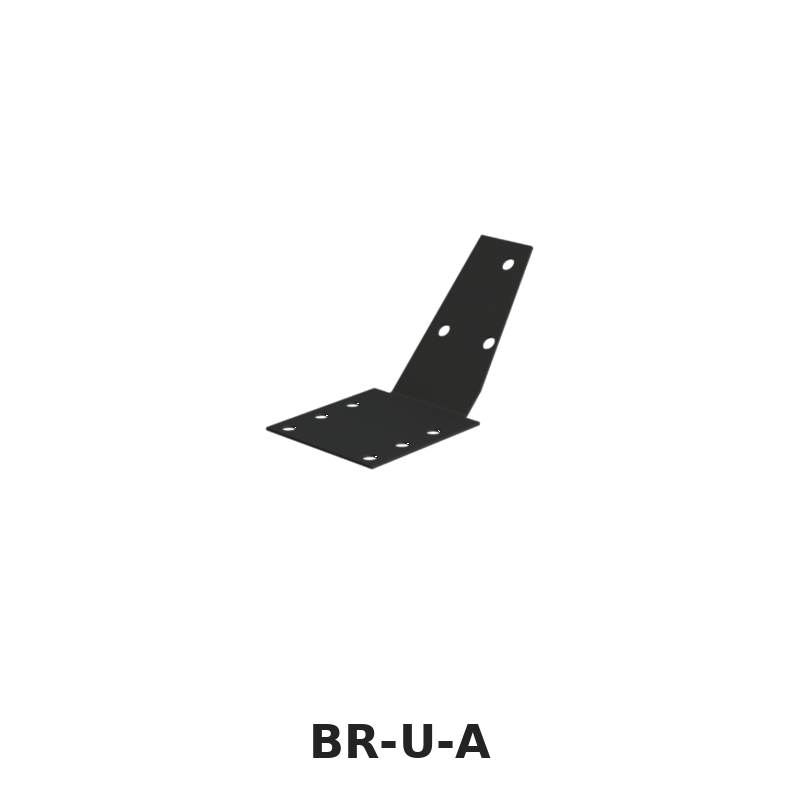

| Utility Angle | BR-U-A (Black) |

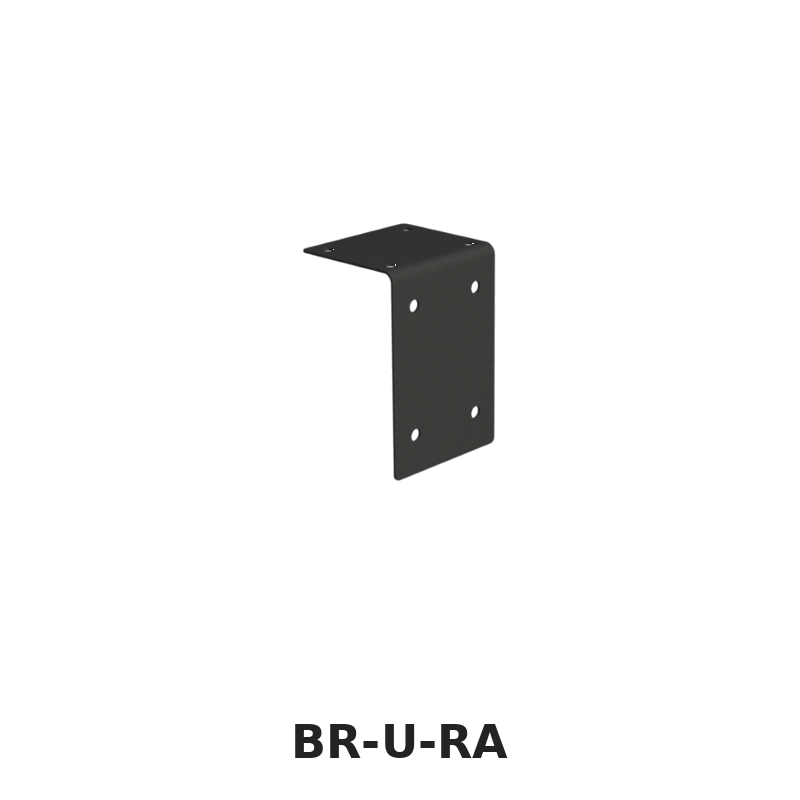

| Utility Right Angle | BR-U-RA (Black) |
Additional information
| Brand | Hi-Tec |
|---|---|
| Bracket | Right Angle, 1/4 wave, 38 mm base, Right Angle, 1/4 wave, 50 mm base, Right Angle, 1/2 wave & stud, 38 mm base, Right Angle, 1/2 wave & stud, 50 mm base, Side Mount, 1/4 wave, 50 mm base, Side Mount, 1/2 wave & stud, 50 mm base, Z Bracket, 1/4 wave, 38 mm base, Z Bracket, 1/2 wave & stud, 38 mm base, Fascia Mount, 1/4 wave, 50 mm base, Fascia Mount, 1/2 wave & stud, 50 mm base, Boot Mount, 1/4 wave, 38 mm base, Toyota Hilux (pre-2016), 1/2 wave & stud, 50 mm base, Toyota Hilux (2016+), 1/2 wave & stud, 50 mm base, Ford Ranger, 1/4 wave, 50 mm base, Ford Ranger, 1/2 wave & stud, 50 mm base, Ford Ranger (2023+), 1/2 wave & stud, 50 mm base, Flat Bracket, 1/4 wave, 50 mm base, Utility Angle, Utility Right Angle |
| Version | Stainless, Black, Stainless SOB, Black SOB, Stainless 2.5 mm, Stainless 3 mm, Left, Left SOB, Right, Right SOB, Left Black |
| Material | Grade 304 stainless steel (black powder coat on BLK models) |
