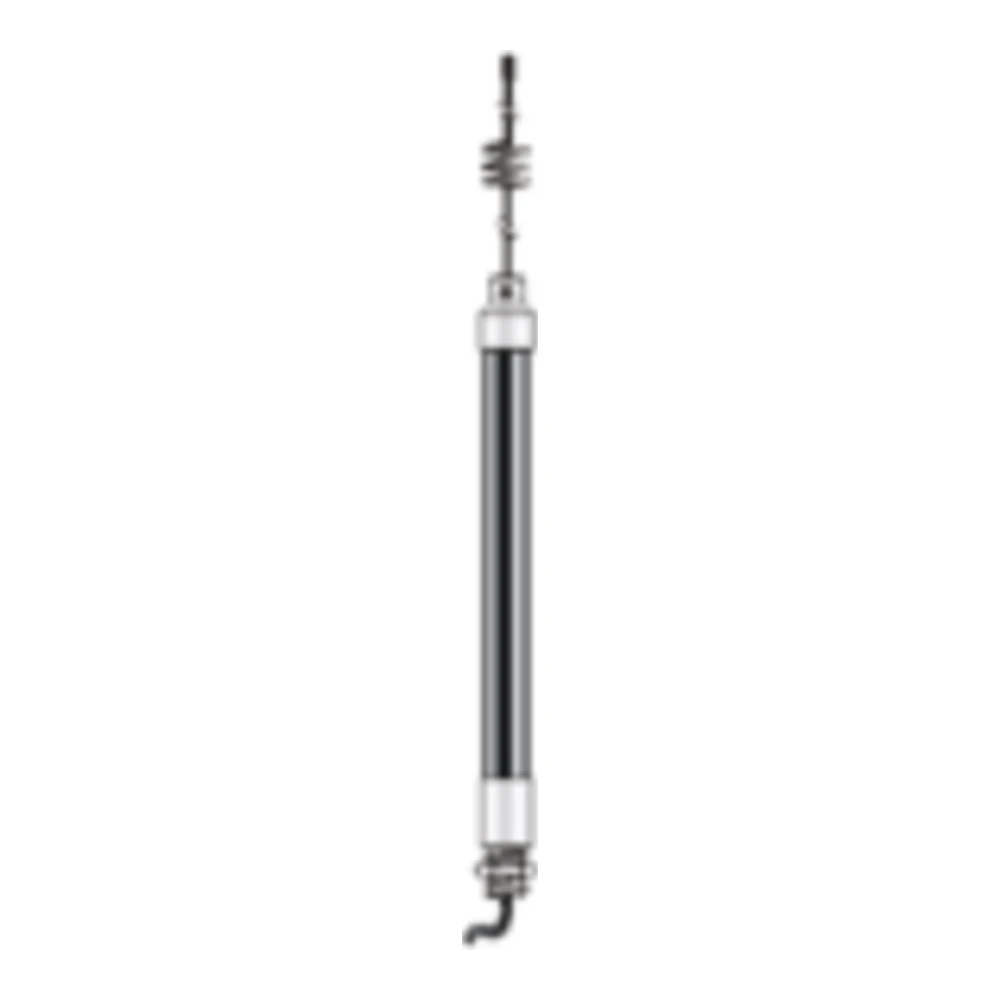

Coaxial 1/2w Aerial for 700-1000MHz
Price on application
Coaxial 1/2 wave aerials deliver reliable high-performance coverage across the 700–1000 MHz bands. Designed to operate without a ground plane, they can be conveniently mounted on vehicles or base station sites. Featuring a stainless steel collinear radiator with black epoxy finish, slim fibreglass matching section, low-loss cable, and durable nickel-plated brass fittings, these aerials provide 3dB gain as standard, with a 6dB option available on request. A range of mounting brackets is also available.
Coaxial 1/2w aerials provide high performance in the 700-1000 MHz bands. A range of models are available across this frequency range.
Like our heavy duty 1/2w and mini 1/2w models, the coaxial 1/2w aerial operates without the need for a ground plane. This feature allows them to be mounted in a convenient position on a vehicle or base station site.
The radiator is a stainless steel collinear element finished in black epoxy, giving 3dB gain. The coaxial matching section is housed inside a slim fibreglass tube which is capped with nickel plated brass fittings. The aerial is fitted with low loss cable as standard, which enters through the 12mm mounting stud.
A 6dB element is available on request (WCELCOL6).
A range of brackets is available for mounting.
A colour coding band for model identification is fitted to the coax cable at the mounting stud.
| Model | CX-700 | CX-800 | CX-825 | CX-900 |
| Frequency Range (MHz) | 700-750 | 800-850 | 825-875 | 890-940 |
| Bandwidth (MHz) | 50 | |||
| Gain (dBd) | 3 | |||
| Cable Type | RG58 Low Loss | |||
| Colour Code | Green | Red | Yellow | Blue |
Additional information
| Brand | Hi-Tec |
|---|---|
| Band | Cellular |
