Mini 1/2w VHF Aerials
Price range: $131.86 through $167.12 inc GST
The Hi-Tec Aerials mini 1/2 wave VHF aerial has a very small profile for modern vehicles and needs no ground plane, so it can be mounted almost anywhere, including non-metallic surfaces. Made in New Zealand.
- 138–144 and 150–170 MHz models, plus a 146–178 MHz wideband
- End-fed half-wave design, no ground plane needed
- Compact 80 mm nickel-plated brass base, 12 mm stud mount
- Choose a 5 m RG58 tail (unterminated) or a PL259 base
- Customisable: cable type and length, connector, bracket, base only
A compact VHF aerial for modern vehicles
Hi-Tec Aerials mini half-wave aerials have a very small profile, ideal for modern vehicles. The end-fed design removes the need for a ground plane, so the aerial can be mounted in any position on a vehicle and suits non-metallic surfaces. Raising the mounting point to clear body panels can further improve performance.
The base is 80 mm tall and 16 mm in diameter, made from nickel-plated brass with a black fibreglass centre section housing the impedance matching circuit. It mounts on its 12 mm stud or onto a stainless steel vehicle aerial bracket. Each aerial is stamped with its model on the base for identification.
The radiating element is a 2.7 mm stainless steel whip. If further tuning is needed, insert a reflected power meter in the feed line and trim the element for minimum reflected power.
Models
Choose a model with a 5 m RG58 tail (unterminated, no bracket) for a permanent install, or a PL259 base to screw onto an existing mount. The M1/2WB-V wideband covers 146–178 MHz with no tuning, on a PL259 base.
You can change to RG58 low-loss or RG174 cable, change the cable length, add a bracket or connector (see connectors), or order the base only with no whip. Contact us for a custom configuration.
| Model | Description | Frequency | Bandwidth at −14 dB |
| M1/2ESB-58-5-W09-UNT-NB | RG58 5 m, W09 whip, unterminated, no bracket | 138–144 MHz | 4 MHz |

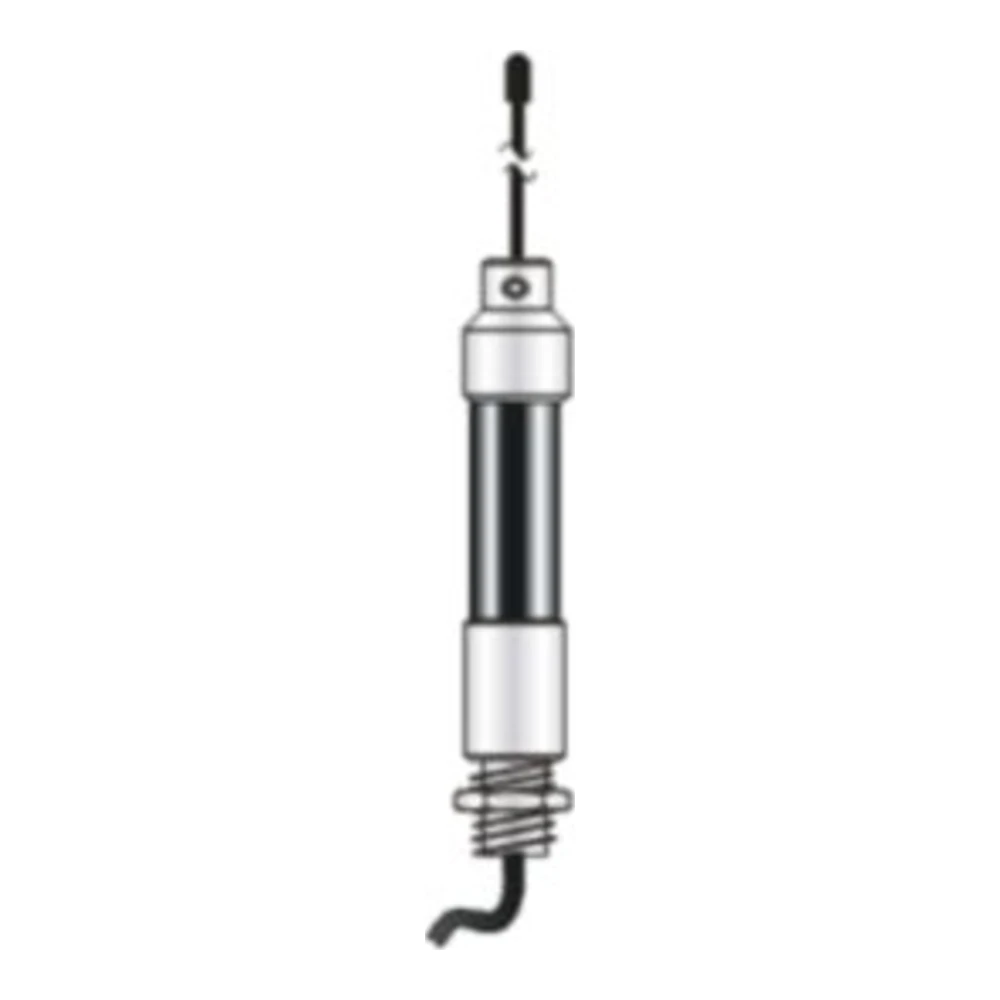

| M1/2V-58-5-W09-UNT-NB | RG58 5 m, W09 whip, unterminated, no bracket | 150–170 MHz | 4 MHz |

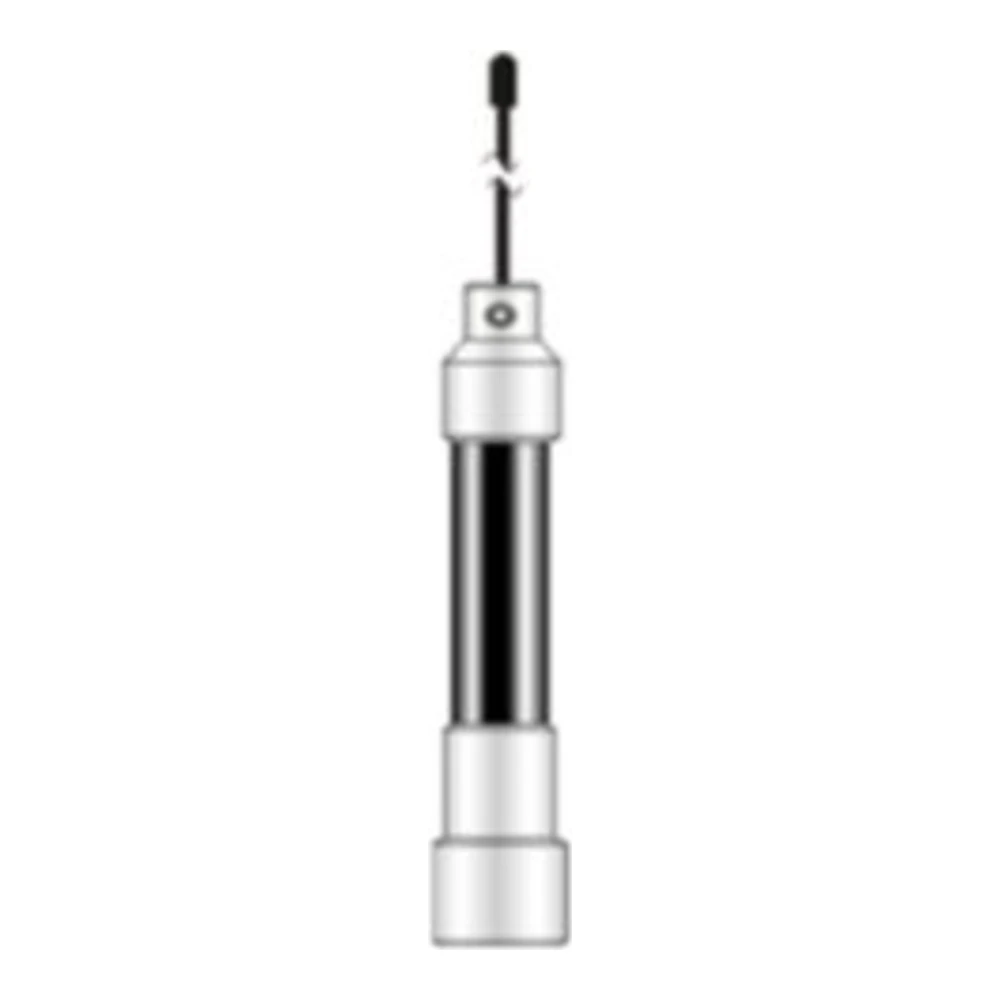

| M1/2V-PL259-150-170-SL | On PL259 base, silver | 150–170 MHz | 15 MHz |

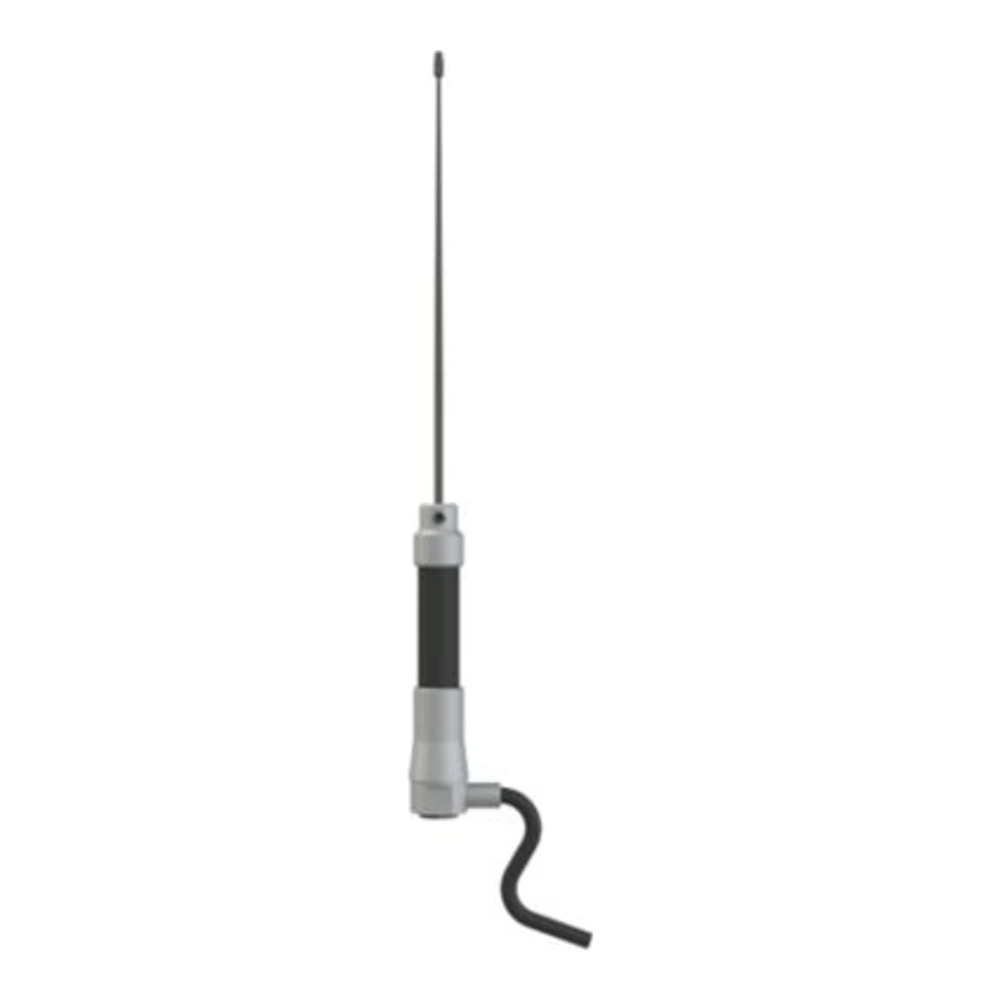

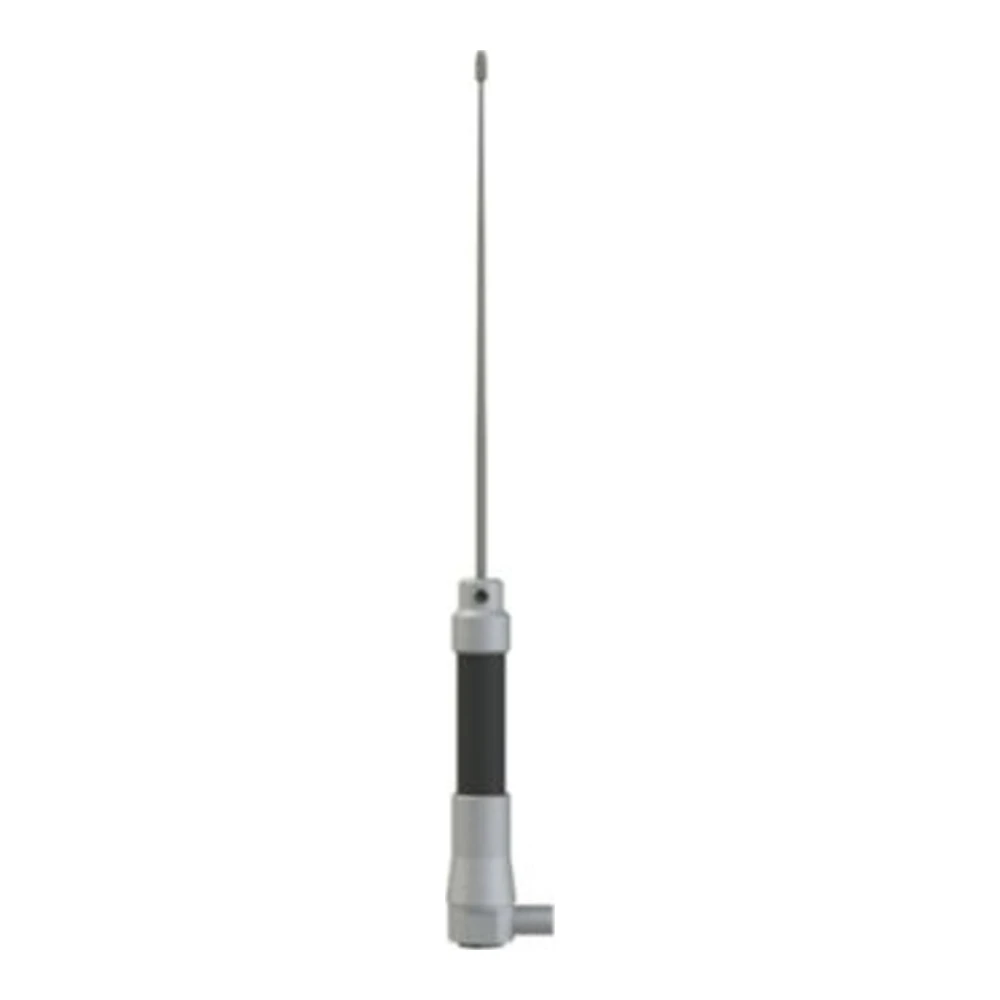

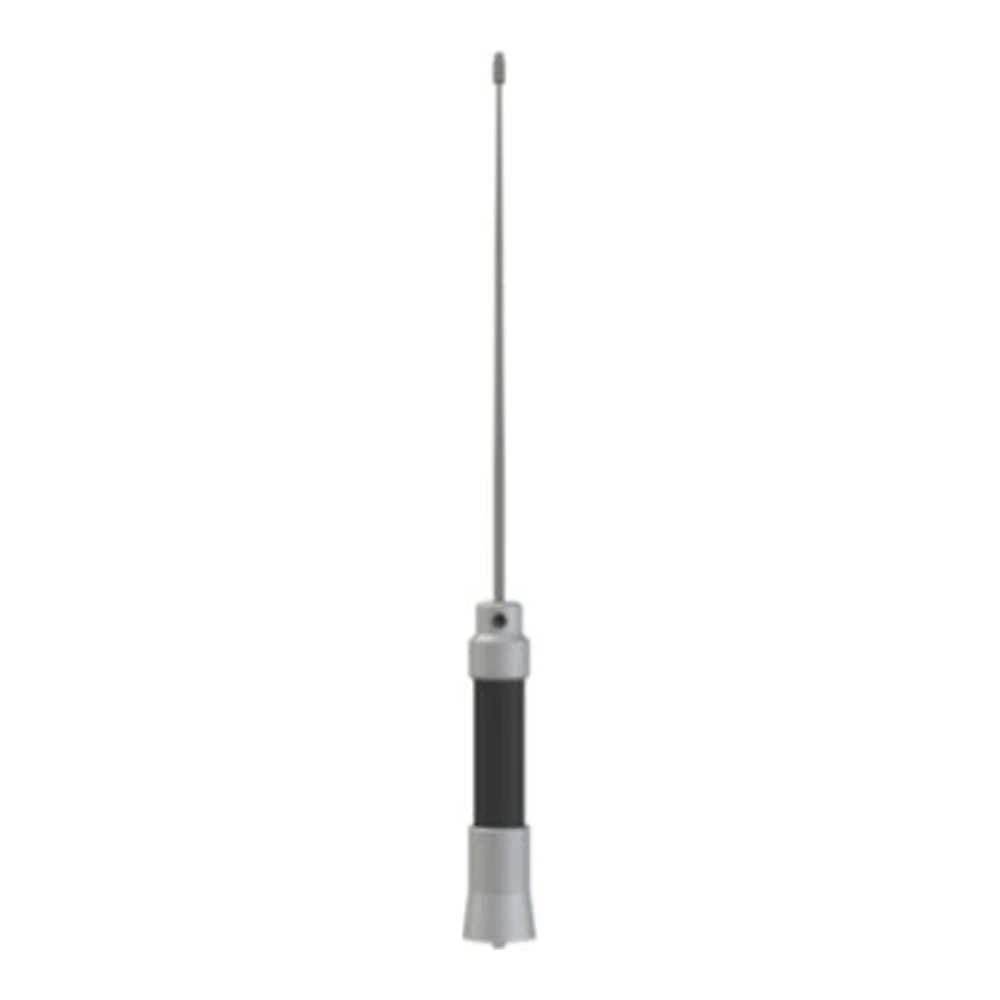

| M1/2WB-V | Wideband, PL259 base connector | 146–178 MHz (110–185 MHz at VSWR <1.8:1) | 32 MHz |
Specifications
| Type | Mini end-fed 1/2 wave vehicle aerial |
| Ground plane | Not required |
| Base | 80 mm high, 16 mm diameter, nickel-plated brass with fibreglass centre |
| Mounting | 12 mm stud or stainless steel bracket |
| Whip | 2.7 mm stainless steel |
| Impedance | 50 Ω |
| M1/2WB-V max power | 50 W |
| M1/2WB-V overall height | 740 mm |
For a heavier-duty option, see our heavy duty 1/2 wave aerials.
Additional information
| Brand | Hi-Tec |
|---|---|
| Band | VHF |
| Model | M1/2V 150–170 MHz, RG58 5 m tail, M1/2ESB 138–144 MHz, RG58 5 m tail, M1/2V 150–170 MHz, PL259 base, M1/2WB-V wideband 146–178 MHz, PL259 base |
| Customisable | Cable type and length, connector, bracket, base only (no whip) |
