Cellular Yagis
Price range: $295.92 through $477.37 inc GST
Hi-Tec Aerials cellular yagis improve cellular coverage for subscribers in remote or poorly served areas, for routers, phones and push-to-talk over cellular. Rugged aluminium construction, made in New Zealand.
- 4, 6, 10 and 15 element models, 6 to 13 dBd gain
- 700–750 MHz (LTE band 28) and 920–930 MHz models
- 15 dB front-to-back ratio, 50 W
- Aluminium channel boom, encapsulated driven element and feed
- Supplied with a 1 m RG58LL tail and N plug, no clamp
- Customisable: cable length, connector, mounting clamp
Better cellular coverage in remote areas
Hi-Tec Aerials cellular yagis are designed to improve performance for cellular subscribers in remote or poorly served areas, pointing at the nearest tower to lift signal for routers, phones, telemetry and push-to-talk over cellular.

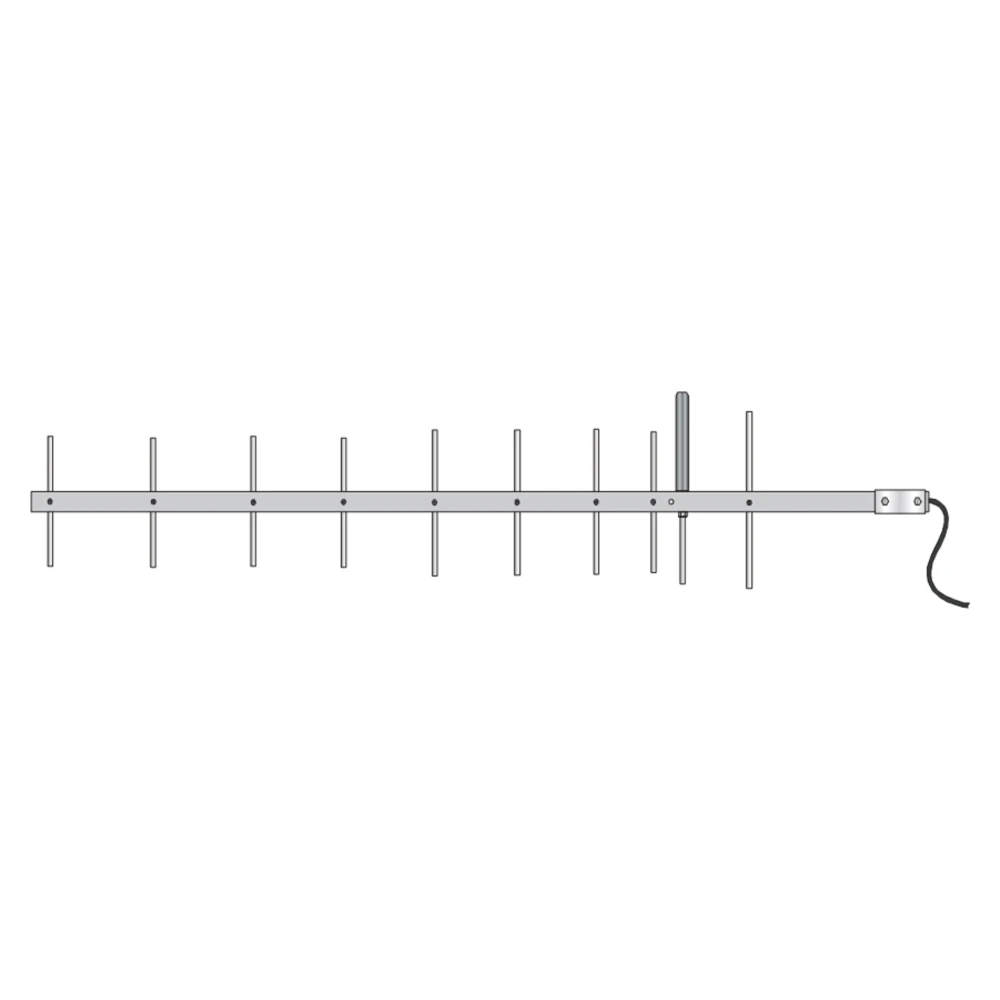

The design uses a strong aluminium channel boom with an encapsulated driven element and feed system. All parasitic elements are solid 6.35 mm aluminium rod, hardware is stainless steel, and the cast aluminium mounting clamp fits a standard fascia mount.
Ordering
Choose the model and band. Please tell us your network provider when ordering, as some cellular services now use higher frequency bands. As standard each yagi comes with a 1 m RG58LL tail and an N plug, with no clamp. You can change the cable length, choose an N jack, BNC plug or unterminated tail, or add a mounting clamp. The Y6C is available in 920–930 MHz only; other combinations are available on request. Contact us for help choosing. For omnidirectional coverage, see our cellular shrouded dipole.
Specifications
| Model | Y4C | Y6C | Y10C | Y15C |
| Number of elements | 4 | 6 | 10 | 15 |
| Frequency range | 700–1000 MHz | 700–1000 MHz | 700–1000 MHz | 700–1000 MHz |
| Bandwidth | 50 MHz | 50 MHz | 50 MHz | 50 MHz |
| Gain | 6 dBd | 8 dBd | 11 dBd | 13 dBd |
| Front-to-back ratio | 15 dB | 15 dB | 15 dB | 15 dB |
| Input impedance | 50 Ω | 50 Ω | 50 Ω | 50 Ω |
| Return loss (VSWR) | <−14 dB (1.5:1) | <−14 dB (1.5:1) | <−14 dB (1.5:1) | <−14 dB (1.5:1) |
| Maximum power | 50 W | 50 W | 50 W | 50 W |
| Cable type | RG58LL | RG58LL | RG58LL | RG58LL |
| Max element length | 180 mm | 180 mm | 180 mm | 180 mm |
| Boom length | 0.45 m | 0.8 m | 1.1 m | 1.8 m |
| Weight | 0.6 kg | 0.8 kg | 1.0 kg | 1.2 kg |
| Mounting | 20 mm channel | 20 mm channel | 20 mm channel | 20 mm channel |
Additional information
| Weight | N/A |
|---|---|
| Brand | Hi-Tec |
| Band | Cellular |
| Model | Y4C (4 element, 6 dBd), Y6C (6 element, 8 dBd), Y10C (10 element, 11 dBd), Y15C (15 element, 13 dBd) |
| Frequency Band | 700–750 MHz (LTE band 28), 917–927 MHz, 920–930 MHz (ISM) |
| Standard Build | RG58LL 1 m tail, N plug, no clamp |
| Customisable | Cable length, connector, mounting clamp |
