VHF Collinear Antennas
Price range: $732.31 through $1,410.76 inc GST
Hi-Tec Aerials professional VHF collinear antennas are omnidirectional gain antennas for repeaters and base stations working with outstations in every direction. They come in 3 and 6 dBd versions, in standard or rugged builds.
- 118–170 MHz, in six tuned bands from 118–125 to 162–170 MHz
- 3 or 6 dBd gain, 100 W, DC grounded element

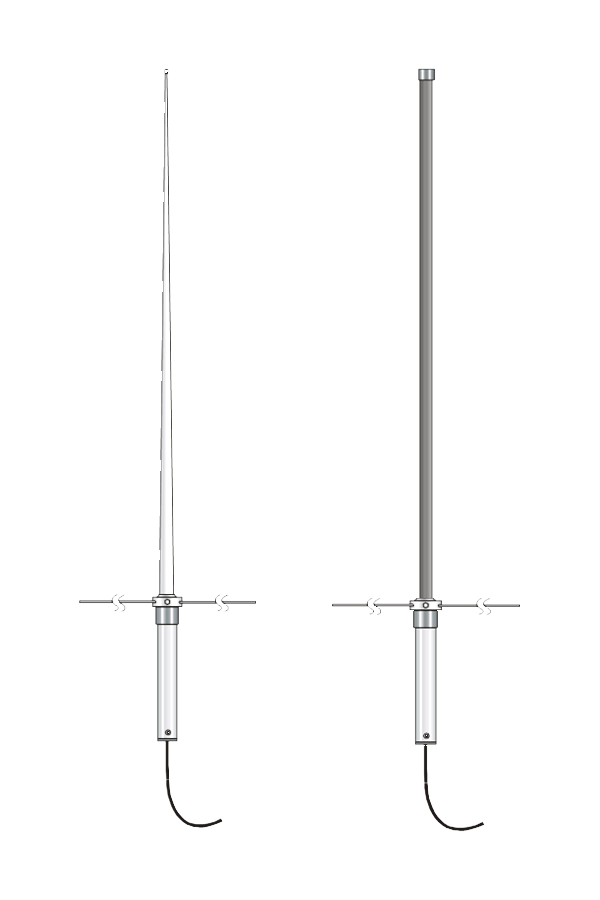

- Standard models have a tapered gloss white radome. RG models have a parallel matte black rugged radome
- Stainless steel ground plane radials
- Supplied with a 0.5 m RG213 tail and N plug, no clamp
- Customisable: cable type, cable length, connector and mounting
All-round VHF coverage with gain
A collinear concentrates signal towards the horizon in every direction, making it the standard choice for VHF repeaters and base stations working mobiles and handhelds around a site. The internal radiating element is DC grounded and housed in a high-dielectric fibreglass radome to minimise precipitation and wind static for low-noise operation. Stainless steel radials are fitted to the hub above the mounting section.
Choosing a model
- Gain: 3 dBd (34° vertical beamwidth, 2.2–2.6 m tall) suits hilltop sites with users below. 6 dBd (15°, 2.8–3.5 m tall) gives more range over flat terrain or from lower sites.
- Standard or rugged: the standard COL models have a tapered radome in gloss white. The RG models have a parallel radome in matte black, rated above 215 km/h wind.
- Band: 118–125 or 125–136 MHz (airband), 138–144, 151–156, 156–162 (marine) or 162–170 MHz.
Standard build and customisation
As standard, each antenna has a 0.5 m RG213 tail with an N plug and no clamp. You can customise:
- Cable type and length: see our coax cable range
- Connector: N plug or N jack (see connectors)
- Mounting: the heavy-duty Universal Clamp is recommended for a vertical or horizontal support
Contact us for a quote on a custom configuration. Collinears can be stacked with a power divider. See also our VHF shrouded dipole, alpine dipole and UHF collinears. Signals NZ and Hi-Tec Aerials supply, install and service radio sites across New Zealand, and fit lightning protection.
Specifications
| Model | PRO-COL3V | PRO-COL6V | PRO-COL3V-RG | PRO-COL6V-RG |
|---|---|---|---|---|
| Frequency range | 118–170 MHz (six tuned bands) | |||
| Bandwidth | 5 MHz | 3 MHz | 5 MHz | 3 MHz |
| Gain | 3 dBd | 6 dBd | 3 dBd | 6 dBd |
| Half power beamwidth, E plane | 34° | 15° | 34° | 15° |
| Impedance | 50 Ω | |||
| Return loss / VSWR | < −14 dB / 1.5:1 | |||
| Maximum power | 100 W | |||
| Cable | RG213 (0.5 m tail, N plug standard) | |||
| Overall height | 2.2–2.6 m | 2.8–3.5 m | 2.2–2.6 m | 2.8–3.5 m |
| Projected area | 0.06 m² | 0.08 m² | 0.06 m² | 0.08 m² |
| Weight | 2 kg | |||
| Wind speed rating | 215 km/h | > 215 km/h | ||
| Mounting tube diameter | 38 mm | |||
| Ground plane radials | Yes, stainless steel | |||
Additional information
| Weight | 2 kg |
|---|---|
| Brand | Hi-Tec |
| Band | VHF |
| Model | PRO-COL3V – 3 dBd, gloss white, PRO-COL6V – 6 dBd, gloss white, PRO-COL3V-RG – 3 dBd, rugged matte black, PRO-COL6V-RG – 6 dBd, rugged matte black |
| Frequency Band | 118–125 MHz, 125–136 MHz, 138–144 MHz, 151–156 MHz, 156–162 MHz, 162–170 MHz |
| Standard Build | RG213 0.5 m tail, N plug, no clamp |
| Customisable | Cable type, cable length, connector, mounting |
