Universal Clamp CL-UV
$174.69 inc GST

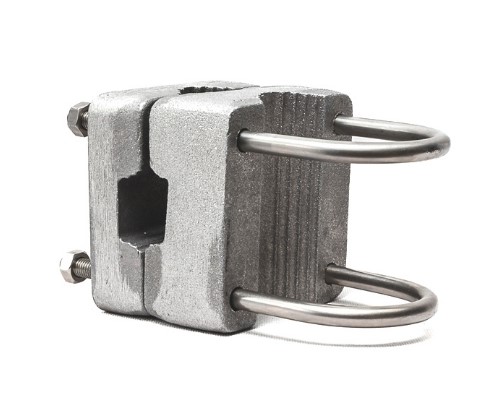

The Hi-Tec Aerials Universal Clamp (CL-UV) is a heavy-duty clamp for mounting aerials to round tubes and pipes. It can mount an aerial in line vertically, or horizontally on a vertical or horizontal pipe, so one clamp covers most mast and bracket layouts.
- Mount aerials vertically in line, or horizontally
- Fits vertical or horizontal tubes and pipes
- Takes the 25 mm square booms of Hi-Tec yagis and folded dipoles
- Cast aluminium body with 2 × 120 mm U-bolts
- Suits 25–50 mm round tube, including 38 and 48 mm pipe
- Designed and supplied in New Zealand by Hi-Tec Aerials
One clamp for most aerial layouts
Aerial installs rarely line up neatly. The Universal Clamp lets you fix an aerial in line with a vertical mast, or horizontally across a vertical or horizontal pipe, so you don't need a different clamp for every orientation. The cast aluminium body and two 120 mm U-bolts make it a heavy-duty clamp for permanent installs on masts, towers, handrails and building brackets, on tubes from 25 to 50 mm.
Made for Hi-Tec yagis and folded dipoles
The clamp takes the 25 mm square boom used on Hi-Tec Aerials yagis and folded dipoles. You can mount a directional aerial for vertical or horizontal polarisation, or offset it from the mast for better pattern clearance.
Part of the Hi-Tec clamp range

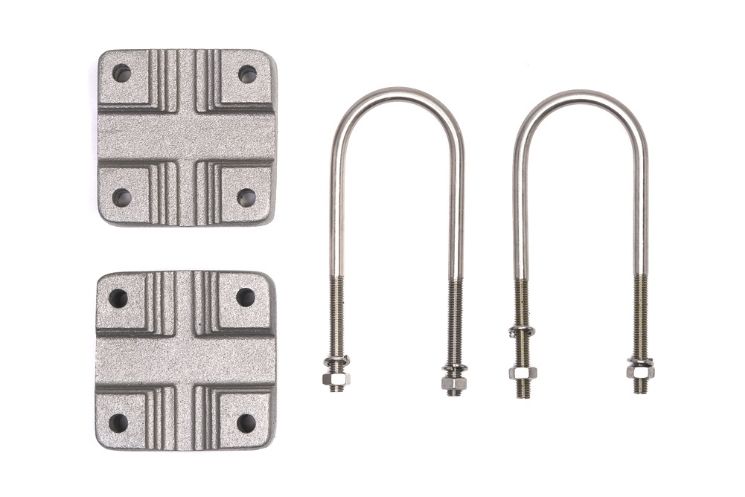

Hi-Tec Aerials makes a full range of mounting clamps, including saddle, cross, rigging pipe, pole mount, back-end and wall-mount clamps. Tell us your mast size and aerial and we'll match the right hardware.
Installed by Signals NZ
Signals NZ and Hi-Tec Aerials design, supply and install aerial systems for two-way radio sites, repeaters and base stations across New Zealand. See our installation and service options.
Specifications
| Part number | CL-UV |
| Body | Cast aluminium, natural finish |
| Hardware | 2 × 120 mm U-bolts |
| External vertical tube diameter | 38 or 48 mm (min 38, max 50) |
| Internal vertical tube diameter | 38 or 48 mm (min 25, max 50) |
| Internal horizontal tube diameter | 38 or 48 mm (min 25, max 50), or 25 mm square tube |
| Dimensions | 90 × 90 × 120 mm |
| Weight | 1.2 kg |
| Manufacturer | Hi-Tec Aerials, New Zealand |
Additional information
| Weight | 1.2 kg |
|---|---|
| Dimensions | 12 × 9 × 9 cm |
| Brand | Hi-Tec |
| Mounting | Vertical in-line or horizontal |
| Tube Size | 25–50 mm round or 25 mm square |
| Body | Cast aluminium, 2 × 120 mm U-bolts |
