Saddle Clamps
Price range: $82.59 through $86.46 inc GST
Hi-Tec Aerials saddle clamps fix an aerial to a 38 mm or 48 mm tube with a cast aluminium saddle and a stainless steel U-bolt. They are a simple, low-profile way to mount whips, collinears and small yagis to masts, handrails and brackets.
- Sizes for 38 mm and 48 mm tube
- Cast aluminium saddle, natural finish
- 8 mm stainless steel U-bolt (95 mm) with M8 nuts and spring washers
- Light: 0.25–0.3 kg
- Designed and supplied in New Zealand by Hi-Tec Aerials
A simple, secure tube mount
A saddle clamp is the quickest way to fix an aerial to a round tube. The cast saddle sits against the pipe and a single U-bolt draws it tight, so it can be fitted with one spanner at the top of a mast. It suits whips, collinears and small yagis on masts, handrails, wall brackets and crossarms.
Corrosion-resistant hardware
The saddle is cast aluminium with a natural finish. The 95 mm U-bolt is 8 mm stainless steel with M8 nuts and spring washers, so the clamp stays tight and won't rust at exposed coastal and hilltop sites.
Choosing the right model

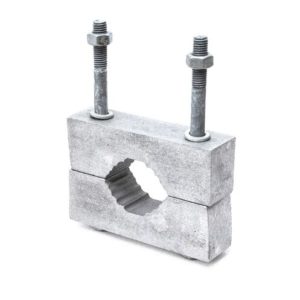

Choose CL-SA38 for 38 mm tube or CL-SA48 for 48 mm tube. For fixing a pipe to a flat plate or tower leg, see the mounting clamps. For mounting a boom across a mast, see the cross clamps, or the Universal Clamp CL-UV for in-line or horizontal mounting. Tell us your mast size and aerial and we'll match the right hardware.
Installed by Signals NZ
Signals NZ and Hi-Tec Aerials design, supply and install aerial systems for two-way radio sites, repeaters and base stations across New Zealand. See our installation and service options.
Specifications
| Model | CL-SA38 | CL-SA48 |
|---|---|---|
| Body | Cast aluminium, natural finish | |
| Pipe diameter | 38 mm | 48 mm |

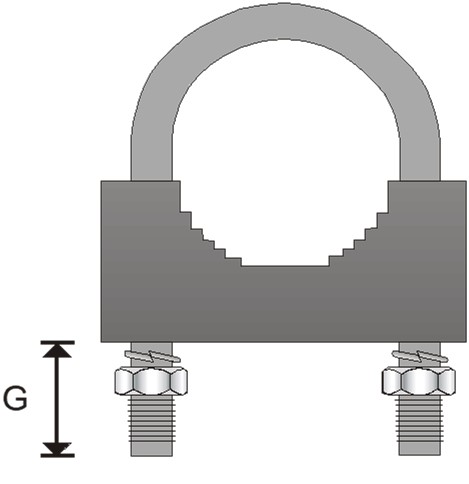

| Dimension 'G' with pipe fitted | 65 mm | 50 mm |
| Hardware | 1 × 95 mm U-bolt | 1 × 95 mm U-bolt |
| U-bolt | 8 mm stainless steel, M8 nuts and spring washers | |
| Weight | 0.25 kg | 0.3 kg |
Additional information
| Weight | N/A |
|---|---|
| Brand | Hi-Tec |
| Model | CL-SA38, CL-SA48 |
| Body | Cast aluminium saddle |
| Hardware | 8 mm stainless U-bolt, 95 mm |
| Pipe Size | 38 or 48 mm |
