Cross Clamp Small CL-CR-SML
$279.17 inc GST

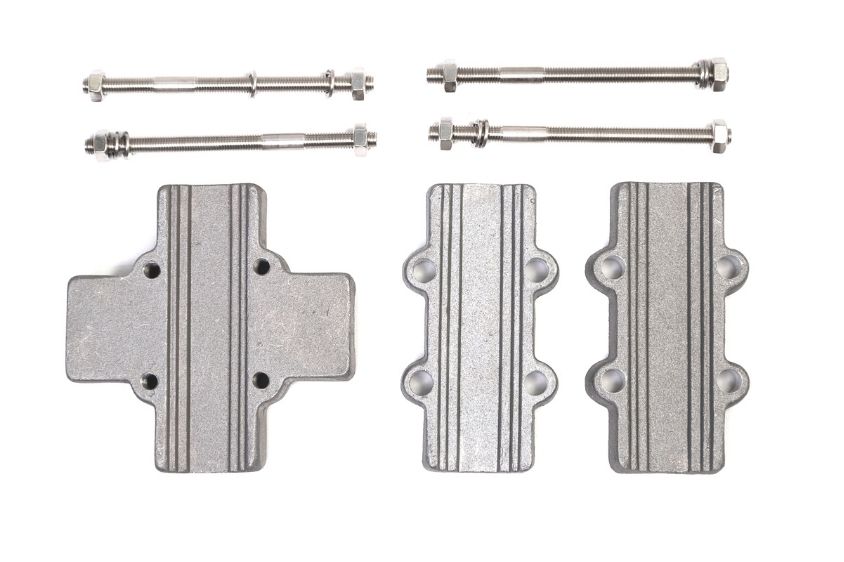

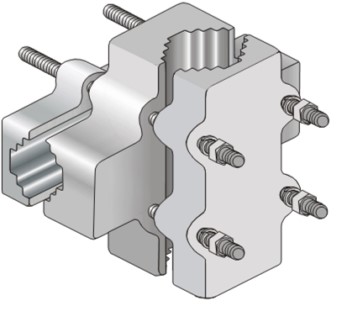

The Hi-Tec Aerials Cross Clamp Small (CL-CR-SML) is a heavy-duty clamp for mounting a horizontal aerial boom to a vertical mast or pipe. The centre section is drilled and tapped, so you can part-assemble it on the ground before going up the mast.
- Mounts a horizontal boom to a vertical support
- Fits 32–50 mm pipe and boom, including 38 and 48 mm
- Cast aluminium body with M10 stainless steel hardware
- Drilled and tapped centre section for pre-assembly
- Designed and supplied in New Zealand by Hi-Tec Aerials
A strong boom-to-mast join
The Cross Clamp Small fixes a horizontal aerial boom at right angles to a vertical mast. It suits yagis, side-mounted collinears and arrays on masts, towers and building brackets. The cast aluminium body and M10 stainless steel hardware hold the boom firmly and resist corrosion at exposed sites.
Quicker, safer installs
The centre section is drilled and tapped, so half the clamp can be fitted to the boom on the ground. On the mast, the installer only needs to finish the second half. That means less time working at height and less risk of dropping hardware.
Sizes
The CL-CR-SML suits 32 to 50 mm pipe on both the mast and the boom, including standard 38 mm and 48 mm pipe. For masts from 63 to 115 mm, choose the Cross Clamp Large CL-CRL. To mount an aerial in line or on a 25 mm square boom, see the Universal Clamp CL-UV, or browse the full Hi-Tec clamp range.
Installed by Signals NZ
Signals NZ and Hi-Tec Aerials design, supply and install aerial systems for two-way radio sites, repeaters and base stations across New Zealand. See our installation and service options.
Specifications
| Part number | CL-CR-SML |
| Body | Cast aluminium, natural finish |
| Hardware | M10 stainless steel |
| Vertical pipe diameter | 38 or 48 mm (min 32, max 50) |
| Horizontal aerial boom diameter | 38 or 48 mm (min 32, max 50) |
| Dimensions | 160 × 160 × 160 mm |
| Weight | 2.3 kg |
| Manufacturer | Hi-Tec Aerials, New Zealand |
Additional information
| Weight | 2.3 kg |
|---|---|
| Dimensions | 16 × 16 × 16 cm |
| Brand | Hi-Tec |
| Mounting | Horizontal boom to vertical pipe |
| Tube Size | 32–50 mm (38 or 48 mm) |
| Body | Cast aluminium, M10 stainless hardware |
