Cross Clamp Large CL-CRL
$482.68 inc GST

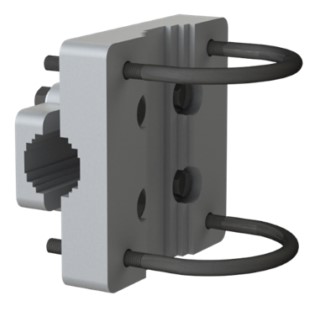

The Hi-Tec Aerials Cross Clamp Large (CL-CRL) is a heavy-duty clamp for mounting a horizontal aerial boom to a large-diameter mast, tower leg or pole from 63 to 115 mm.
- Mounts a horizontal boom to a vertical support from 63 to 115 mm
- Takes 32–50 mm booms, including 38 and 48 mm
- Cast aluminium body with M12 stainless steel hardware
- Built for heavy arrays and exposed sites
- Designed and supplied in New Zealand by Hi-Tec Aerials
Boom mounting for large masts and poles
The Cross Clamp Large fixes a horizontal aerial boom at right angles to a large vertical support from 63 to 115 mm. That covers heavy-wall masts, tower legs, lattice members and power or lighting poles. It suits yagis, side-mounted collinears and multi-aerial arrays at repeater and base-station sites.
Heavy-duty construction
The cast aluminium body and M12 stainless steel hardware hold the boom firmly under wind load and resist corrosion at coastal and hilltop sites. At 4.5 kg, it is built for larger aerials and permanent installs.
Sizes
The CL-CRL suits vertical supports from 63 to 115 mm and booms from 32 to 50 mm, including standard 38 mm and 48 mm pipe. For masts from 32 to 50 mm, choose the Cross Clamp Small CL-CR-SML, or browse the full Hi-Tec clamp range.
Installed by Signals NZ
Signals NZ and Hi-Tec Aerials design, supply and install aerial systems for two-way radio sites, repeaters and base stations across New Zealand. See our installation and service options.
Specifications
| Part number | CL-CRL |
| Body | Cast aluminium, natural finish |
| Hardware | M12 stainless steel |
| Vertical pipe diameter | 63 to 115 mm |
| Horizontal aerial boom diameter | 38 or 48 mm (min 32, max 50) |
| Dimensions | 190 × 190 × 120 mm (excl. U-bolts) |
| Weight | 4.5 kg |
| Manufacturer | Hi-Tec Aerials, New Zealand |
Additional information
| Weight | 4.5 kg |
|---|---|
| Dimensions | 19 × 19 × 12 cm |
| Brand | Hi-Tec |
| Mounting | Horizontal boom to vertical pipe |
| Tube Size | Mast 63–115 mm, boom 32–50 mm |
| Body | Cast aluminium, M12 stainless hardware |
