Mini 1/2w UHF Aerials
Price range: $131.86 through $179.35 inc GST
The Hi-Tec Aerials mini 1/2 wave UHF aerial has a very small profile for modern vehicles and needs no ground plane, so it can be mounted almost anywhere, including non-metallic surfaces. Made in New Zealand.
- 420–505 MHz, plus a 420–520 MHz wideband model
- Standard whip or 3 dB collinear whip for extra gain
- End-fed half-wave design, no ground plane needed
- Compact 80 mm nickel-plated brass base, 12 mm stud mount
- Choose a 5 m RG58 tail (unterminated) or a PL259 base
- Customisable: cable type and length, connector, bracket, base only
A compact UHF aerial for modern vehicles
Hi-Tec Aerials mini half-wave aerials have a very small profile, ideal for modern vehicles. The end-fed design removes the need for a ground plane, so the aerial can be mounted in any position on a vehicle and suits non-metallic surfaces. Raising the mounting point to clear body panels can further improve performance.
The base is 80 mm tall and 16 mm in diameter, made from nickel-plated brass with a black fibreglass centre section housing the impedance matching circuit. It mounts on its 12 mm stud or onto a stainless steel vehicle aerial bracket. Each aerial is stamped with its model on the base for identification.

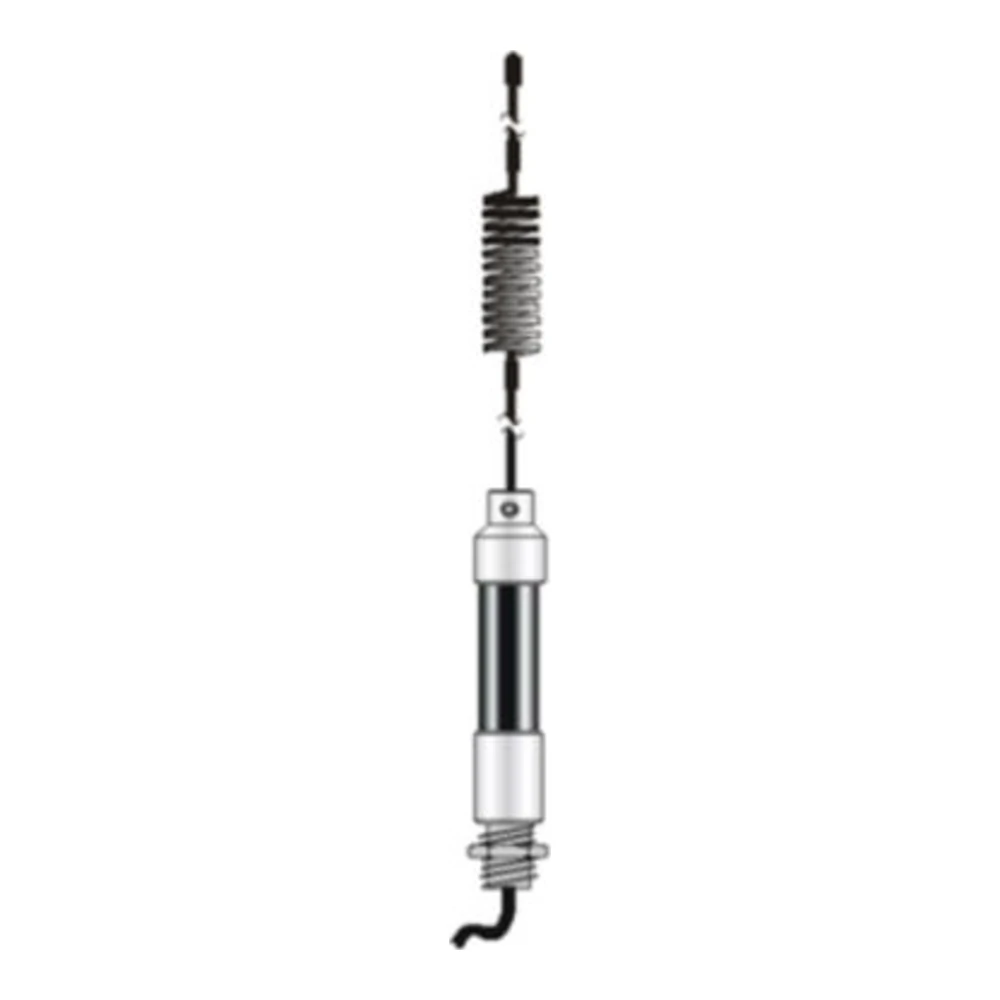

The radiating element is a 2.7 mm stainless steel whip, or choose the 3 dB collinear element formed from black epoxy-coated stainless steel wire for extra gain. The collinear element is also available separately (W1/2COL3).
Models
Choose a model with a 5 m RG58 tail (unterminated, no bracket) for a permanent install, or a PL259 base to screw onto an existing mount. The M1/2WB-U wideband covers 420–520 MHz on a PL259 base. The M1/2UC3 collinear on a PL259 base is available on request.
You can change to RG58 low-loss or RG174 cable, change the cable length, add a bracket or connector (see connectors), or order the base only with no whip. Contact us for a custom configuration.
| Model | Description | Frequency | Bandwidth at −14 dB |
| M1/2U-58-5-W05-UNT-NB | RG58 5 m, W05 whip, unterminated, no bracket | 420–505 MHz | 15 MHz |
| M1/2U-58-5-COL-UNT-NB | RG58 5 m, 3 dB collinear whip, unterminated, no bracket | 420–505 MHz | 15 MHz |
| M1/2U-PL259-SL | On PL259 base, silver | 420–505 MHz | 15 MHz |
| M1/2UC3-PL259-SL | 3 dB collinear on PL259 base, silver (on request) | 420–505 MHz | 15 MHz |
| M1/2WB-U | Wideband, PL259 base connector | 420–520 MHz (380–520 MHz at VSWR <1.8:1) | 100 MHz |
Specifications
| Type | Mini end-fed 1/2 wave vehicle aerial |
| Ground plane | Not required |
| Base | 80 mm high, 16 mm diameter, nickel-plated brass with fibreglass centre |
| Mounting | 12 mm stud or stainless steel bracket |
| Whip | 2.7 mm stainless steel, or 3 dB collinear |
| Impedance | 50 Ω |
| M1/2WB-U max power | 50 W |
| M1/2WB-U overall height | 260 mm |
Additional information
| Brand | Hi-Tec |
|---|---|
| Band | UHF |
| Model | M1/2U 420–505 MHz, RG58 5 m tail, M1/2U collinear 3 dB, RG58 5 m tail, M1/2U 420–505 MHz, PL259 base, M1/2WB-U wideband 420–520 MHz, PL259 base |
| Customisable | Cable type and length, connector, bracket, base only (no whip) |
