UHF Ground Dependent Whips
Price range: $7.71 through $33.47 inc GST
Hi-Tec Aerials UHF ground dependent whips for fitting to Hi-Tec aerial bases on vehicles, from a compact quarter-wave to 3 dB gain collinear and 5/8 wave whips.

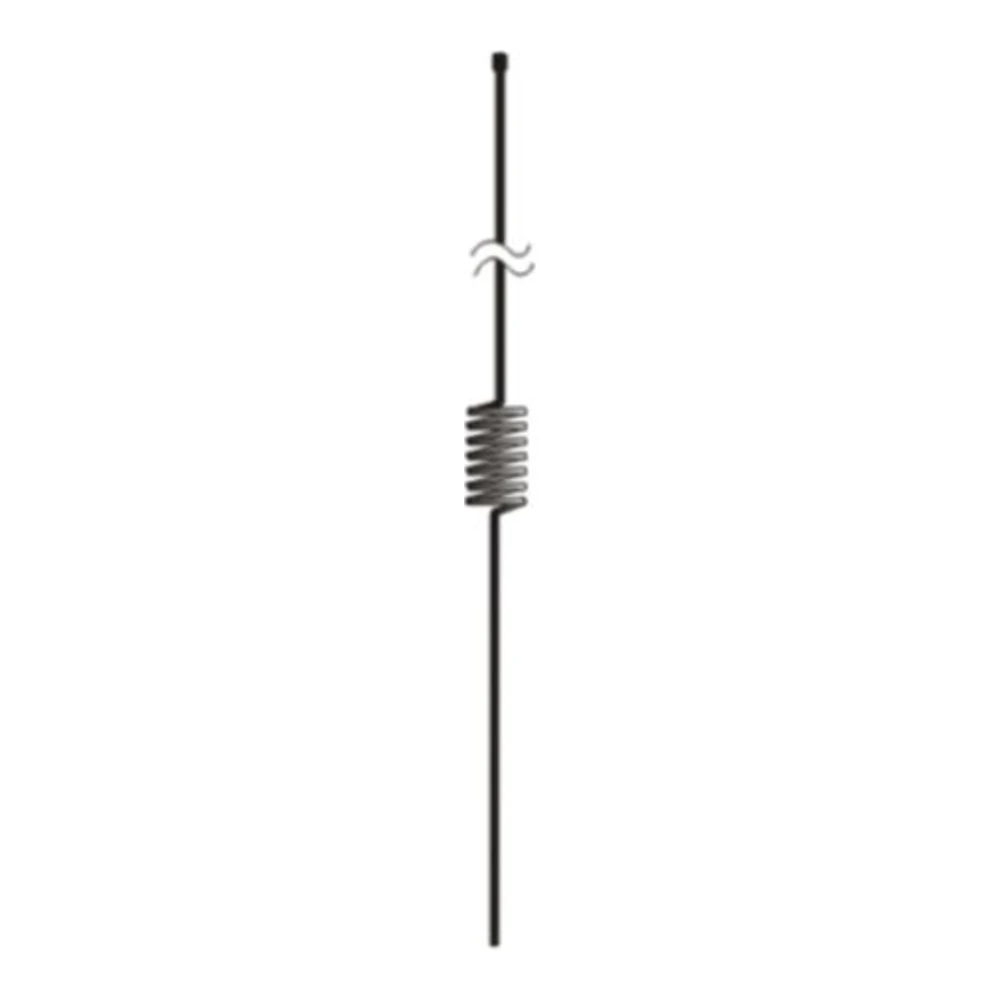

- WUCOL3: UHF collinear, 3 dB gain, 400–500 MHz, black

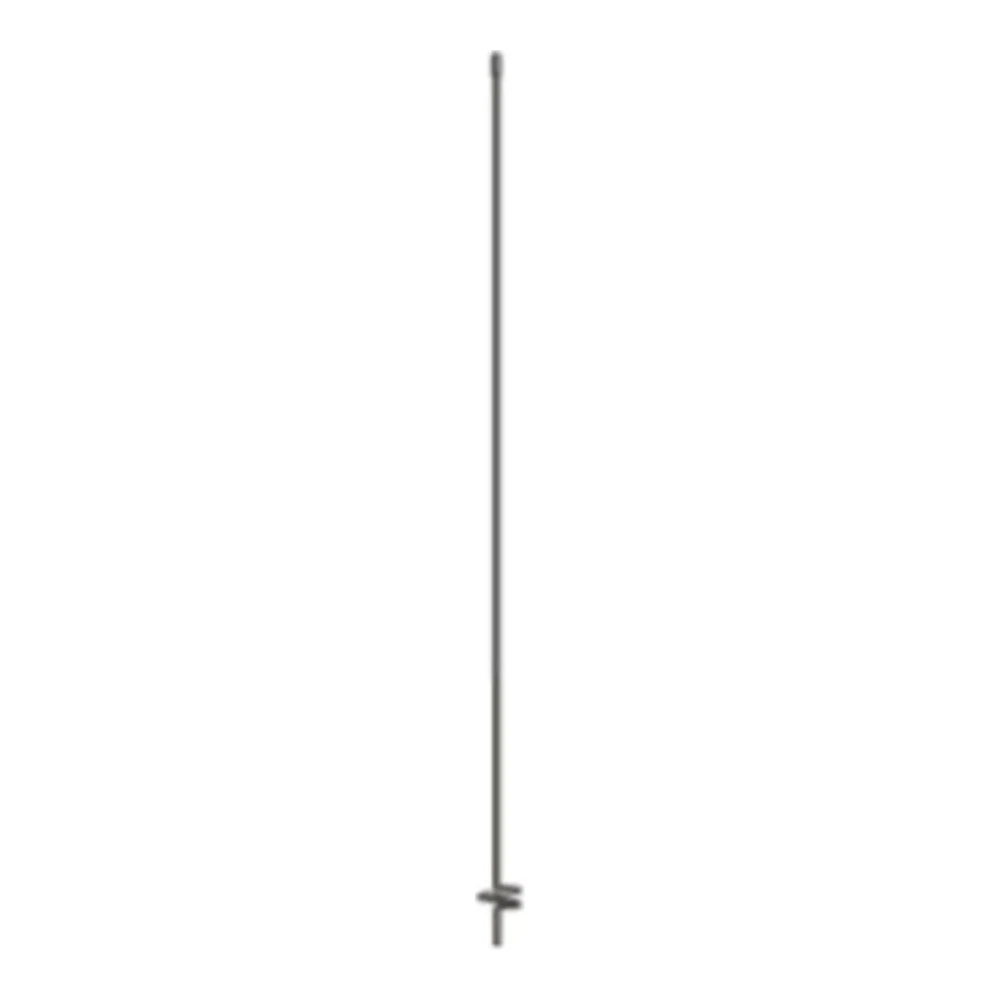

- W5/8U: 5/8 wave stainless whip, 3 dB gain, 400–500 MHz
- W02: 200 mm stainless whip, 380–550 MHz
- Collet or grubscrew mount onto Hi-Tec bases
UHF whips with up to 3 dB gain
The W5/8U and WUCOL3 both give 3 dB of gain, with the collinear WUCOL3 offering a wider bandwidth. The W5/8U is supplied tuned to 400–410 MHz and the WUCOL3 to 400–420 MHz. The W02 is made from parallel stainless steel with a vinyl tip.
Hi-Tec Aerials whips mount onto our aerial bases using either a collet mount or a grubscrew mount. They are ground dependent, so they work best mounted on a metal vehicle roof or panel that acts as the ground plane. Mount the base on a magnetic mount or a vehicle aerial bracket.
Ordering
Whips are sold separately from aerial bases. Choose the model and finish below. Contact us if you also need a base, cable or bracket.
Models
| Model | Description | Frequency |
| WUCOL3 | UHF collinear 3 dB whip, black | 400–500 MHz |
| W5/8U | 5/8 wave UHF stainless steel whip | 400–500 MHz |
| W5/8U-BLK | 5/8 wave UHF stainless steel whip, black | 400–500 MHz |
| W02 | Stainless steel whip 200 mm | 380–550 MHz |
| W02-BLK | Stainless steel whip 200 mm, black | 380–550 MHz |
Additional information
| Brand | Hi-Tec |
|---|---|
| Band | UHF |
| Model | WUCOL3, W5/8U, W5/8U-BLK, W02, W02-BLK |
