VHF Marine 1/2w Aerials
Price range: $125.90 through $188.85 inc GST
Hi-Tec Aerials VHF marine 1/2 wave aerials for boats and coastal vehicles on the 156–162 MHz marine band. Choose a rugged heavy duty base with a stainless whip, or a fibreglass radome on a tilt base. Made in New Zealand.
- 156–162 MHz VHF marine band
- Unity gain, omnidirectional radiation
- Heavy duty: moulded nylon base, 890 mm stainless steel whip, white or black
- Fibreglass: tapered radome on an adjustable marine tilt base
- Supplied with 5 m of RG58 coax, unterminated
VHF marine aerials built for salt and spray
Hi-Tec Aerials marine band half-wave aerials cover the 156–162 MHz VHF marine band with unity gain and an omnidirectional pattern. Both styles are supplied with 5 m of coax cable, unterminated, ready to fit your connector.

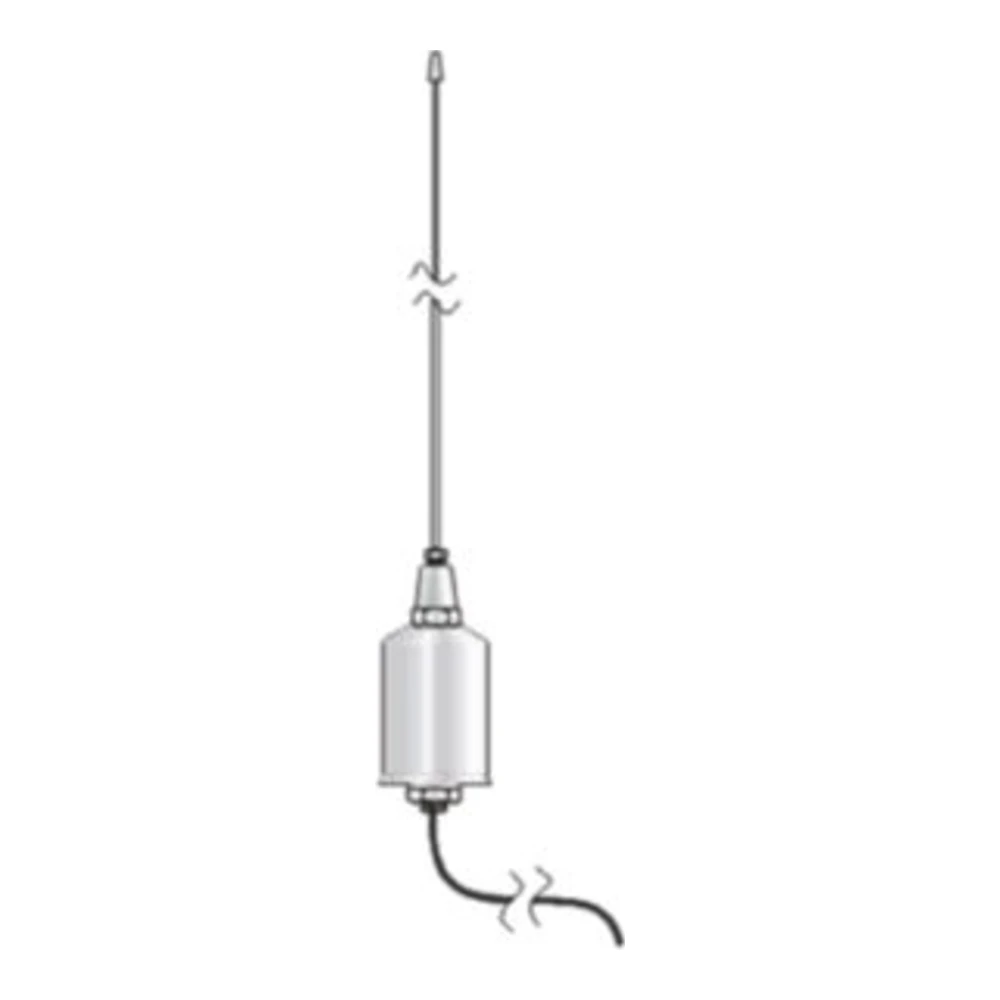

Heavy duty 1/2 wave (HD1/2MM)
A rugged moulded nylon base fitted with an 890 mm stainless steel whip. It mounts through a 12 mm hole or onto a stainless steel bracket, and an extended 40 mm mounting stud is available on request. Available in white with white RG58 cable, or black with black RG58 cable. The same design is used in our heavy duty 1/2 wave aerials for land vehicles.

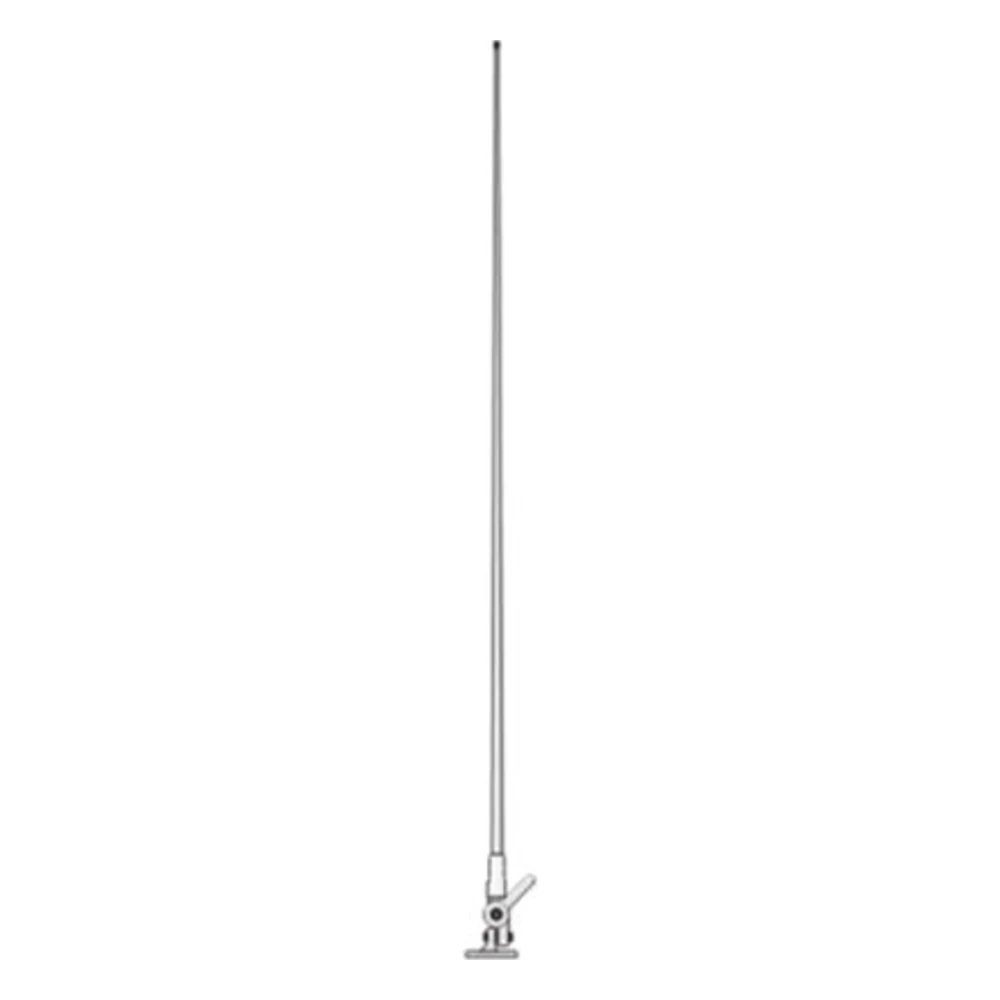

Fibreglass 1/2 wave on tilt base (MAR-MM1/2)
A half-wave aerial fitted inside a tapered white fibreglass radome, mounted on a fully adjustable plastic marine tilt base so it can be lowered for trailering or storage. Supplied with 5 m of white RG58 cable.
Ordering
Choose the model. You can change the cable length, add an FME connector (see connectors) or a bracket, or order the heavy duty base with no whip. Contact us for a custom configuration.
Models
| Model | Description |
| HD1/2MM-WHT-58W-5-W09-UNT-NB | White heavy duty 1/2 wave, 156–162 MHz, white RG58 5 m, W09 whip, unterminated, no bracket |
| HD1/2MM-BLK-58-5-W09-UNT-NB | Black heavy duty 1/2 wave, 156–162 MHz, black RG58 5 m, W09 whip, unterminated, no bracket |
| MAR-MM1/2-58W-5-UNT-TLT | Marine band fibreglass 1/2 wave, white RG58 5 m, unterminated, tilt base |
Specifications
| Frequency | 156–162 MHz VHF marine band |
| Gain | Unity |
| Pattern | Omnidirectional |
| Heavy duty base | Moulded nylon, 12 mm mounting stud (40 mm on request) |
| Heavy duty whip | 890 mm stainless steel |
| Fibreglass model | Tapered fibreglass radome, adjustable plastic tilt base |
| Cable | RG58, 5 m, unterminated |
Additional information
| Brand | Hi-Tec |
|---|---|
| Band | VHF |
| Model | Heavy duty, white, Heavy duty, black, Fibreglass on tilt base, white |
| Frequency | 156–162 MHz (marine) |
| Standard Build | RG58 5 m, unterminated |
