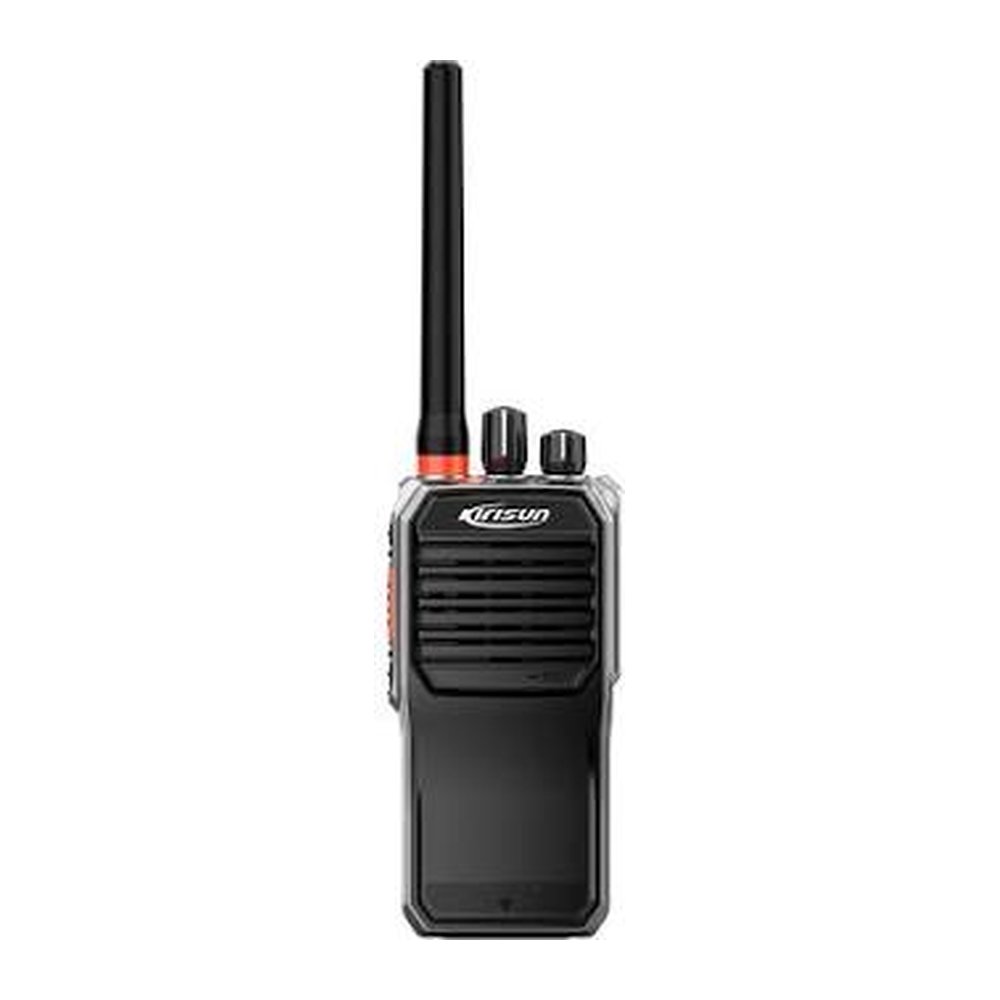

Kirisun DP685 DMR Portable Radio
$1,263.85 inc GST
The Kirisun DP685 is a premium DMR portable radio with colour display, simplified keys and AI noise cancelling that cuts background noise by up to 30 dB. IP67 and MIL-STD-810 rated, with GPS, man-down and lone worker functions and AES-256 encryption options. From Signals NZ, Kirisun’s exclusive New Zealand distributor.
The Kirisun DP685 is the limited-keypad version of the DP680: the same premium IP67 radio, AI noise cancelling and safety features, with a simpler key layout for users who mostly change channel and talk. It's ideal for construction, utilities, security and event crews working in loud environments who need status on screen but not a full keypad.
This DMR portable radio uses AI-based noise cancellation to reduce background noise by up to 30 dB, with a 2 W speaker, built-in GPS, man-down and lone worker functions. It's sealed to IP67, tested to MIL-STD-810 C/D/E/F/G and available in VHF or UHF. Signals NZ is Kirisun's exclusive New Zealand distributor, so you get local support, programming and service from the team that brings the brand into the country.
Key features
- AI noise cancelling: reduces background noise by up to 30 dB for clear transmissions in loud workplaces.
- Loud 2 W speaker: easy to hear in noisy environments.
- Colour display, simple keys: 1.8" TFT colour screen with an easy, uncluttered key layout.
- IP67 and MIL-STD-810: dust-tight and waterproof, tested to military standards C to G.
- Built-in GPS: location tracking with fast cold start and around 10 m accuracy.
- Lone worker safety: man-down and lone worker functions for staff working alone.
- Secure communication: ARC4, DES and AES-256 encryption options.
- 1024 channels: 248 zones for large, complex fleets.
Specifications
| Frequency range | VHF 136–174 MHz or UHF 400–470 MHz |
| Mode | DMR digital and analogue |
| Channels | 1024 channels / 248 zones |
| Output power | VHF 5 / 1 W; UHF 4 / 1 W |
| Display | 1.8" TFT colour LCD, limited keypad |
| Audio | 2 W speaker, AI noise cancelling (up to 30 dB) |
| GPS | Built-in (cold start <1 min, ~10 m accuracy) |
| Encryption | ARC4, DES, AES-256 (options) |
| Safety | Man-down, lone worker |
| Ingress protection | IP67 |
| Durability | MIL-STD-810 C/D/E/F/G |
| Battery | 2000 mAh Li-ion (2500 mAh optional) |
| Battery life | Up to 15.5 hours digital / 13.5 hours analogue |
| Operating temperature | −30 °C to +60 °C |
| Dimensions | 123 × 55 × 33 mm (with 2000 mAh battery) |
| Weight | 353 g (with standard battery) |
What's in the box
- DP685 radio
- 2000 mAh Li-ion battery
- Antenna
- Single-unit charger and adaptor
- Belt clip
Licensing, programming & support
Signals NZ handles the full RSM licensing process and programmes your radios before they leave us, so they're ready to use out of the box. Our radio service team can look after repairs and maintenance from there.
Compare the range
Need a full keypad for individual calls and messaging? See the Kirisun DP680. For a lower-cost IP66 option, see the Kirisun DP585, or step up to the Kirisun DP810/815. Add a VC-35 D-shell earpiece for discreet audio.
Get a quote for supply and programming across your team.
Additional information
| Weight | 0.353 kg |
|---|---|
| Dimensions | 12.3 × 5.5 × 3.3 cm |
| Frequency Band | UHF – Low Band (400-470MHz), VHF – All Band (136-174MHz) |
| Ingress Protection | IP67 |
| GPS | Built-in |
| Display | 1.8" colour display, limited keypad |
| Noise Cancelling | AI, up to 30 dB |
