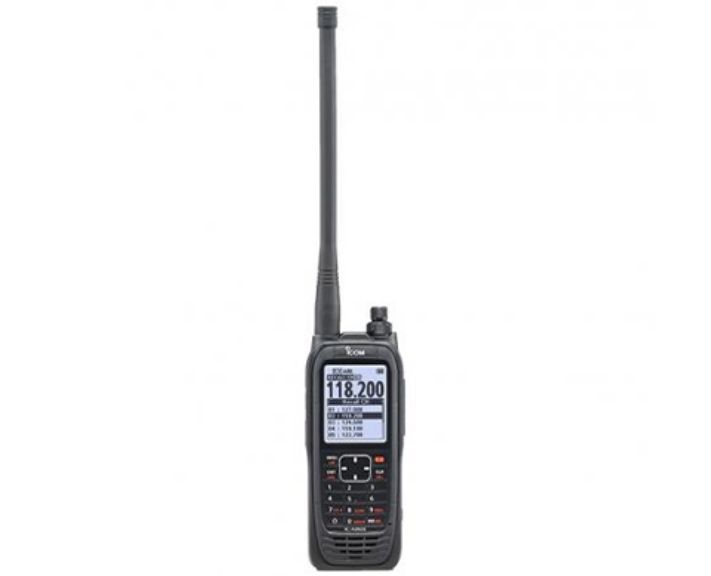

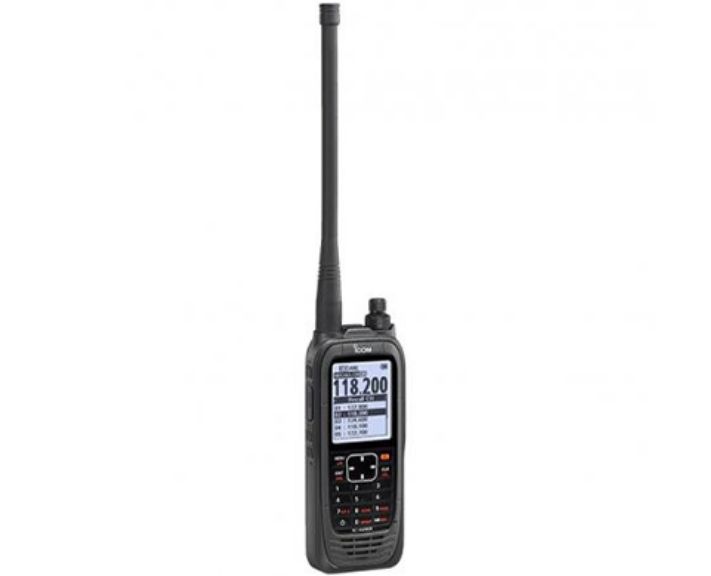

Icom IC-A25CE VHF Airband Radio
Price range: $879.75 through $1,301.80 inc GST
The Icom IC-A25CE is a next-generation VHF airband handheld with 6 W PEP output, a 2.3-inch high-visibility display, built-in GPS, 8.33/25 kHz channel spacing and IP57 dust and water protection. The IC-A25NE version adds Bluetooth for hands-free headsets, VOR navigation and GPS waypoint and flight plan navigation.
The Icom IC-A25CE redefines the ground-to-air handheld. It transmits at around 6 W PEP (1.8 W carrier), up from the 5 W of the IC-A24E, and its 2.3-inch high-contrast LCD stays readable in direct sunlight, with large frequency characters and a night mode for low light. The flat-sheet keypad gives direct access to common functions, and the 121.5 MHz emergency key gets you onto the distress frequency instantly.
Built-in GPS powers the near station search, which finds nearby ground stations from your programmed station memories. The intelligent BP-288 battery gives up to 10.5 hours of operation and shows detailed battery status, and the supplied BP-289 case lets you run the radio on six AA alkaline batteries in the field.
Choose your version
| IC-A25CE Standard | IC-A25NE Bluetooth & Navigation | |
| Bands | COM | NAV and COM |
| Receive range | 118.000–136.992 MHz | 108.000–136.992 MHz |
| Built-in GPS and near station search | Yes | Yes |
| Built-in Bluetooth (hands-free headsets) | – | Yes |
| VOR navigation (CDI, OBS, TO-FROM, ABSS) | – | Yes |
| GPS waypoint NAV (Direct-To and flight plans) | – | Yes, 10 flight plans and 300 waypoints |
| Flight plans from RS-AERO1A/RS-AERO1I app via Bluetooth | – | Yes |
Key features
- 6 W PEP / 1.8 W carrier RF output for extended range.
- 2.3-inch large, high-visibility LCD with graphic screens and night mode.
- Built-in GPS (with GLONASS and SBAS) and near station search.
- 121.5 MHz emergency key, priority watch, VFO, memory and priority scan.
- 8.33 kHz and 25 kHz channel spacing, with 300 memory channels in 15 groups and 12-character names.
- Intelligent BP-288 battery with up to 10.5 hours of operating time and a detailed battery status screen.
- BP-289 battery case for six AA alkaline batteries.
- IP57 dust protection and waterproofing, and MIL-STD-810G.
- Built-in Bluetooth for hands-free headsets such as the VS-3, with side tone (IC-A25NE).
- VOR navigation with CDI, OBS, TO-FROM indicator and ABSS (IC-A25NE).
- ANL (Auto Noise Limiter), side tone and internal VOX.
Specifications
| Frequency range (IC-A25CE) | Tx/Rx 118.000–136.992 MHz |
| Frequency range (IC-A25NE) | Tx 118.000–136.992 MHz / Rx 108.000–136.992 MHz |
| Memory channels | 300 (15 groups) |
| Channel spacing | 25 / 8.33 kHz |
| Emission | 6K80A3E, 5K00A3E |
| Output power | 6.0 W PEP / 1.8 W carrier (typical, at 7.2 V DC) |
| Power supply | 7.2 V DC (BP-288), 11.0 V DC (external DC jack) |
| Current drain | Tx high less than 1.8 A / Rx max. audio less than 500 mA / standby 90 mA (typical) |
| Battery | BP-288 Li-ion, 7.2 V, 2350 mAh (typical) |
| Battery life | Up to 10.5 hours (5:5:90, Bluetooth off, GPS on) |
| Audio output | More than 350 mW (8 Ω, 10% distortion) |
| Antenna connector | BNC, 50 Ω |
| Ingress protection | IP57 |
| Durability | MIL-STD-810G |
| Operating temperature | –20°C to +55°C |
| Dimensions | 58.9 × 148.4 × 31.8 mm (projections not included) |
| Weight | 384 g (with antenna and BP-288) |
Download IC-A25CE / IC-A25NE Brochure (PDF)
What's in the box
- IC-A25CE or IC-A25NE radio
- BP-288 Li-ion battery pack
- BP-289 AA battery case
- BC-224 rapid charger and AC adapter
- OPC-2379 headset adapter
- FA-B02AR antenna
- MB-133 belt clip
- Hand strap
Supplied accessories may differ depending on the radio version. Optional accessories include the HM-231 speaker-microphone, VS-3 Bluetooth headset (IC-A25NE), CP-20 cigarette lighter cable, MB-96 belt hangers, CS-A25 programming software and OPC-478UC programming cable.
Compare the range
Need a simpler, lower-cost airband handheld? See the Icom IC-A16E.
Get a quote for your airfield, club or fleet.
Additional information
| Weight | 0.384 kg |
|---|---|
| Dimensions | 14.84 × 5.89 × 3.18 cm |
| Brand | Icom |
| Technology | Analogue |
| Frequency Range | VHF airband 118–137 MHz (NAV 108–137 MHz on IC-A25NE) |
| Ingress Protection | IP57, MIL-STD-810G |
| Battery Life | Up to 10.5 hours |
| Output Power | 6 W PEP / 1.8 W carrier |
| Channel Spacing | 8.33 / 25 kHz |
| GPS | Built in |
| Version | Standard, Bluetooth & Navigation |
