Cellular Shrouded Dipole
$346.47 inc GST
The Hi-Tec Aerials SHDC is a compact shrouded dipole for the 700–1000 MHz cellular, trunking and data bands, and ideal for STL links. Stainless steel hardware with a cast aluminium mounting clamp, made in New Zealand.
- 700–750 MHz (LTE band 28) and 920–930 MHz (ISM) models
- 75 MHz bandwidth, 0 dBd, 50 W
- Compact 180 mm element on a 0.3 m boom, 0.3 kg
- Mounts on 25 mm square aluminium tube
- Supplied with a 1 m RG58LL tail and N plug, no clamp
- Customisable: cable length, connector, mounting clamp
A compact dipole for cellular, trunking and data

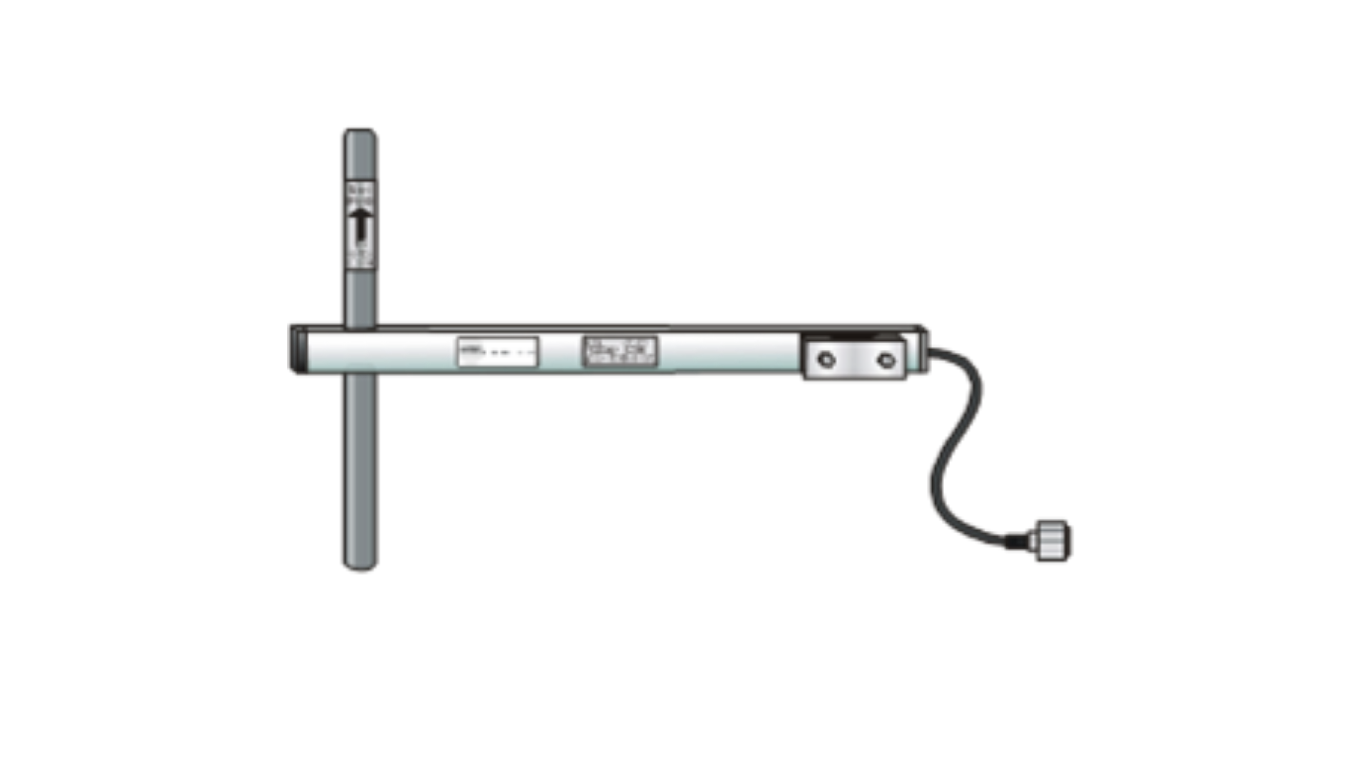

The Hi-Tec Aerials SHDC shrouded dipole is designed for the 700–1000 MHz cellular, trunking and data bands, and is also well suited to studio-to-transmitter (STL) links. Its hardware is stainless steel with a cast aluminium mounting clamp, built to last at exposed sites.
With a 180 mm element on a 0.3 m boom and a weight of only 0.3 kg, it is easy to fit to a building, mast or 25 mm square aluminium tube for fixed cellular routers, telemetry and gateways.
Ordering
Choose the band. As standard the SHDC comes with a 1 m RG58LL tail and an N plug, with no clamp. You can change the cable length, choose an N jack, or add a 25 mm or 38 mm mounting clamp. Contact us for other frequencies in the 700–1000 MHz range. For more gain in one direction, see our cellular yagis; for vehicles, see our coaxial 1/2 wave cellular aerials.
Specifications
| Model | SHDC |
| Number of elements | 1 |
| Frequency range | 700–1000 MHz (see bandwidth) |
| Bandwidth | 75 MHz |
| Gain | 0 dBd |
| Beamwidth E plane | 80° |
| Front-to-back ratio | 0 dB |
| Input impedance | 50 Ω |
| Return loss (VSWR) | <−14 dB (1.5:1) |
| Maximum power | 50 W |
| Cable type | RG58LL |
| Max element length | 180 mm |
| Boom length | 0.3 m |
| Weight | 0.3 kg |
| Mounting tube | 25 mm square aluminium tube |
Additional information
| Weight | N/A |
|---|---|
| Brand | Hi-Tec |
| Band | Cellular |
| Frequency Band | 700–750 MHz (LTE band 28), 920–930 MHz (ISM) |
| Standard Build | RG58LL 1 m tail, N plug, no clamp |
| Customisable | Cable length, connector, mounting clamp |
