5/8 Aerials
Price on application
These compact aerials are ideal for handheld radios and space-constrained setups. Built with a high-tensile helical coil and protected by a flexible silicone rubber casing, they offer reliable performance and durability across VHF and UHF frequencies.

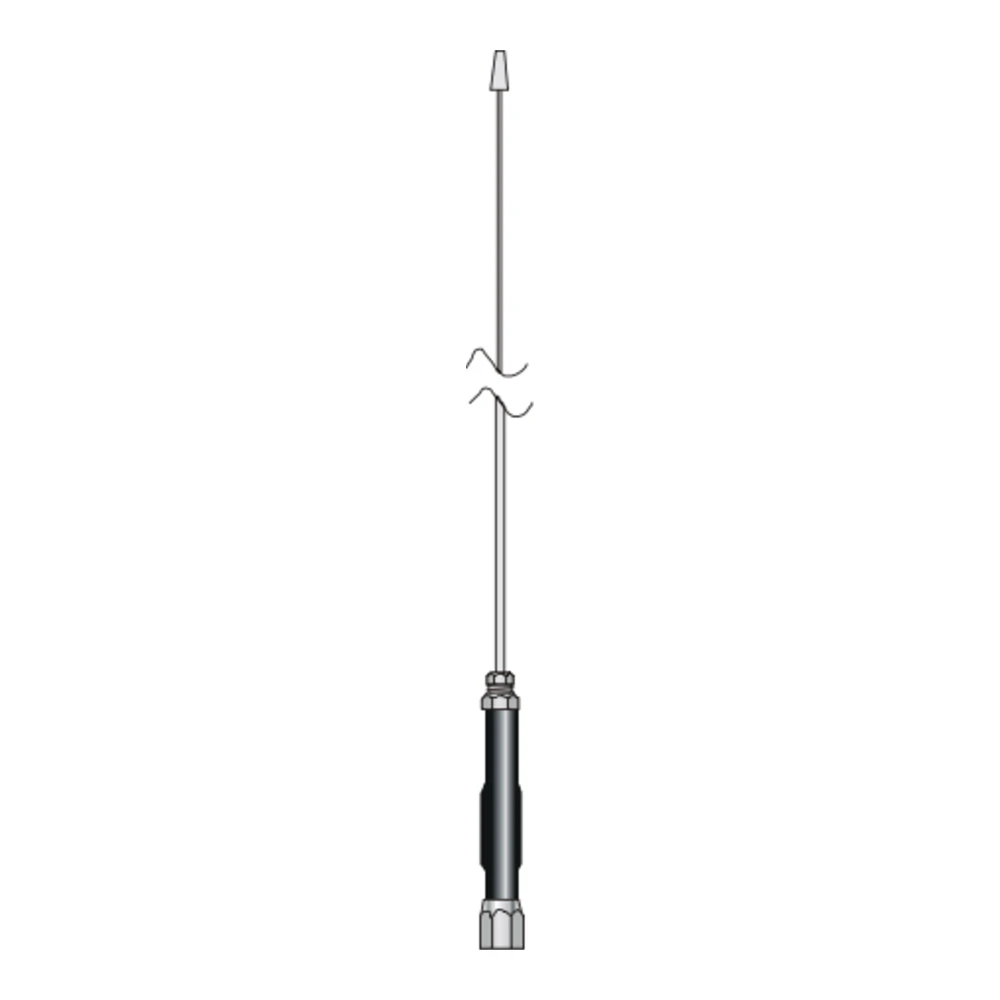

The range of 5/8w aerials offers a rugged and reliable design. VHF models are constructed from solid 6.5mm pultruded fibreglass rod and covered with heat shrink. All fittings are nickel plated.
The 5/8w aerials provide a nominal gain of 3dB with a low angle of radiation.
These 5/8w aerials can be mounted in two ways, either straight onto the aerial bases or with a tilt assembly that goes onto the aerial base and allows the aerial to fold down when not in use.
| Model | Description | Frequency Range (MHz) | Bandwidth (MHz) - 14dB |
| 5/8-ESA | 5/8 Aerial ESA Band | 75 - 80 (see bandwidth) | 3 |
| 5/8-A | 5/8w Aerial A Band | 81 - 88 (see bandwidth) | 3 |
| 5/8-FM | 5/8 Aerial FM Band | 88 - 108 (see bandwidth) | 3 |
| 5/8-AV | 5/8w Aerial Aviation Band | 118 - 136 (see bandwidth) | 3 |
| 5/8-ESB | 5/8w Aerial ESB Band | 138 - 144 (see bandwidth) | 3 |
| 5/8-E | 5/8w Aerial E Band | 151 - 156 (see bandwidth) | 3 |
| 5/8-MM | 5/8w Aerial Marine Band | 156 - 162 (see bandwidth) | 3 |
| 5/8-EE | 5/8 Aerial EE Band | 162 - 170 (see bandwidth) | 3 |
Note - for a tilt base, add a TLT-ASY
Additional information
| Brand | Hi-Tec |
|---|---|
| Band | UHF, VHF |
