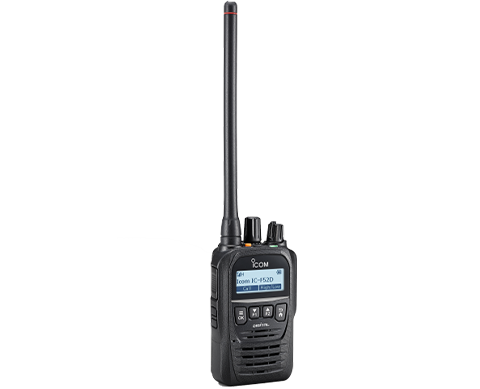

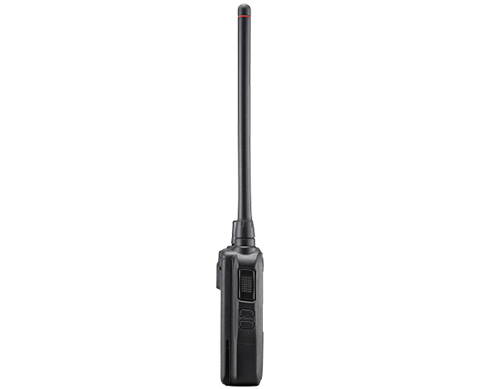

Icom IC-F52D/IC-F62D
$1,779.05 inc GST
The Icom IC-F52D (VHF) and IC-F62D (UHF) are ultra-compact NXDN™ digital handheld radios with built-in Bluetooth®, IP67 waterproofing and MIL-STD-810G toughness. 512 channels, voice recording and active noise cancelling in a radio that fits in your palm. From Signals NZ, an authorised Icom dealer.
The Icom IC-F52D/IC-F62D are Icom's premium compact digital handheld radios, packing advanced features into a body just 91.5 mm tall. They run NXDN™ digital alongside analogue, with built-in Bluetooth® for wireless headsets and data, making them ideal for security, hospitality, event and site teams who want a small, discreet radio without giving up performance.
The IC-F52D covers VHF (136–174 MHz) and the IC-F62D covers UHF in 400–470 MHz or 450–520 MHz versions. These digital handheld radios offer 512 channels in 128 zones, a 14-character display, up to 8 minutes of voice recording and TX/RX active noise cancelling for clear calls in loud environments.
Choose your model
| Model | Description |
| IC-F52D | VHF digital transceiver (136–174 MHz) |
| IC-F62D#L | UHF digital transceiver (400–470 MHz) |
| IC-F62D#H | UHF digital transceiver (450–520 MHz) |
Key features
- NXDN™ digital: AMBE+2™ vocoder, with NXDN Type-D trunking available as an upgrade, plus analogue FM for mixed fleets.
- Built-in Bluetooth®: pair wireless headsets and accessories with no cables.
- Ultra-compact and tough: IP67 waterproof and dust-tight, tested to MIL-STD-810G.
- Active noise cancelling: TX/RX noise cancelling keeps voices clear over background noise.
- Voice recording: record and play back up to 8 minutes of calls.
- 512 channels: 128 zones and a 14-character dot-matrix display.
- Over-the-air programming: update radios without bringing them in.
- GPS ready: add location tracking with the optional HM-233GP GPS speaker-microphone.
Specifications
| Frequency range | VHF 136–174 MHz (IC-F52D); UHF 400–470 MHz or 450–520 MHz (IC-F62D) |
| Digital modes | NXDN™; analogue FM |
| Channels | 512 channels / 128 zones |
| Output power | 5 / 2 / 1 W |
| Audio output | 800 mW (internal speaker); 1000 mW (external speaker) |
| Waterproof rating | IP67 |
| Durability | MIL-STD-810G |
| Bluetooth | Built-in |
| Battery life | Up to 13 hours (BP-290); up to 18.5 hours (optional BP-294) |
| Operating temperature | −30 °C to +60 °C |
| Dimensions | 56 × 91.5 × 29 mm (W × H × D, with BP-290) |
| Weight | Approx. 230 g (with battery and belt clip) |
Download IC-F52D/IC-F62D Brochure (PDF)
What's in the box
- IC-F52D or IC-F62D transceiver
- BP-290 Li-ion battery pack
- Antenna
- MBB-3 belt clip
Licensing, programming & support
Signals NZ handles the full RSM licensing process and programmes your radios before they leave us, so they're ready to use out of the box. Our radio service team can look after repairs and maintenance from there.
Compare the range
Need a full-size digital radio with 1500 mW audio? See the Icom IC-F1100D/IC-F2100D. Analogue only? The Icom IC-F1000/IC-F2000 is a proven, economical choice.
Get a quote for supply and programming across your team.
Additional information
| Weight | 0.23 kg |
|---|---|
| Dimensions | 9.2 × 5.6 × 2.9 cm |
| Frequency Band | UHF – High Band (450-512MHz), UHF – Low Band (400-470MHz), VHF – All Band (136-174MHz) |
| Digital Modes | NXDN, Analogue |
| Output Power | 5 / 2 / 1 W |
| Channels | 512 (128 zones) |
| Waterproof Rating | IP67 |
| Bluetooth | Built-in |
| Battery Life | Up to 13 hours (BP-290) |
