Icom IC-FR5300/6300 Repeater
Price range: $3,353.40 through $4,403.35 inc GST
The Icom IC-FR5300 (VHF) and IC-FR6300 (UHF) are second-generation IDAS digital repeaters: two channels in one 2U rack box, with analogue and NXDN digital, and an upgrade path from a single site to simulcast and multi-site trunking. Signals is an authorised Icom dealer.
- 50 W at 50% duty, or 25 W continuous
- Add a second UR-FR5300/UR-FR6300 module for two independent repeaters in one chassis
- Mixed analogue and digital, 32 channels
- Scales to simulcast, multi-site conventional and trunking
- IP remote maintenance with SNMP and Syslog
- VHF 136–174 MHz, UHF 400–470 or 450–520 MHz
Two repeaters in one 2U box
The IC-FR5300 series is Icom's second-generation IDAS repeater. It keeps system compatibility with the original IC-FR5000 series on a completely new CPU and FPGA platform, and frequency stability can be tightened to ±0.1 ppm using a 1 pps reference from a GNSS antenna.

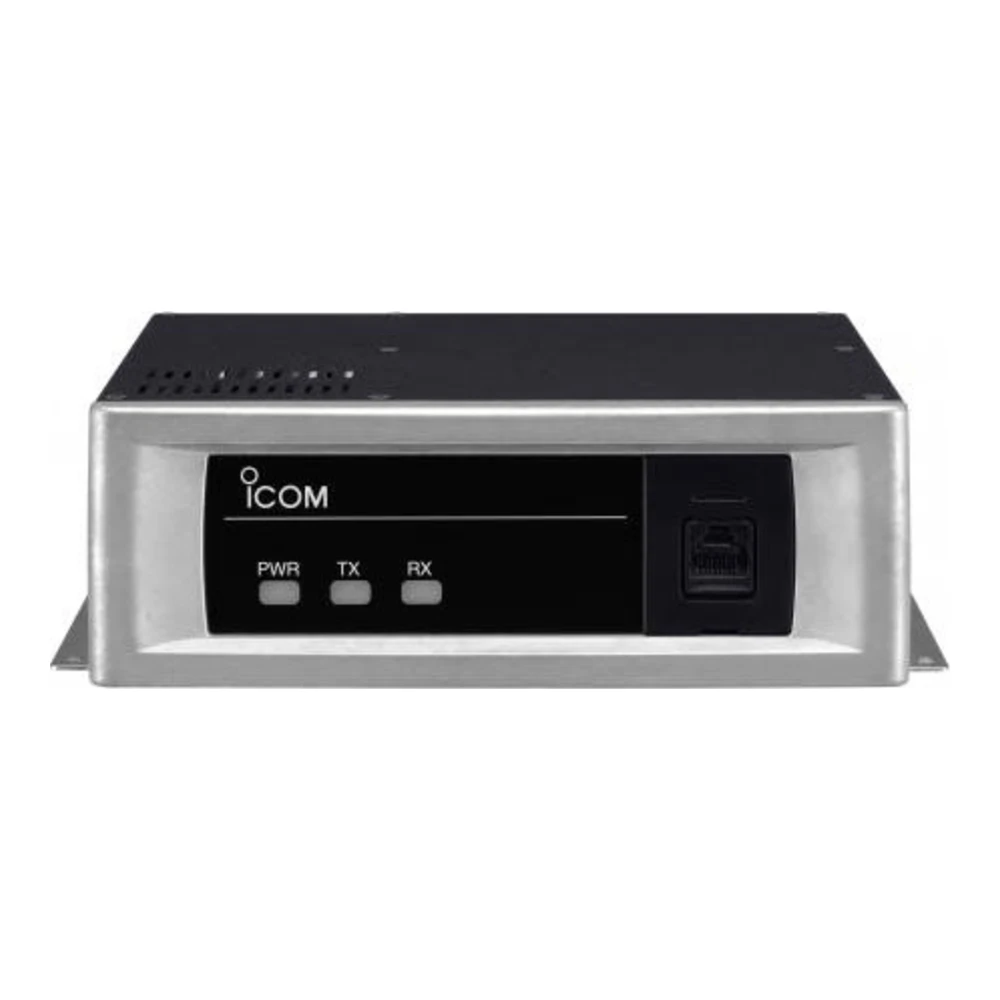

Fit an optional UR-FR5300 (VHF) or UR-FR6300 (UHF) module and the chassis runs two independent repeaters, saving rack space and cost at the site. Each repeater delivers 50 W at 50% duty cycle, or 25 W at 100% duty cycle for continuous use.
Grow from one site to a wide-area network
With the optional UC-FR5300 controller board and CF card, the same repeater scales from a single site to digital simulcast, multi-site conventional or multi-site trunking (trunking needs compatible IDAS radios). Mixed analogue and digital operation lets you migrate a fleet gradually, decoding up to 16 CTCSS, DTCS or RAN codes per channel.
Built for remote sites

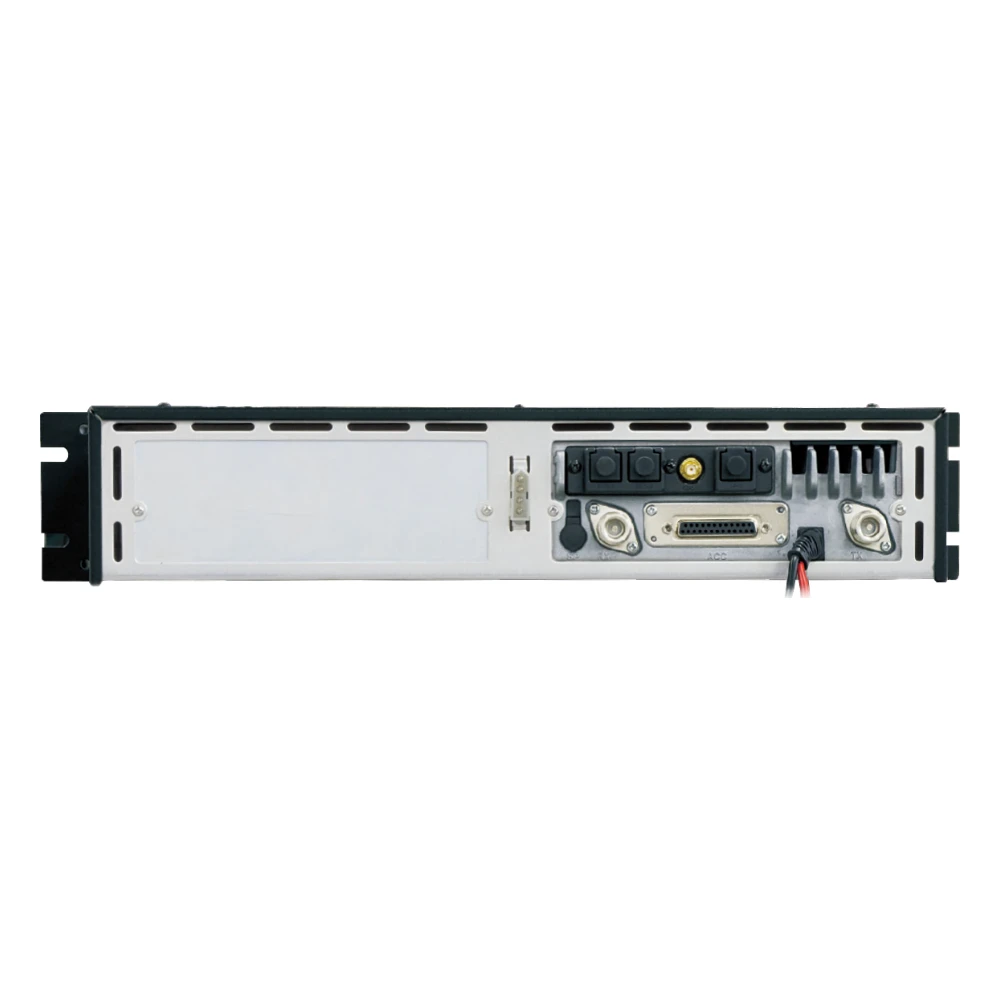

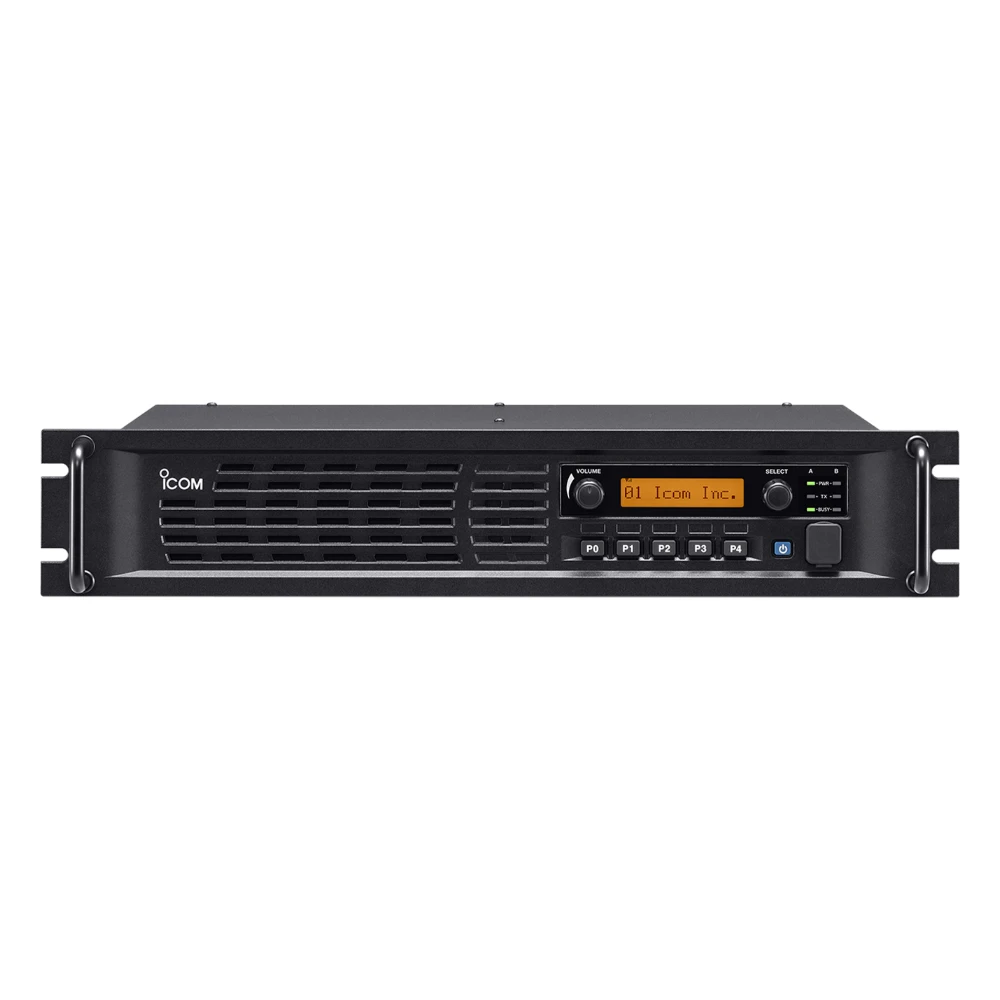

IP remote maintenance lets you program the repeater and set its IP address over the network, with SNMP traps and Syslog for monitoring. A programmable 25-pin D-SUB accessory connector handles external control and audio. The front panel has a 12-digit display, five programmable buttons and an internal speaker. Receiver voting, CW ID, DTMF, 5-tone decode, a low-voltage alert and VE-PG4 RoIP gateway support are built in.
Configurations and pricing
Choose a complete rack-mount repeater, or an add-on module to fit a second repeater into an existing chassis. Signals is an authorised Icom dealer, and we can design the site, supply base station antennas and duplexers, handle RSM licensing and install it. Contact us about simulcast or multi-site systems. See all our repeaters.
| Model | Description | Retail (excl GST) |
| IC-FR5300 | 50 W VHF rack mount repeater | $3,829.00 |
| IC-FR6300#H | 50 W UHF rack mount repeater (450–520 MHz) | $3,829.00 |
| IC-FR6300#L | 50 W UHF rack mount repeater (400–470 MHz) | $3,829.00 |
| UR-FR5300 | 50 W VHF repeater module | $2,916.00 |
| UR-FR6300#H | 50 W UHF repeater module (450–520 MHz) | $2,916.00 |
| UR-FR6300#L | 50 W UHF repeater module (400–470 MHz) | $2,916.00 |
Specifications
| Frequency coverage | VHF 136–174 MHz; UHF 400–470 MHz or 450–520 MHz |
| Channels | 32 channels, 1 zone |
| Modes | Analogue FM and NXDN digital (IDAS) |
| Output power | 50 W, 25 W, 5 W |
| Duty cycle | 50 W at 50%, 25 W at 100% |
| Frequency stability | ±1.0 ppm; ±0.1 ppm with GNSS reference |
| Power supply | 13.2 V DC nominal |
| Current drain | TX 15.0 A max (50 W), 8.0 A (25 W); RX 1.9 A max |
| Antenna impedance | 50 Ω |
| Operating temperature | −25 °C to +55 °C |
| Analogue sensitivity (12 dB SINAD) | −119 dBm (VHF), −117 dBm (UHF) typ. |
| Audio output | 3.9 W typ. |
| Dimensions | 483 × 88 × 260 mm (2U rack); module 176 × 60 × 194 mm |
| Weight | 5.78 kg; module 2.1 kg |
Options
- UR-FR5300 / UR-FR6300 second repeater module
- UC-FR5300 controller board with CF-FR5300SC (simulcast), CF-FR5000MC (multi-site conventional) or CF-FR5000MT (multi-site trunking)
- UX-241 GNSS antenna (5 m cable)
- SP-35 / SP-35L external speaker, HM-152 hand mic, SM-26 desk mic
- VE-PG4 RoIP gateway
Additional information
| Weight | N/A |
|---|---|
| Frequency Band | UHF – High Band (450-520MHz), UHF – Low Band (400-470MHz), VHF – All Band (136-174MHz) |
| Configuration | Rack mount repeater, Add-on repeater module |
| Modes | Analogue, NXDN digital (IDAS) |
| Output Power | 50 W (50% duty) / 25 W (100% duty) |
