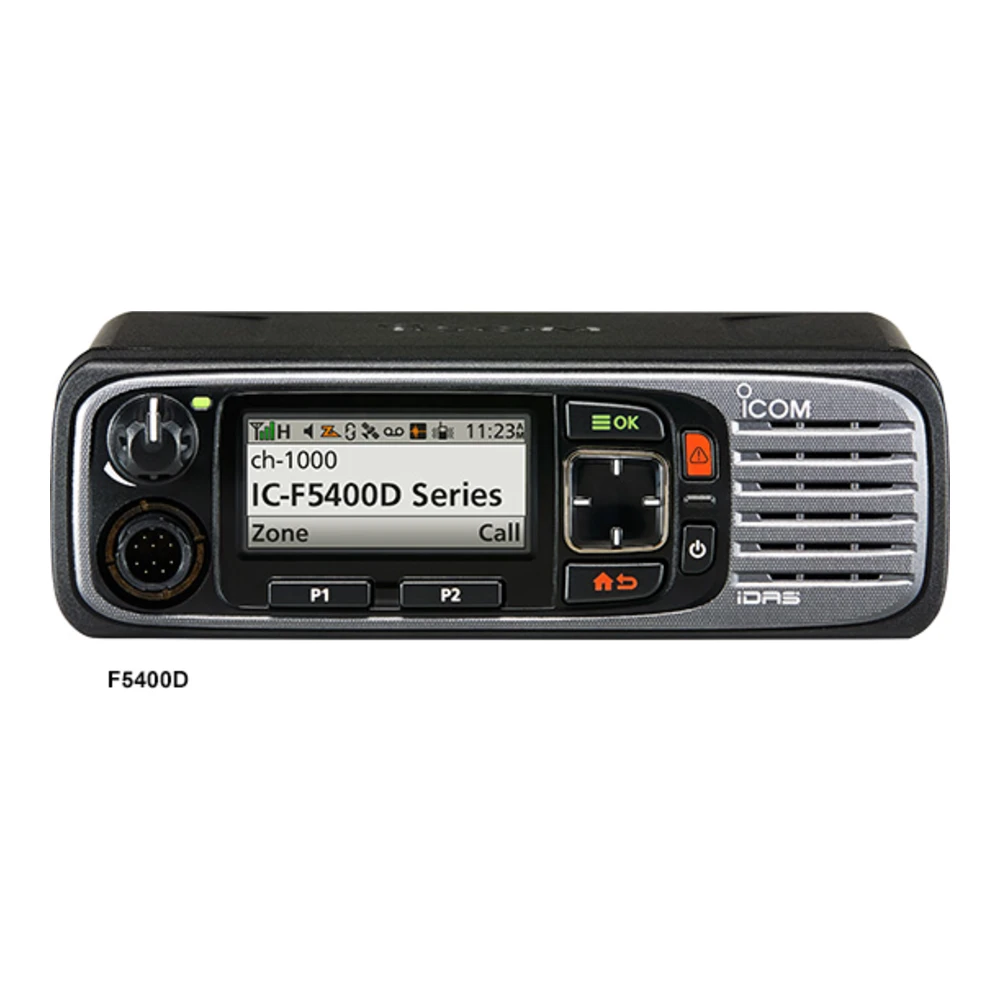

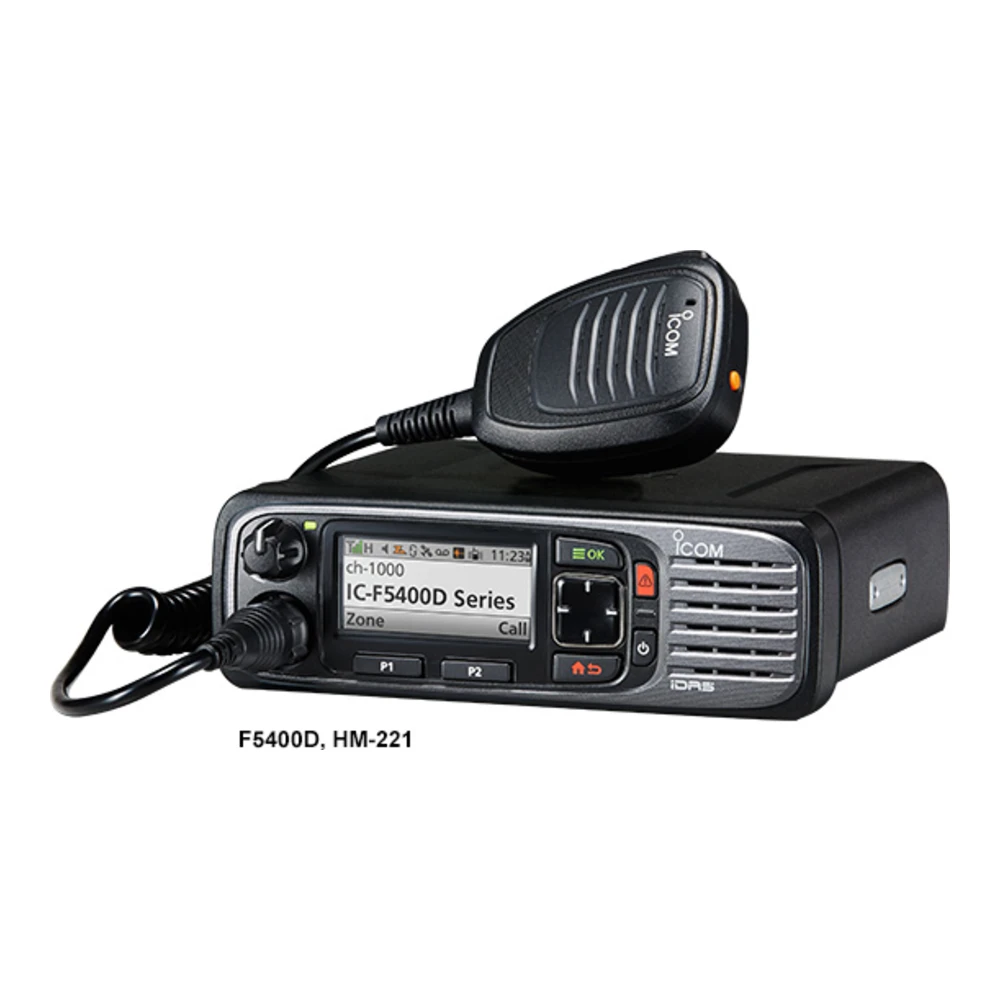

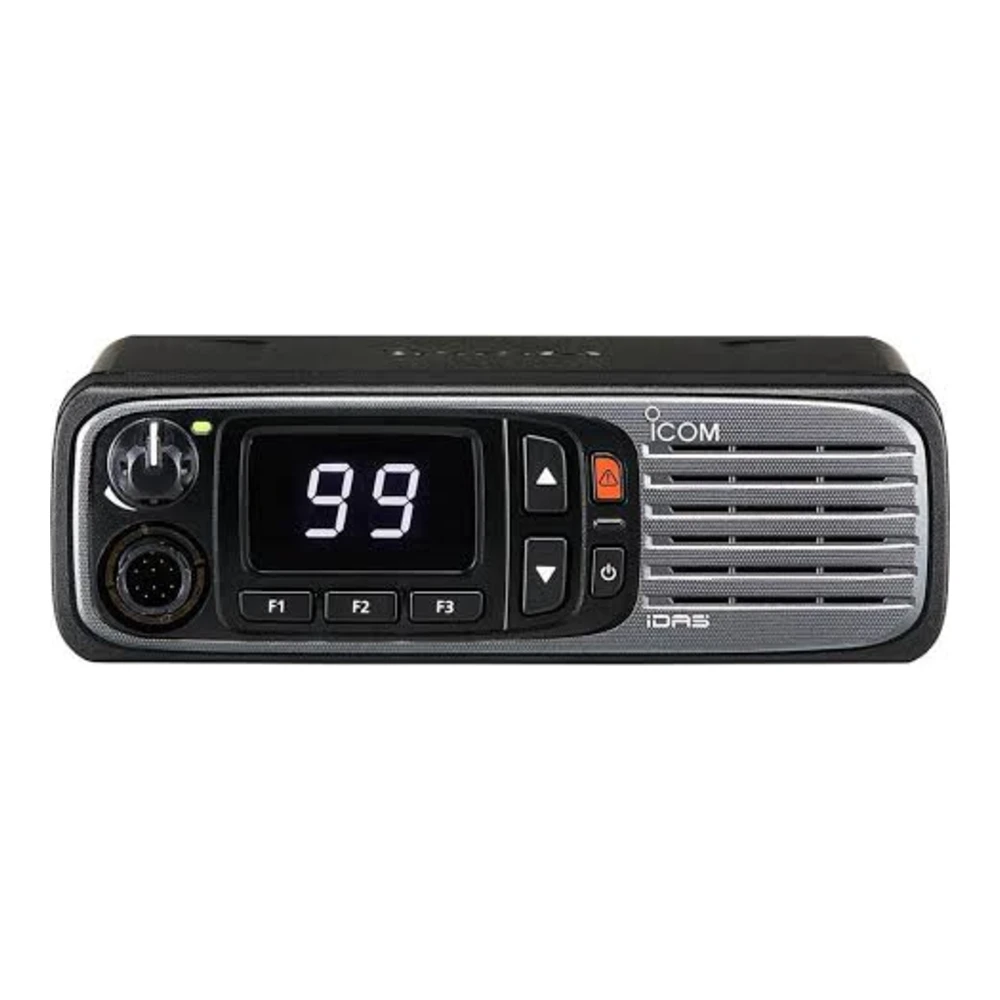

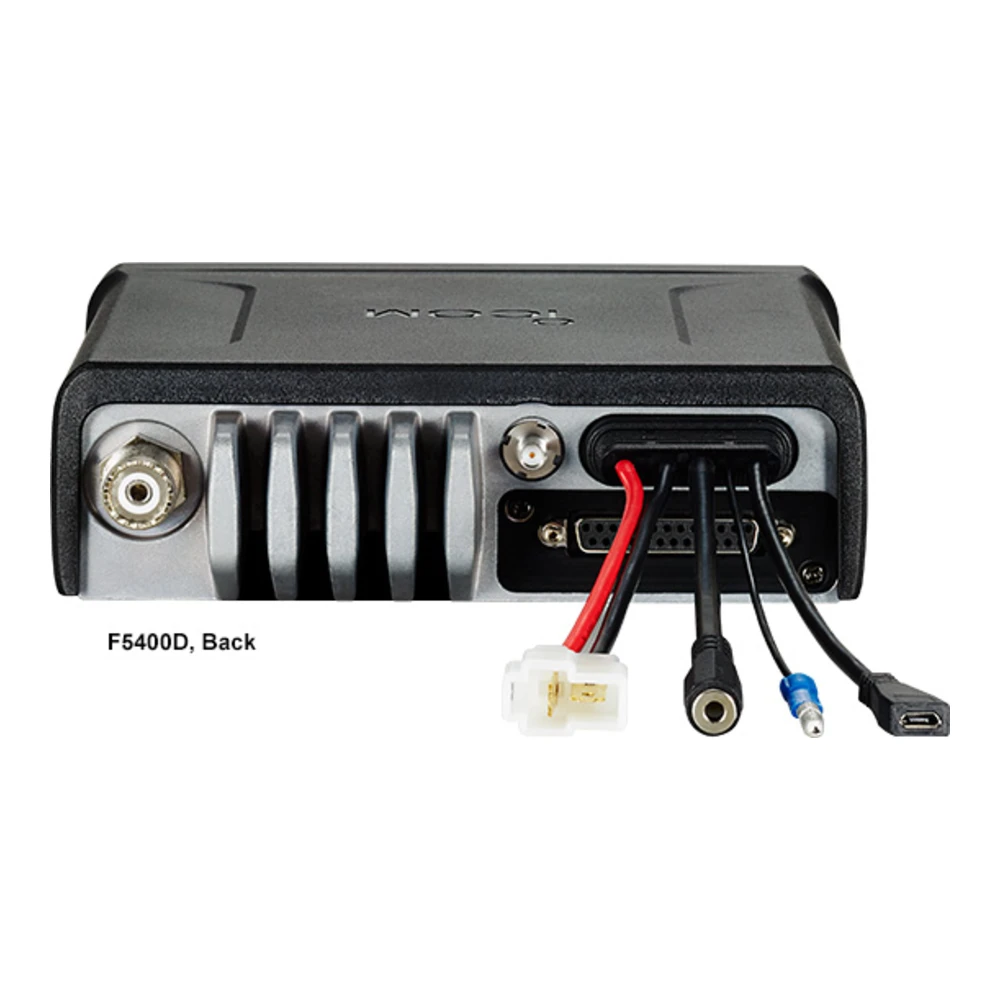

Icom IC-F5400D/F6400D
$2,096.45 inc GST
The Icom IC-F5400D (VHF) and IC-F6400D (UHF) are next-generation IDAS digital mobile radios with NXDN and analogue, trunking-ready, with built-in Bluetooth, GPS support and voice recording. Rugged IP55 and MIL-STD-810G. Signals is an authorised Icom dealer.
- NXDN digital and analogue FM, mixed mode
- Upgradable to NXDN Type-D single and multi-site trunking
- 1,024 channels in 128 zones (up to 4,000 with key)
- 50 W VHF / 45 W UHF, 4 W audio
- Bluetooth, GPS (with UX-241), microSD voice recording, noise cancelling
- DES encryption standard, AES optional; lone worker and remote stun/kill
Smart digital mobile radio for fleets
The IC-F5400D series is Icom's new-generation IDAS mobile radio, built on a flexible, upgradable multi-protocol platform. It runs NXDN digital and analogue FM, with mixed analogue and digital operation so you can migrate a fleet over time, and can be upgraded with a licence key to NXDN Type-D single-site and multi-site trunking or multi-site conventional over IP.
With 1,024 channels in 128 zones (expandable to 4,000), 50 W of transmit power on VHF and 45 W on UHF, and 4 W of audio, it suits trucks, buses, utility fleets and base stations alike.
Features that work hard
- Built-in Bluetooth for wireless headsets and data.
- GPS position reporting with the UX-241 GPS antenna, plus short data messages up to 100 characters.
- Voice recording to microSD, active noise cancelling on transmit and receive, and an audio equaliser.
- Security: DES encryption as standard, AES with the UT-134 unit, voice scrambler, and remote kill, stun and revive.
- Safety: lone worker function, priority and voting scan, emergency calls.
- Fleet management: over-the-air programming (OTAP) and rekeying (OTAR), and over-the-air alias.
- Flexible installation: remote-mount controller, dual head, or the COMMANDMIC for a compact install.
- Rugged: IP55 dust and water-jet protection and MIL-STD-810G shock, vibration and environmental testing.
Configurations and pricing
Choose VHF or UHF. Signals is an authorised Icom dealer, and we can program, install and support your fleet, supply a vehicle antenna, and set up a base station with our 13.8 V power supply or a repeater such as the Icom IC-FR5300/6300.
| Model | Description | Retail (excl GST) |
| IC-F5400D | VHF digital transceiver (136–174 MHz) | $1,823.00 |
| IC-F6400D#L | UHF digital transceiver (400–470 MHz) | $1,823.00 |
| IC-F6400D#H | UHF digital transceiver (450–520 MHz) | $1,823.00 |
Specifications
| Frequency coverage | VHF 136–174 MHz; UHF 400–470 MHz or 450–520 MHz |
| Modes | NXDN digital (12.5 kHz), analogue FM, mixed |
| Channels | 1,024 channels, 128 zones (4,000 with ISL-CHEX) |
| Output power | VHF 50/25/5 W; UHF 45/25/4.5 W |
| Audio output | 4.0 W typ. (4 Ω) |
| Power supply | 13.6 V DC nominal |
| Current drain | TX approx. 9.0 A (50 W VHF), 8.8 A (45 W UHF); RX 370 mA standby |
| Frequency stability | ±1.0 ppm |
| Sensitivity | 0.22 µV analogue (12 dB SINAD), 0.25 µV digital typ. |
| Operating temperature | −30 °C to +60 °C |
| Dimensions | 174 × 55 × 150 mm |
| Weight | Approx. 1.5 kg |
| Ingress protection | IP55 |
| Environmental | MIL-STD-810G |
Options
- HM-220 / HM-220T / HM-221 / HM-221T hand microphones, SM-29 desk microphone
- HM-218 COMMANDMIC and RMK-5 / RMK-7 remote mount kits
- SP-30, SP-35, SP-35L external speakers
- UX-241 GPS antenna
- UT-134 encryption unit; ISL-UGMTR trunking, ISL-AKAES AES, ISL-CHEX channel expansion keys
- OPC-1132 (3 m) and OPC-347 (7 m) DC power cables
Additional information
| Weight | N/A |
|---|---|
| Frequency Band | UHF – High Band (450-520MHz), UHF – Low Band (400-470MHz), VHF – All Band (136-174MHz) |
| Modes | NXDN digital, Analogue FM |
| Output Power | 50 W VHF / 45 W UHF |
| Protection | IP55, MIL-STD-810G |
