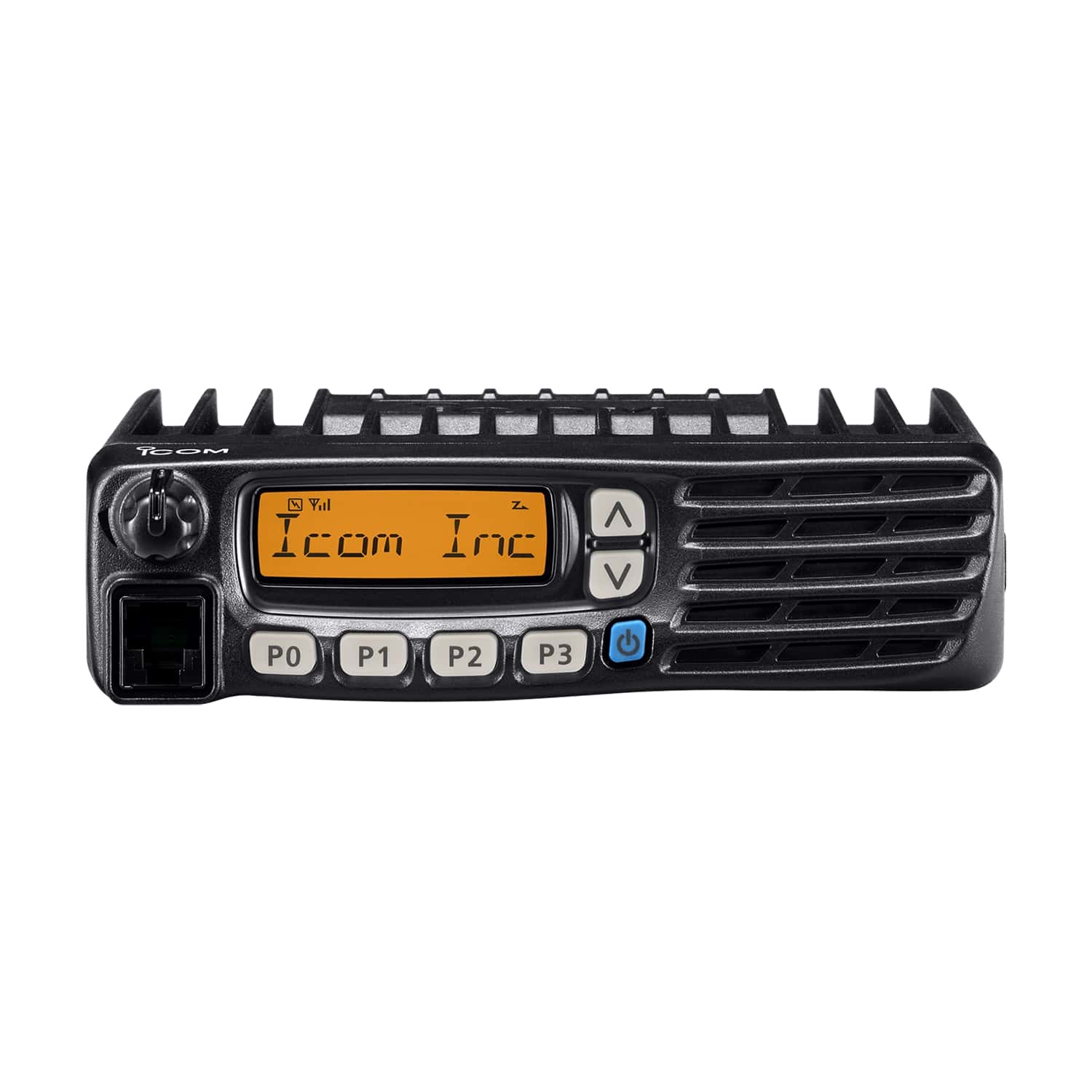

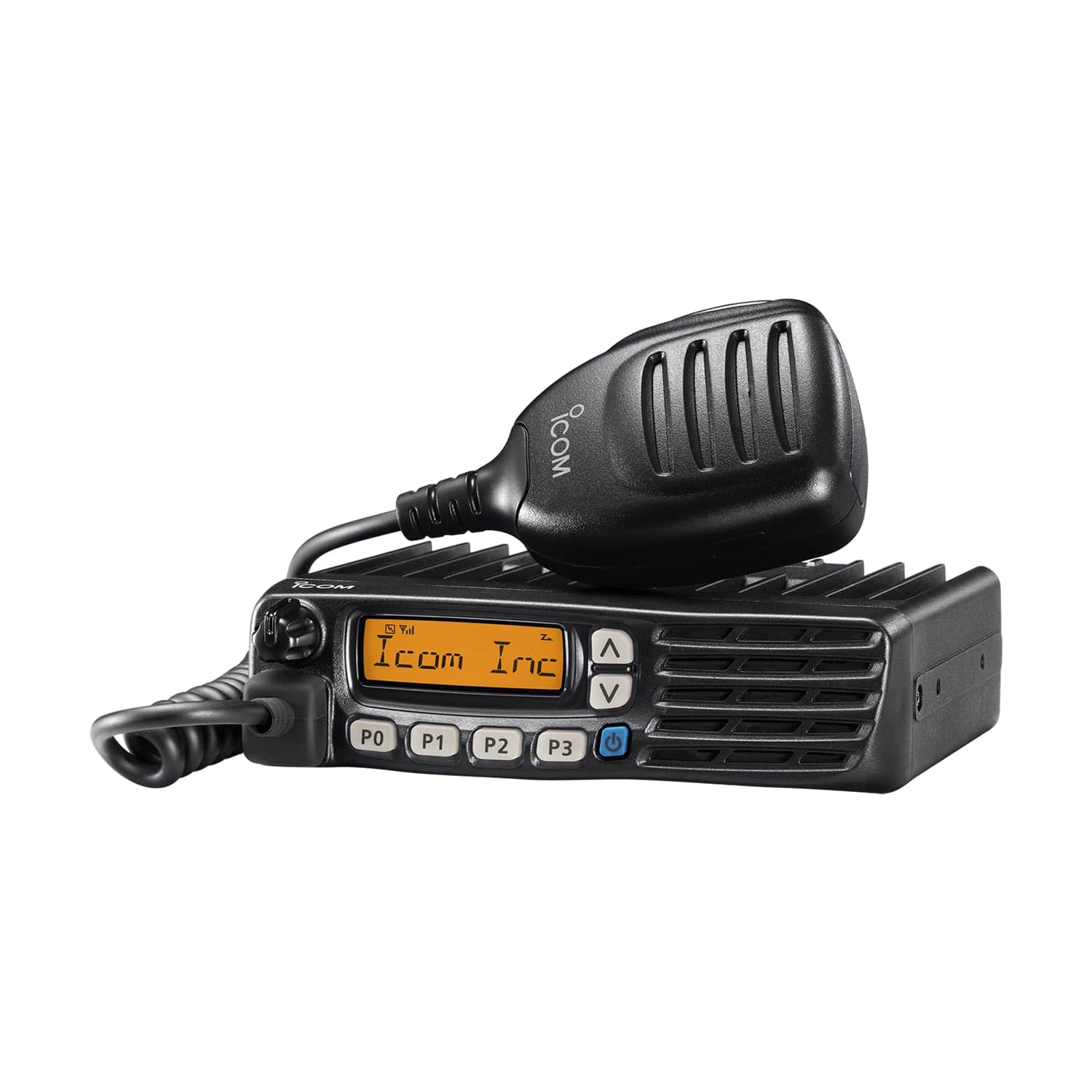

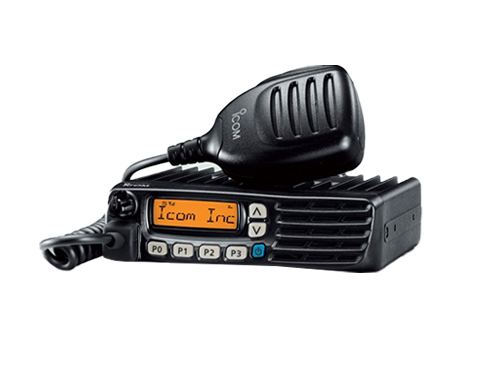

Icom IC-F5023 VHF Mobile Radio
$1,079.85 inc GST
The Icom IC-F5023 is a rugged 25 W VHF analogue mobile radio for vehicles, plant and base stations. 128 channels in 8 zones, built-in 2-tone, 5-tone, CTCSS, DTCS and MDC 1200 signalling, and a loud 4 W front-mounted speaker. MIL-STD-810F tough and made for everyday commercial use. Supplied and installed by Signals NZ, an authorised Icom dealer.
The Icom IC-F5023 is a dependable VHF analogue mobile radio for businesses that want proven, no-fuss communication from their vehicles and machinery. It's a popular choice for farming, forestry, councils, transport and contractors running VHF networks, with Icom's reputation for reliability behind it.
This VHF mobile radio offers up to 25 W output, 128 channels in 8 zones and a full set of built-in analogue signalling, including MDC 1200 compatibility with PTT ID and stun, kill and revive functions for fleet control. A 4 W front-facing speaker keeps calls clear in noisy cabs.
Key features
- 25 W VHF output: selectable 25 / 10 / 2.5 W for range or efficiency.
- 128 channels: organised into 8 zones.
- Built-in signalling: 2-tone, 5-tone, CTCSS and DTCS, MDC 1200 compatible.
- Fleet control: PTT ID plus radio stun, kill and revive.
- Loud, clear audio: 4 W front-mounted speaker, with an external speaker connector.
- Rugged build: MIL-STD-810F construction for vehicles and machinery.
Specifications
| Frequency range | VHF 136–174 MHz |
| Mode | Analogue FM |
| Channels | 128 channels / 8 zones |
| Channel spacing | 12.5 / 25 kHz |
| Output power | 25 / 10 / 2.5 W |
| Signalling | 2-tone, 5-tone, CTCSS, DTCS, MDC 1200 compatible |
| Audio output | 4 W typical (front-mounted speaker) |
| Power supply | 13.6 V DC |
| Durability | MIL-STD-810F |
| Dimensions | 150 × 40 × 167.5 mm (W × H × D) |
| Weight | 1.1 kg |
| Operating temperature | −30 °C to +60 °C |
Download IC-F5023 Brochure (PDF)
What's in the box
- IC-F5023 transceiver
- HM-152 hand microphone
- DC power cable
- Mounting bracket kit
Installation, licensing & support
Our technicians install mobile radios into cars, utes, trucks, tractors and machinery. Signals NZ also handles the full RSM licensing process and programmes your radios before installation. Our radio service team can look after your fleet from there.
Complete your setup
Add a VHF mobile antenna, pre-made coax leads and a magnetic mount for vehicles you can't drill. Moving to digital? See the Kirisun DM588 DMR mobile radio. For UHF CB, see the Icom IC-410PRO.
Get a quote for supply and installation across your fleet.
Additional information
| Weight | 1.1 kg |
|---|---|
| Dimensions | 16.8 × 15 × 4 cm |
| Frequency Band | VHF – All Band (136-174MHz) |
| Output Power | 25 / 10 / 2.5 W |
| Channels | 128 (8 zones) |
| Audio Output | 4 W front-mounted speaker |
| Durability | MIL-STD-810F |
