Icom IC-F5130D/IC-F6130D
$1,174.15 inc GST

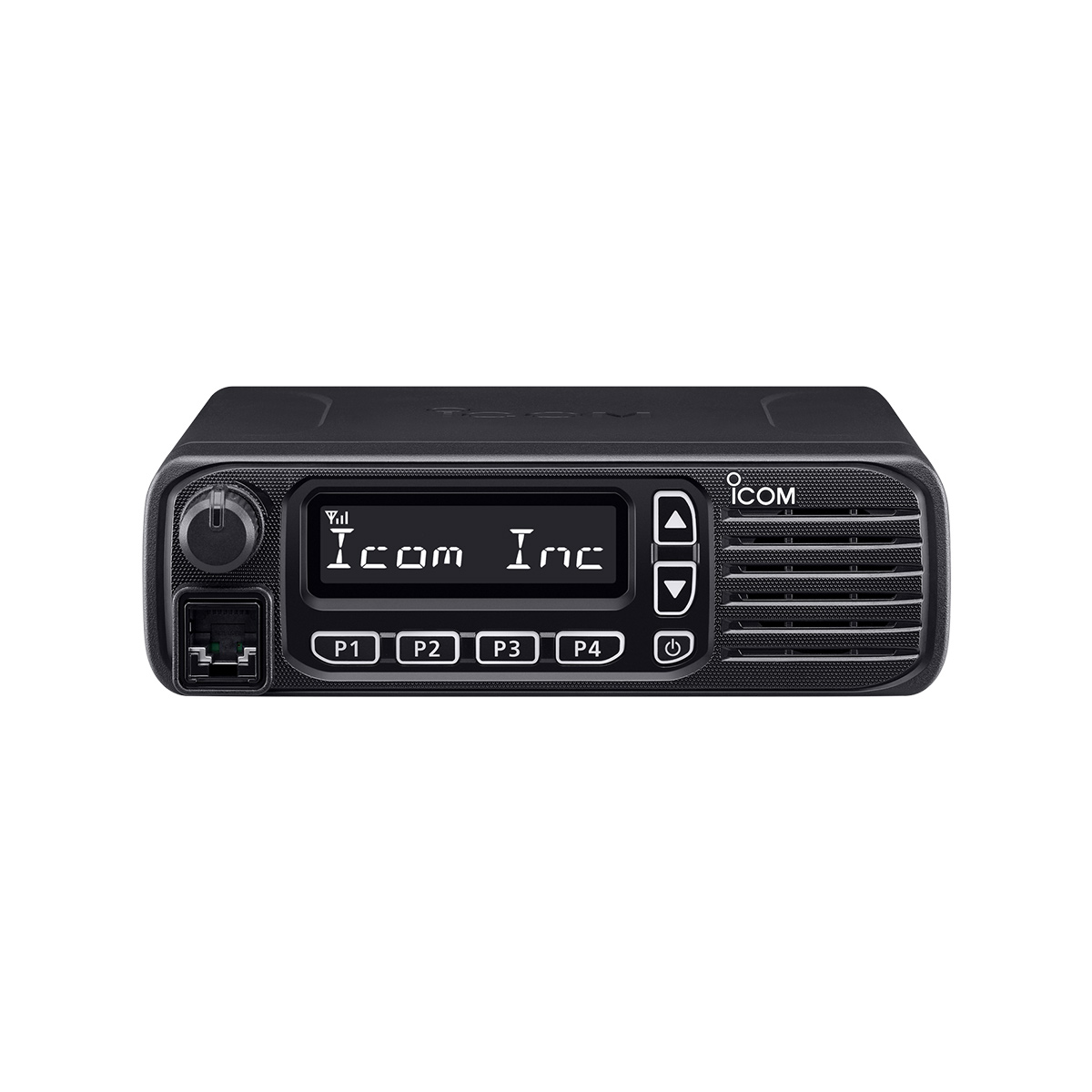

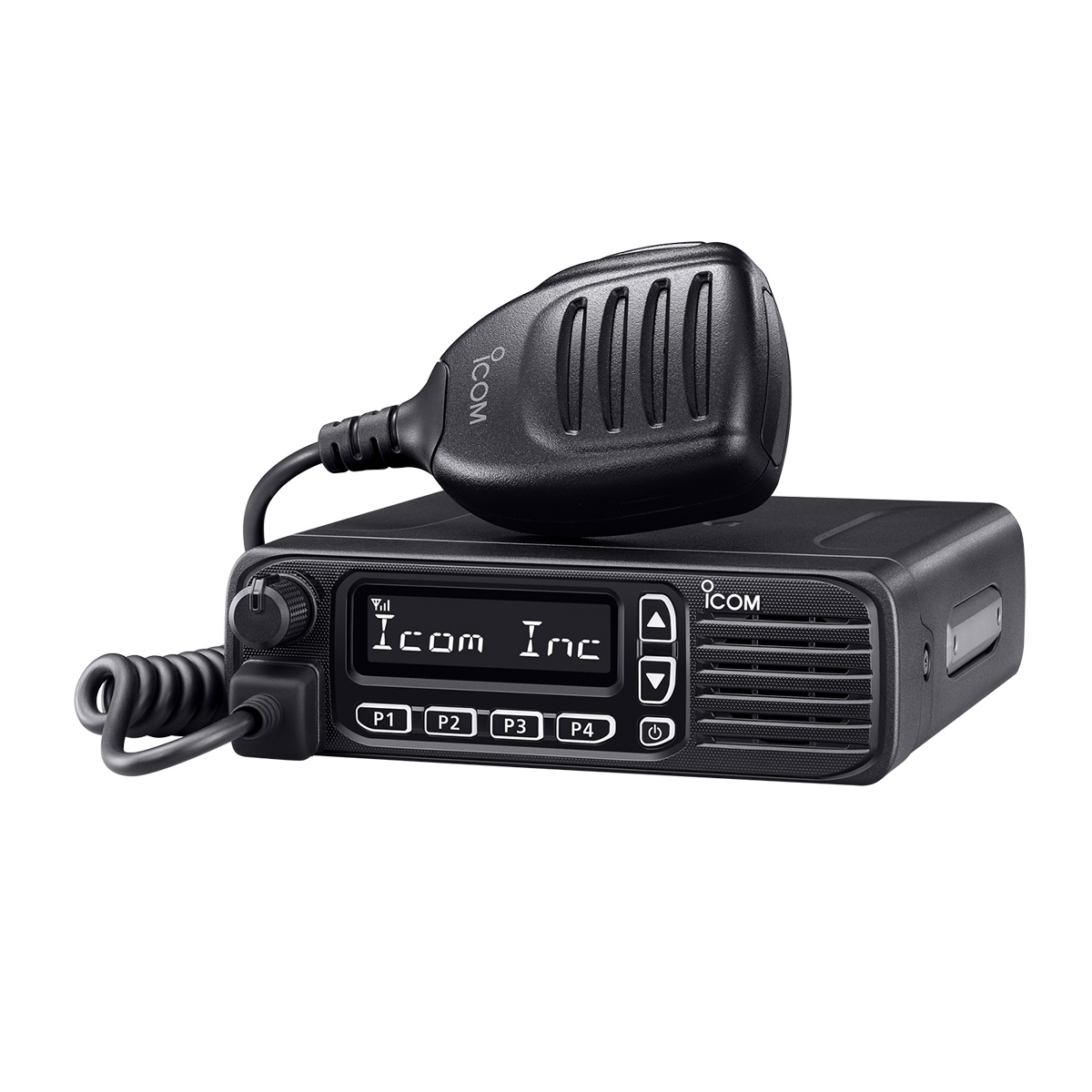

The Icom IC-F5130D (VHF) and IC-F6130D (UHF) are 25 W NXDN™ digital mobile radios for vehicles and fleets, with analogue for mixed networks, NXDN Type-D trunking and IP multi-site support. 128 channels, a loud 4 W front-mounted speaker, GPS receiver connection and MIL-STD-810G toughness. Supplied and installed by Signals NZ, an authorised Icom dealer.
The Icom IC-F5130D/IC-F6130D are compact NXDN™ digital mobile radios for vehicle fleets that want clear digital voice and room to grow. They run NXDN digital and analogue, so they slot into existing analogue networks and are ready for conventional, trunked, simulcast or IP multi-site NXDN systems as your network develops.
The IC-F5130D covers VHF (136–174 MHz) and the IC-F6130D covers UHF (400–520 MHz). These digital mobile radios pair perfectly with Icom's IC-F1100D/IC-F2100D NXDN handhelds for a complete Icom digital fleet.
Choose your model
| Model | Description |
| IC-F5130D | VHF digital transceiver (136–174 MHz) |
| IC-F6130D | UHF digital transceiver (400–520 MHz) |
Key features
- NXDN™ digital and analogue: NXDN conventional, Type-D single-site trunking, simulcast and multi-site conventional over IP.
- 25 W output: selectable power levels for range or efficiency.
- 128 channels: organised into 8 zones.
- Clear display: high-contrast, wide-angle black-background LCD with 8-character alphanumeric display.
- Loud audio: 4 W front-mounted speaker for noisy cabs.
- GPS ready: GPS receiver connection for vehicle location tracking.
- Rugged build: MIL-STD-810G for shock, vibration and temperature.
Specifications
| Frequency range | VHF 136–174 MHz (IC-F5130D); UHF 400–520 MHz (IC-F6130D) |
| Mode | NXDN™ digital; analogue FM |
| Output power | 25 W (selectable Hi / L2 / L1) |
| Channels | 128 channels / 8 zones |
| Display | 8-character alphanumeric LCD |
| Audio output | 4 W (front-mounted speaker) |
| GPS | GPS receiver connection |
| Power supply | 13.2 V DC |
| Durability | MIL-STD-810G |
| Operating temperature | −30 °C to +60 °C |
| Dimensions | 150 × 45 × 151.8 mm (W × H × D) |
| Weight | 1.23 kg |
Download IC-F5130D/IC-F6130D Brochure (PDF)
Installation, licensing & support
Our technicians install mobile radios into cars, utes, trucks, buses and machinery. Signals NZ also handles the full RSM licensing process and programmes your radios before installation. Our radio service team can look after your fleet from there.
Complete your setup
Add a mobile antenna, pre-made coax leads and a magnetic mount. Match your handhelds with the Icom IC-F1100D/IC-F2100D, or see the analogue Icom IC-F5023.
Get a quote for supply and installation across your fleet.
Additional information
| Weight | 1.23 kg |
|---|---|
| Dimensions | 15.2 × 15 × 4.5 cm |
| Frequency Band | UHF – All Band (400-520MHz), VHF – All Band (136-174MHz) |
| Digital Mode | NXDN, Analogue |
| Channels | 128 (8 zones) |
| Audio Output | 4 W front-mounted speaker |
| Durability | MIL-STD-810G |
| Output Power | 25 W |
