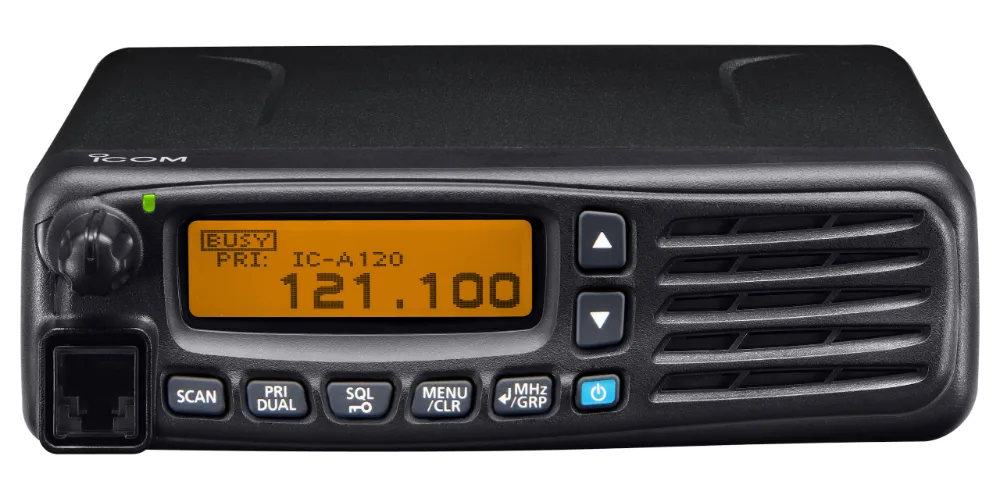

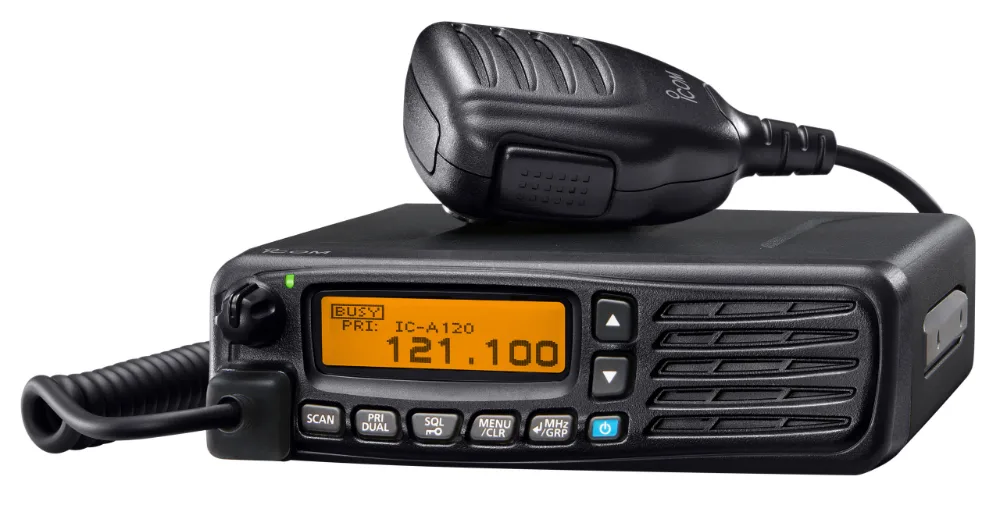

Icom IC-A120E VHF Airband Radio
$2,641.55 inc GST
The Icom IC-A120E is a top-performance mobile VHF airband radio for ground vehicles, airside operations and base installations. It delivers 36 W PEP (9 W carrier), 8.33/25 kHz channel spacing, built-in Active Noise Cancelling for noisy airport environments and IP54 dust and water resistance, with optional Bluetooth headset connectivity.
The Icom IC-A120E is built for ground use: airport service vehicles, tugs and ground support equipment, fuel trucks, fire and rescue vehicles, and airfield operations rooms. Its 36 W PEP (9 W carrier) output gives strong, reliable range, and it runs from either 12 V or 24 V systems, so it suits cars, trucks and heavy vehicles alike.
Built-in Active Noise Cancelling (ANC) reduces background noise in both received and transmitted audio, which makes a real difference among running engines and aircraft. The Automatic Noise Limiter (ANL) cuts pulse-type noise such as engine ignition. IP54 dust protection and water resistance mean it can also be fitted in open-air vehicles.
Key features
- 36 W PEP / 9 W carrier RF output power.
- 8.33 kHz and 25 kHz channel spacing across 118.000–136.992 MHz.
- Active Noise Cancelling (ANC) for receive and transmit audio, plus ANL for ignition noise (ANC and ANL cannot be used at the same time).
- IP54 dust protection and water resistance, and MIL-STD-810G.
- Full dot-matrix LCD with clear alphanumeric characters and icons, and front-panel programming that can be restricted if needed.
- Optional Bluetooth headset connectivity with the UT-133A unit, including side tone with the VS-3 headset.
- Dualwatch and on-hook scan: scanning starts automatically when the microphone is hung up and stops when it is lifted.
- Side tone with a third-party aviation headset via the optional OPC-871A adapter.
- 200 memory channels with 12-character names, and power-on password protection.
- 12 V and 24 V compatible, with CI-V control, PC programming and VE-PG3 RoIP gateway interconnection.
- Compliant with European E-marking for installation in vehicles.
Specifications
| Frequency range | 118.000–136.992 MHz (Tx/Rx) |
| Channel spacing | 25 / 8.33 kHz |
| Emission | 6K80A3E, 5K00A3E |
| Memory channels | 200 |
| Output power | 36 W PEP / 9 W carrier (at 13.75 V) |
| Power supply | 13.75 V / 27.5 V DC |
| Current drain | Tx 5.0 A max / Rx 4.0 A max. audio, 0.5 A standby (at 13.75 V) |
| Sensitivity | Less than 1.8 µV (12 dB SINAD, CCITT filter) |
| Spurious response | More than 70 dB |
| Audio output | 1.5 W internal speaker, more than 10 W external speaker (8 Ω), more than 100 mW headphone (500 Ω) |
| Antenna connector | SO-239, 50 Ω |
| Ingress protection | IP54 |
| Durability | MIL-STD-810G |
| Operating temperature | –20°C to +55°C |
| Dimensions | 161 × 45 × 175 mm (projections not included) |
| Weight | 1.5 kg (main unit) |
Download IC-A120E Brochure (PDF)
What's in the box
- IC-A120E radio
- HM-216 hand microphone
- Microphone hanger kit
- DC power cable
- Mounting bracket kit
- Fuses
Optional accessories include the HM-217 speaker-microphone with up/down and programmable buttons, UT-133A Bluetooth unit, VS-3 Bluetooth headset, OPC-871A headset adapter for third-party aviation headsets, and the VE-PG3 RoIP gateway with OPC-2275 cable for interconnecting with other radio systems.
Compare the range
Need a handheld as well? See the Icom IC-A25CE with GPS and optional Bluetooth and navigation, or the great-value Icom IC-A16E.
Get a quote for supply and vehicle installation.
Additional information
| Weight | 1.5 kg |
|---|---|
| Dimensions | 17.5 × 16.1 × 4.5 cm |
| Brand | Icom |
| Band | Airband |
| Technology | Analogue |
| Frequency Range | VHF airband 118–137 MHz |
| Channel Spacing | 8.33 / 25 kHz |
| Output Power | 36 W PEP / 9 W carrier |
| Power Supply | 12 V / 24 V DC |
| Ingress Protection | IP54, MIL-STD-810G |
