Icom AH-710 HF Antenna
Price on application
The Icom AH-710 is a broadband HF folded dipole antenna for fixed base stations. It covers 1.9–30 MHz without a tuner and comes with 30 m of coax ready to connect. Signals is an authorised Icom dealer.
- 1.9–30 MHz broadband, no antenna tuner needed
- 150 W power rating, 50 Ω
- VSWR under 2:1 (1.9–18 MHz), under 2.5:1 (18–30 MHz)
- 24.5 m long, supplied with 30 m coax and PL-259 plug
A simple, broadband HF base antenna

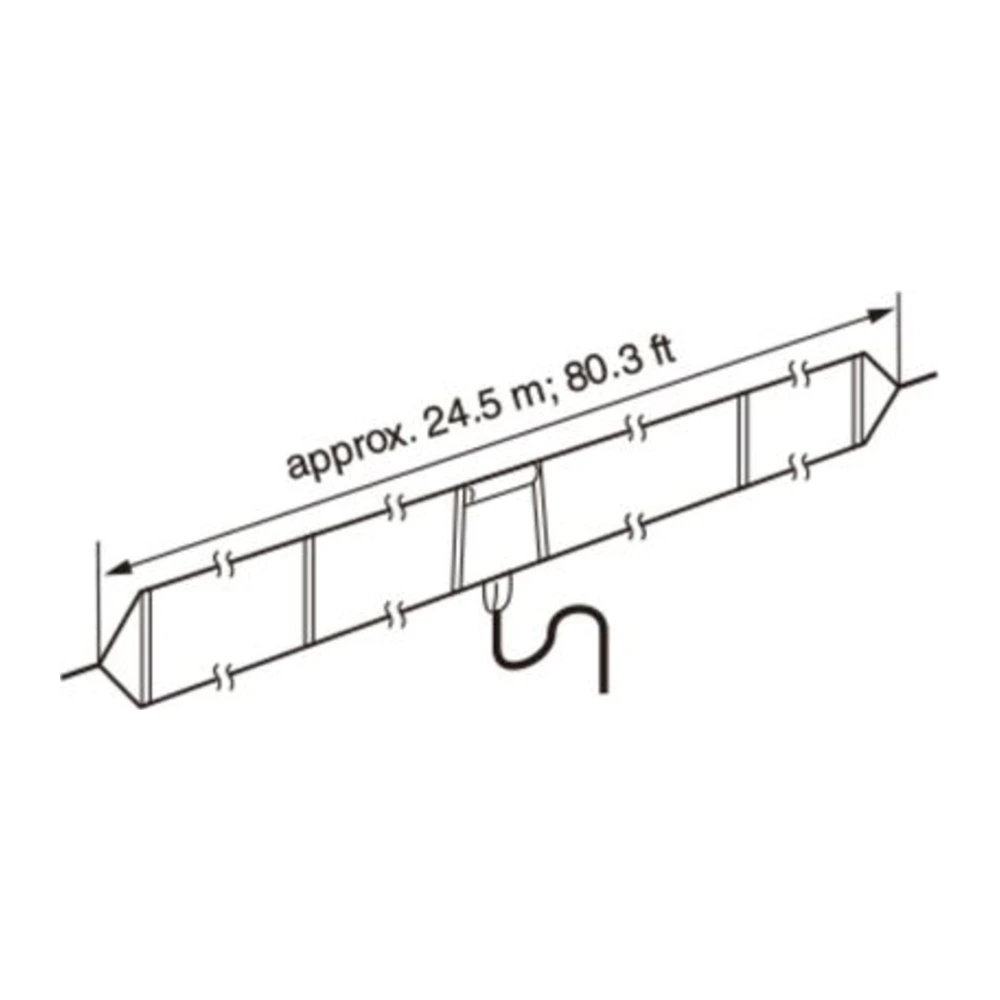

The Icom AH-710 is a folded dipole for HF base stations, homesteads, camps and other fixed sites. Because it's broadband across 1.9–30 MHz, it works on any channel in that range without an antenna tuner. Just string it between two supports, connect the supplied coax, and you're on air.
It's rated to 150 W, so it suits Icom HF transceivers such as the IC-F8101 (up to 125 W PEP) and Icom's marine MF/HF and amateur HF radios. For vehicle or whip installations, or to cover frequencies below 1.9 MHz, use the Icom AT-140 automatic antenna tuner with a whip or long-wire element instead.
Specifications
| Type | Folded dipole, broadband |
| Frequency coverage | 1.9–30 MHz |
| Power rating | 150 W |
| Input impedance | 50 Ω |
| VSWR (typ.) | Under 2:1 (1.9–18 MHz); under 2.5:1 (18–30 MHz) |
| Length | 24.5 m |
| Feed line | 30 m coax with PL-259 plug |
| Weight | Antenna approx. 3.1 kg; coax approx. 2.6 kg |
Ordering
Contact us or request a quote. Signals can supply the AH-710 with an IC-F8101 as a complete HF base station package and advise on site layout and installation. Signals is an authorised Icom dealer.
Additional information
| Weight | 5.7 kg |
|---|---|
| Frequency | HF 1.9–30 MHz |
| Type | Folded dipole |
| Power Rating | 150 W |
| Length | 24.5 m |
| Connector | PL-259 (30 m coax supplied) |
