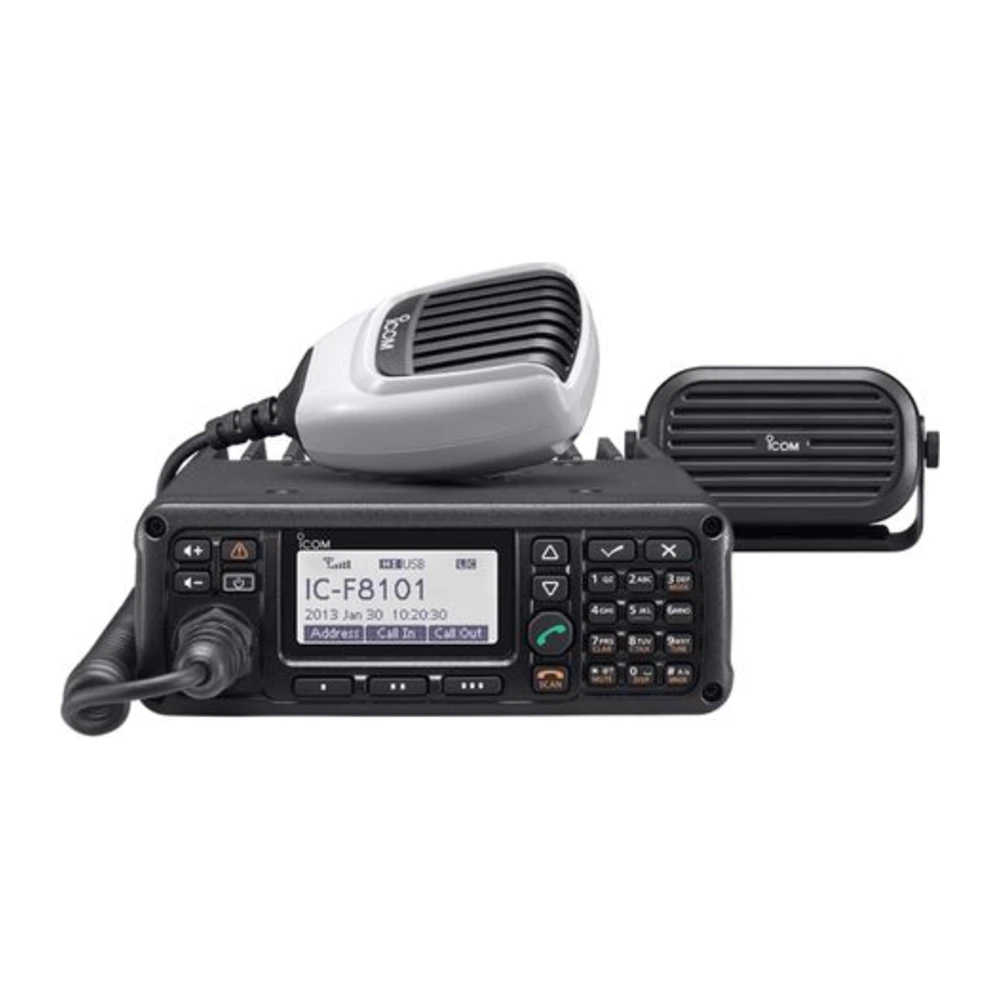

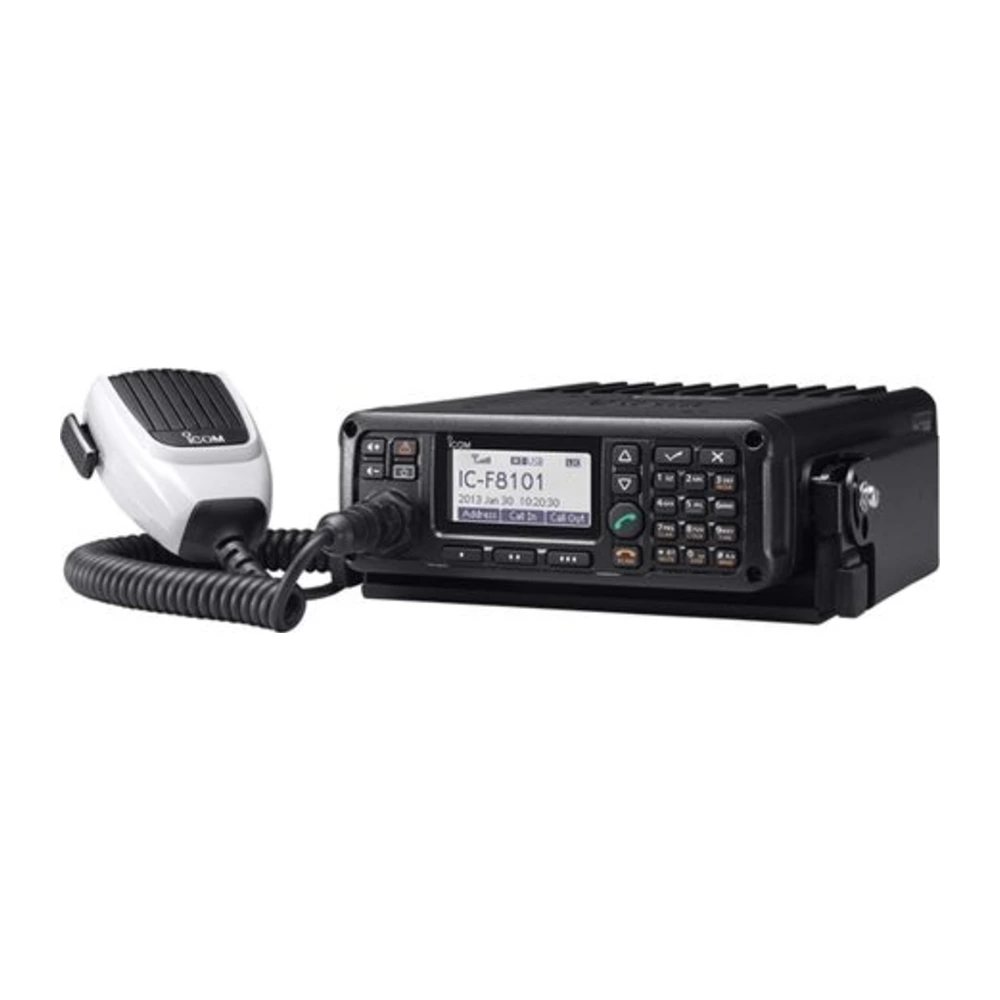

Icom IC-F8101 HF Radio
Price on application
The Icom IC-F8101 is a rugged HF SSB transceiver for long-range voice and data where VHF, UHF and cellular can’t reach. Built-in ALE and Selcall, GPS tracking, and IP54 and MIL-STD-810G protection. Signals is an authorised Icom dealer.
- 1.6–30 MHz transmit, 0.5–30 MHz receive, 500 channels
- Up to 125 W PEP, fanless design
- Built-in ALE (MIL-STD-188-141B) and CCIR Selcall with emergency and position calls
- Desktop, vehicle remote-mic or detached-controller set-ups
- Optional GPS, data modem and AES encryption
Long-range HF communications
The Icom IC-F8101 is a professional HF SSB transceiver for remote and back-country operations, emergency services, expeditions and agencies that need reliable communication over hundreds or thousands of kilometres, with no towers, repeaters or cellular coverage needed. It pairs a clear, menu-driven controller with Icom's DSP receiver for strong, intelligible audio on difficult paths.
It suits base stations, vehicles and field camps. Pair it with an Icom AT-140 automatic antenna tuner, the right antenna and a suitable power supply, and Signals can help with installation and programming.
Key features
- Built-in ALE picks the best channel and sets up links automatically, interoperable with MIL-STD-188-141B and FED-STD-1045A.
- Selcall to CCIR 493-4 (4- and 6-digit), including emergency and GPS position calls, with a password-protected remote stun.
- Three configurations: controller attached for desktop use, remote control microphone for vehicles, or a detached controller (separation cable sold separately).
- Rugged build: sealed, fanless chassis, IP54 and tested to MIL-STD-810G.
- Clear audio with DSP Clear Talk, plus call, S-meter and syllabic squelch.
- Options: UX-248 GPS unit for position reporting and AVL, internal slot for a RapidM TC4 / TC4-LP data modem (HF email, digital voice, 256-bit AES), and the CFU-F8100 fan unit for full duty cycle.
- Built-in test (BITE) and administrator / user access levels.
Specifications
| Frequency coverage | TX 1.6–29.9999 MHz; RX 0.5–29.9999 MHz |
| Channels | 500; 500 Selcall and 500 ALE address memories |
| Modes | J3E (SSB), A3E (AM); A1A, F1B, J2B depending on version |
| Output power | Up to 125 W PEP (100 W PEP on Australian-version radios) |
| Frequency stability | ±0.3 ppm (−30°C to +60°C) |
| Power supply | 13.8 V DC, negative ground |
| Current drain | TX under 28 A at max output; RX 1.0 A standby, under 3 A max audio |
| Audio output | 4.0 W (4 Ω, 10% distortion) |
| Protection | IP54, MIL-STD-810G |
| Dimensions (W×H×D) | 174 × 62 × 259 mm (controller-attached) |
| Weight | Approx. 3.9 kg (controller-attached) |
Ordering
The IC-F8101 is configured to order. Contact us or request a quote with your intended use, and we'll recommend the right version, controller set-up, options and antenna. Signals is an authorised Icom dealer.
Additional information
| Weight | 3.9 kg |
|---|---|
| Dimensions | 25.9 × 17.4 × 6.2 cm |
| Frequency | HF 1.6–30 MHz |
| Modes | SSB, AM, ALE, Selcall |
| Output Power | Up to 125 W PEP |
| Protection | IP54, MIL-STD-810G |
