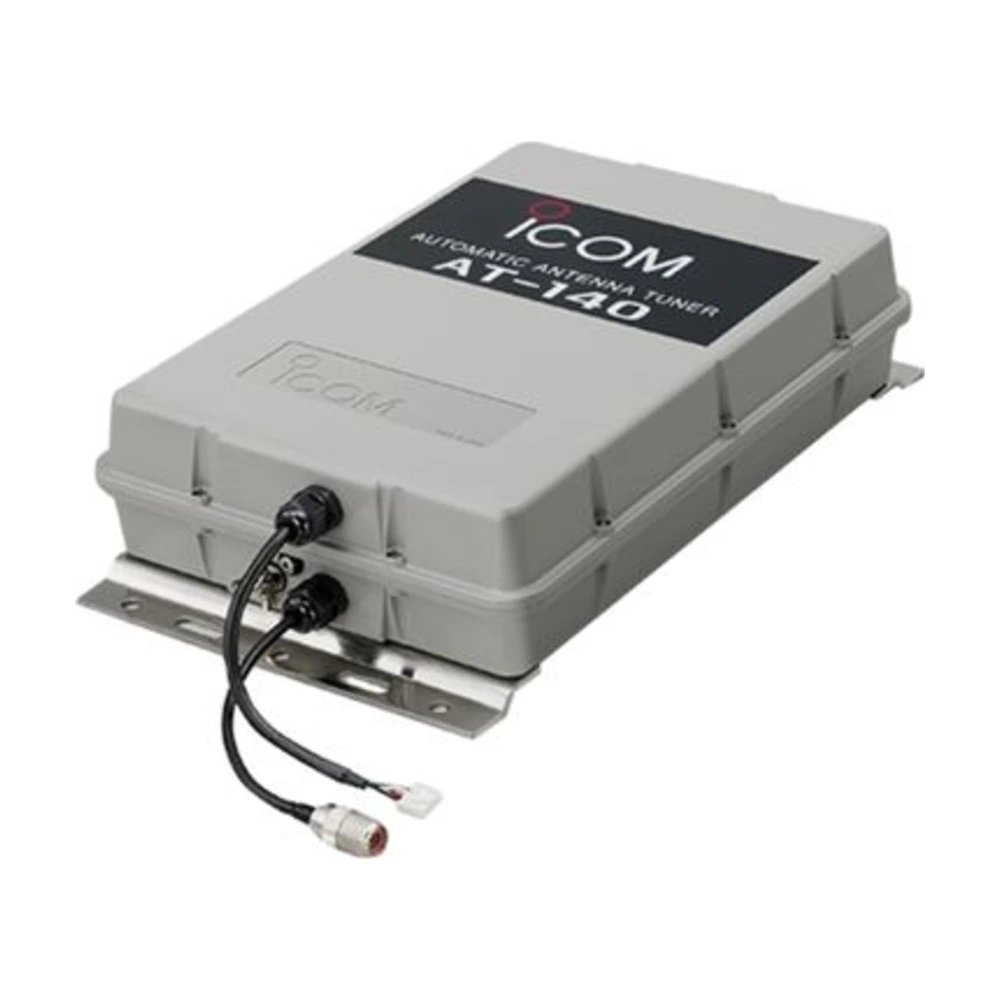

Icom AT-140 Antenna Tuner
Price on application
The Icom AT-140 is a weatherproof automatic antenna tuner for Icom HF transceivers, including the IC-F8101. It matches a whip or long-wire element of 7 m or more across 1.6–30 MHz in seconds. Signals is an authorised Icom dealer.
- 1.6–30 MHz with a 7 m or longer element
- Tunes in 2–3 seconds, about 1 second for memorised frequencies
- 150 W PEP / 100 W continuous
- Powered and controlled from the transceiver
- Pole mount, 32–60 mm diameter
Automatic tuning for HF antennas
HF radios cover a wide frequency range that no single fixed antenna can match on its own. The Icom AT-140 sits at the base of the antenna and automatically matches it to the transceiver every time you change channel, so you get full power out and low SWR across the band without manual adjustment.
It's designed for use with the Icom IC-F8101 HF transceiver and Icom's marine MF/HF radios (IC-M803, IC-M710, IC-M700PRO) and the IC-78. Mount it outdoors on a mast or pole, or in a vehicle, close to the antenna feed point, and connect a whip or long-wire element of at least 7 m. Power and control come from the radio, so there's no separate supply to run.
Features
- Fast tuning: around 2–3 seconds normally (15 seconds max), and about 1 second when re-tuning to a memorised frequency.
- Wide coverage: 1.6–30 MHz with a 7 m or longer antenna element.
- Handles full power: 150 W PEP, 100 W continuous.
- Tough: weatherproof housing rated for −30°C to +60°C.
Specifications
| Frequency coverage | 1.6–30 MHz (with 7 m or longer element) |
| Maximum input power | 150 W PEP, 100 W continuous |
| Tuning time | Approx. 2–3 s (max 15 s); approx. 1 s for memorised frequencies |
| Tuning accuracy | SWR 2.0:1 or better (except multiples of ½ λ) |
| Antenna connector | SO-239 (50 Ω) |
| Power supply | 13.6 V DC, supplied from the HF transceiver |
| Current drain | 2 A max |
| Operating temperature | −30°C to +60°C |
| Usable pole diameter | 32–60 mm |
| Weight | Approx. 2.5 kg |
| Compatible radios | IC-F8101, IC-78, IC-M803, IC-M710, IC-M700PRO |
Ordering
Contact us or request a quote. We can supply the AT-140 with an IC-F8101, antenna element and cabling as a complete HF package. Signals is an authorised Icom dealer.
Additional information
| Weight | 2.5 kg |
|---|---|
| Frequency | HF 1.6–30 MHz |
| Max Input Power | 150 W PEP / 100 W continuous |
| Connector | SO-239 |
| Suits | Icom IC-F8101, IC-78, IC-M803, IC-M710, IC-M700PRO |
