Helical and 1/4w Aerials
Price on application
These compact aerials are ideal for handheld radios and space-constrained setups. Built with a high-tensile helical coil and protected by a flexible silicone rubber casing, they offer reliable performance and durability across VHF and UHF frequencies.
These aerials are designed for use on hand held transceivers, or applications where a shortened aerial is required. They are available for all VHF & UHF bands and for any customer specified frequency.
The helical radiating element is a high tensile coil assembly, which is plated to improve the radiation efficiency. This element is encased within a silicon rubber tube to provide a very flexible and durable aerial. The 1/4w model is only available in UHF. Also wideband 1/4w solid core whips are available which screw directly onto our Hi-Tec bases.
| Model | Description | Frequency Range (MHz) |

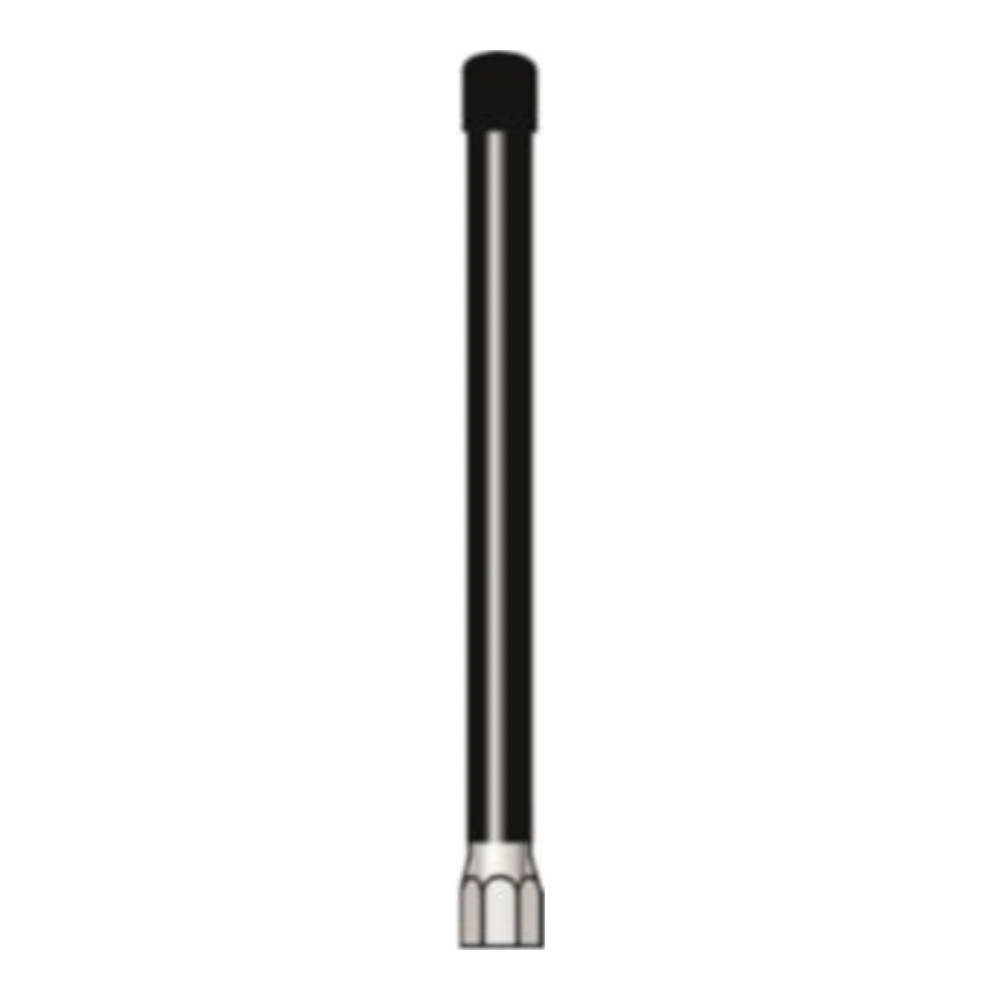

| HEL-HTAB-E | Helical on Hi-Tec Base | 151 - 156 MHz |

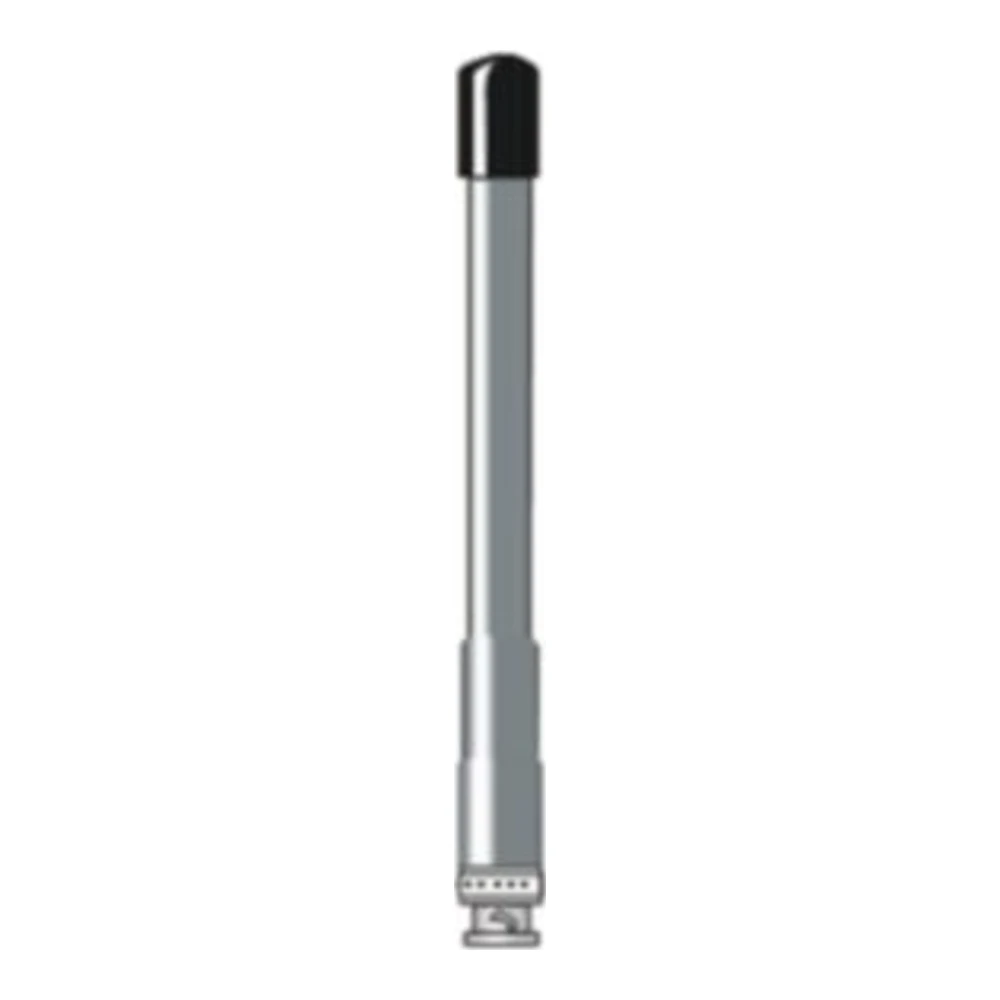

| HEL-BNCP-AV | Helical on BNC Plug | 118 - 136 MHz |

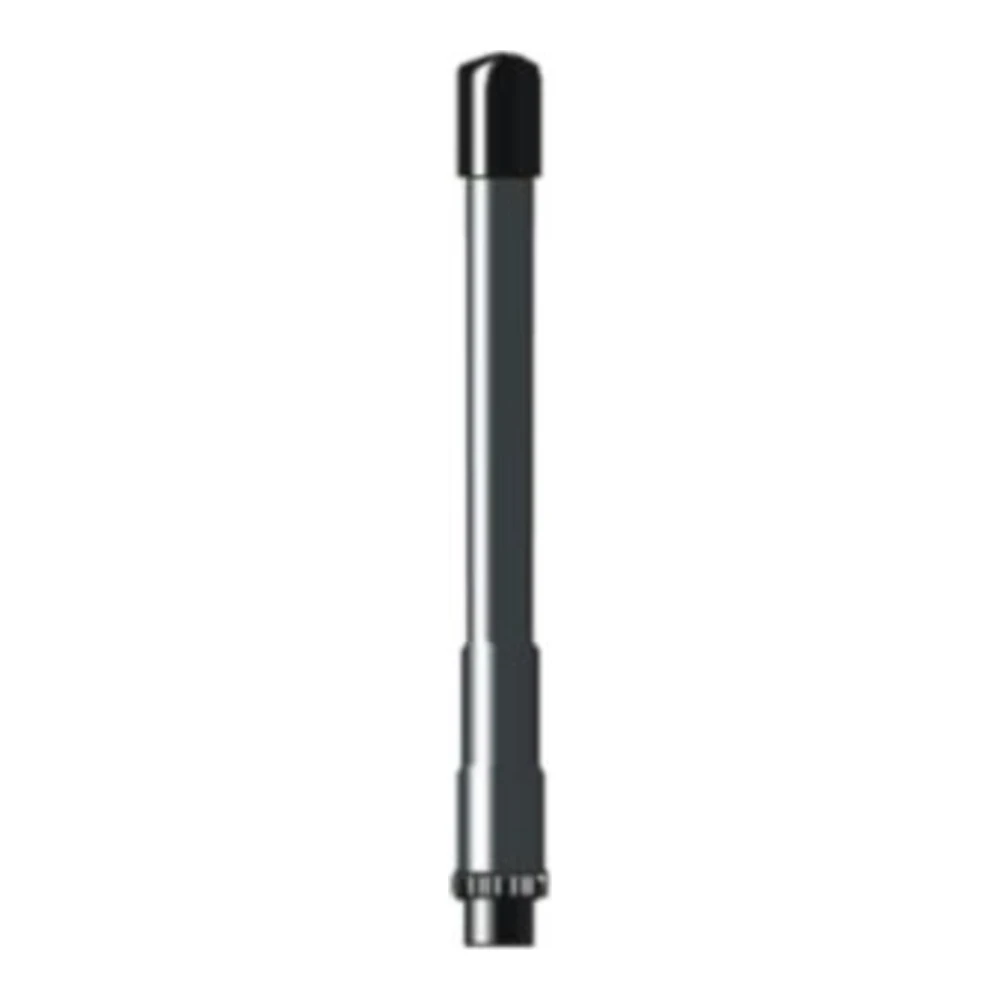

| HEL-TNCP-EE | Helical on TNC Plug | 162 - 170 MHz |
| HEL-PL259-CDF | Helical on PL259 | 450 - 495 MHz |
| FLX1/4-HTAB-CDF | Flexi 1/4w on Hi-Tec Base | 450 - 495 MHz |

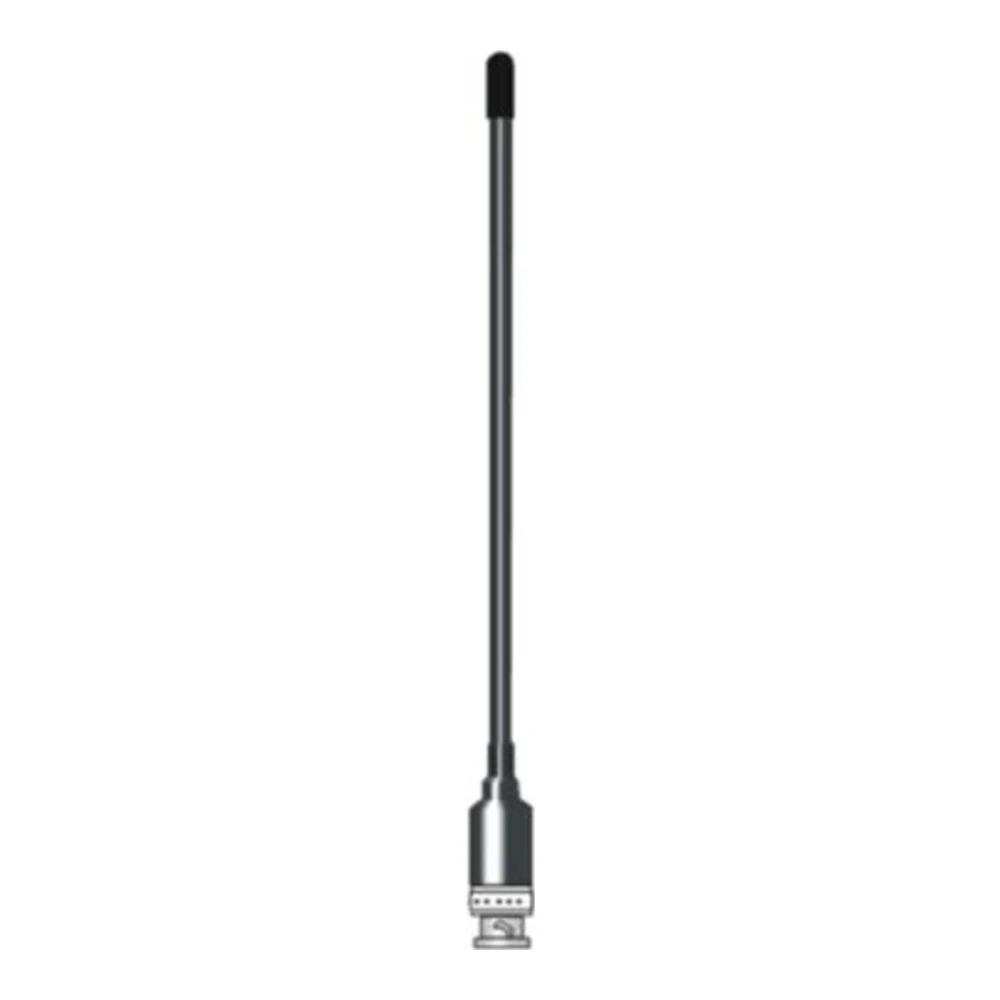

| FLX1/4-BNCP-E | Flexi 1/4 on BNC Plug | 151 - 156 MHz |
| FLX1/4-PL259-EE | Flexi 1/4w on PL259 | 162 - 170 MHz |

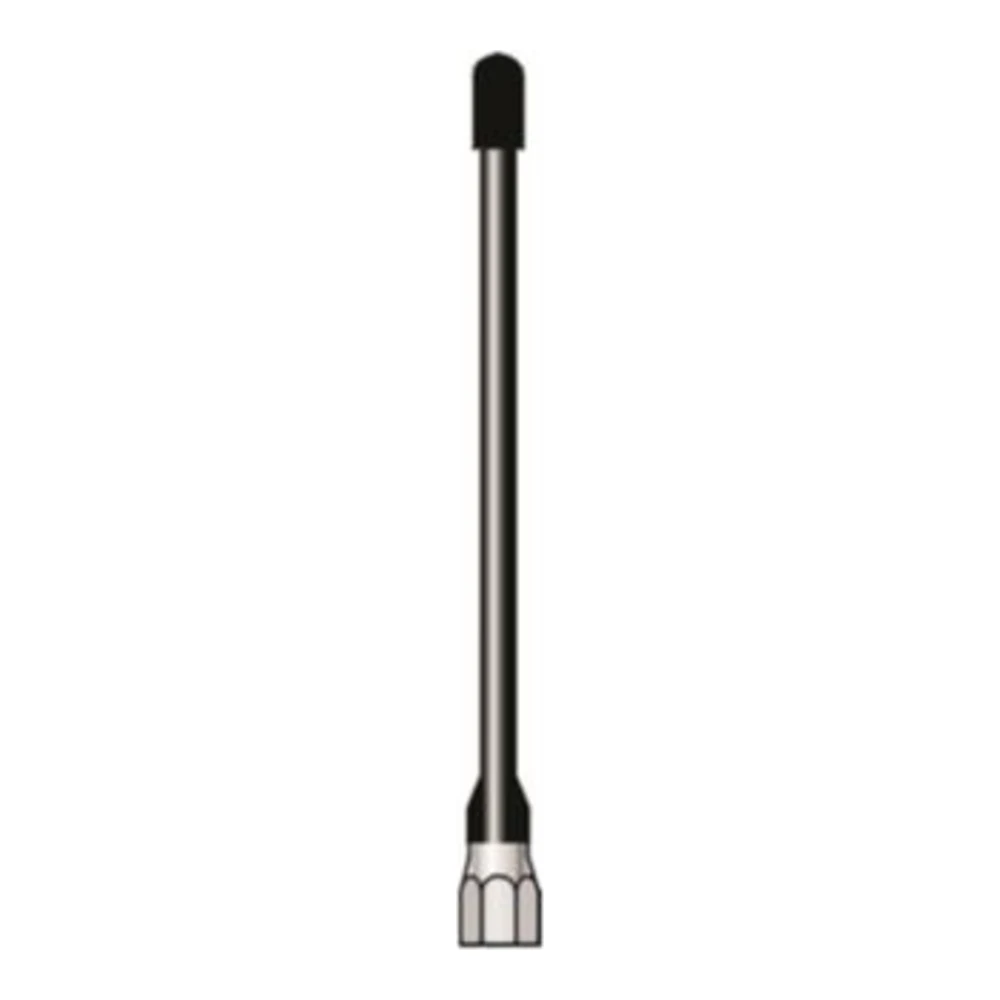

| RIG1/4-FG-HTAB-E | Rigid Fibreglass 1/4 on Hi-Tec Base | 151 - 156 MHz |
Note - for a different frequency, change the band at the end.
Additional information
| Brand | Hi-Tec |
|---|---|
| Band | UHF, VHF |
