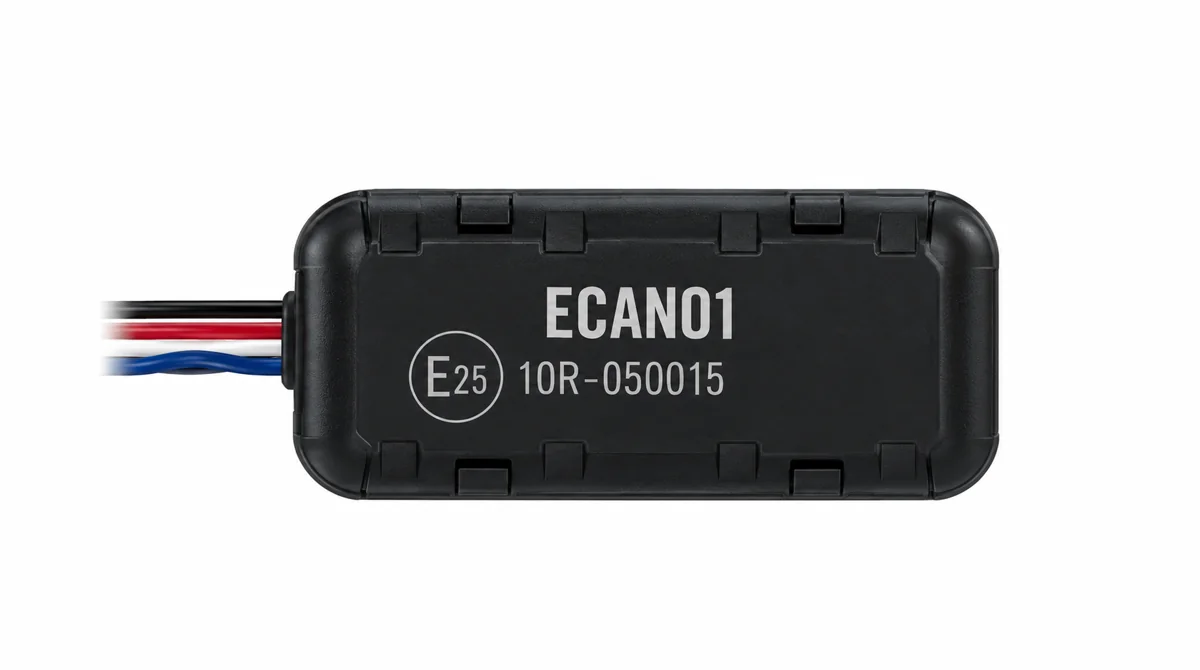

Waka Data ECAN01 Contactless CAN Adapter
$34.50 inc GST
The Waka Data ECAN01 is a contactless CAN bus adapter that reads vehicle data without cutting or piercing the wiring. It clips around the CAN wires and passes engine, fuel and odometer data to a compatible Waka Data tracker, keeping your vehicle warranty intact. Installed and supported by Signals NZ.
The Waka Data ECAN01 is a warranty-friendly way to get CAN bus data into your fleet tracking. Instead of splicing into the vehicle's wiring, this contactless CAN adapter reads the signals inductively through the wire insulation and forwards them to your tracker. There's no damage to the loom and no risk to the manufacturer's warranty, which makes it ideal for new and leased vehicles.
Paired with a compatible Waka Data tracker, the ECAN01 unlocks vehicle data such as engine status, fuel use, odometer and RPM in Waka Data, Signals NZ's GPS and fleet management platform, so you can report on fuel, maintenance and road user charges with real figures from the vehicle.
Key features
- Contactless reading: reads CAN data through the wire insulation, with no cutting or piercing.
- Warranty-friendly: leaves the vehicle wiring untouched.
- Fast CAN support: CAN bus speeds up to 500 kb/s.
- Low power: 6.9 mA working, 1.2 mA in sleep.
- Compact: about 40 × 18 × 17 mm, easy to hide behind trim.
- Simple wiring: four connections: CAN L, CAN H, power and ground.
Installed and supported by Signals NZ
CAN adapters need to be fitted and configured correctly for each vehicle, so our technicians install the ECAN01 alongside your tracker and set up Waka Data to read the right data. We stay hands-on for the life of your fleet, and can fit GPS at the same time as radio work. Talk to us and we'll confirm compatibility with your vehicles and trackers.
Find out more about GPS and fleet tracking with Signals NZ.
Works with
Use the ECAN01 with compatible hard-wired Waka Data trackers such as the WD640 and WD125. We'll confirm the right setup for your vehicles.
Specifications
| Product code | ECAN01 |
| Type | Contactless (inductive) CAN bus adapter |
| CAN bus speed | Up to 500 kb/s |
| Connections | 4 pin: CAN L, CAN H, VCC, GND |
| Supply voltage | 10–30 V DC |
| Current consumption | 6.9 mA working; 1.2 mA sleep |
| Operating temperature | −25 °C to +85 °C |
| Dimensions | 39.8 × 18 × 16.7 mm |
| Certification | E-Mark (E25) |
Get a quote for tracking across your fleet.
Additional information
| Dimensions | 4 × 1.8 × 1.7 cm |
|---|---|
| Connection | Contactless (inductive) CAN reader |
| CAN Speed | Up to 500 kb/s |
| Supply Voltage | 10–30 V DC |
| Operating Temperature | −25 °C to +85 °C |
