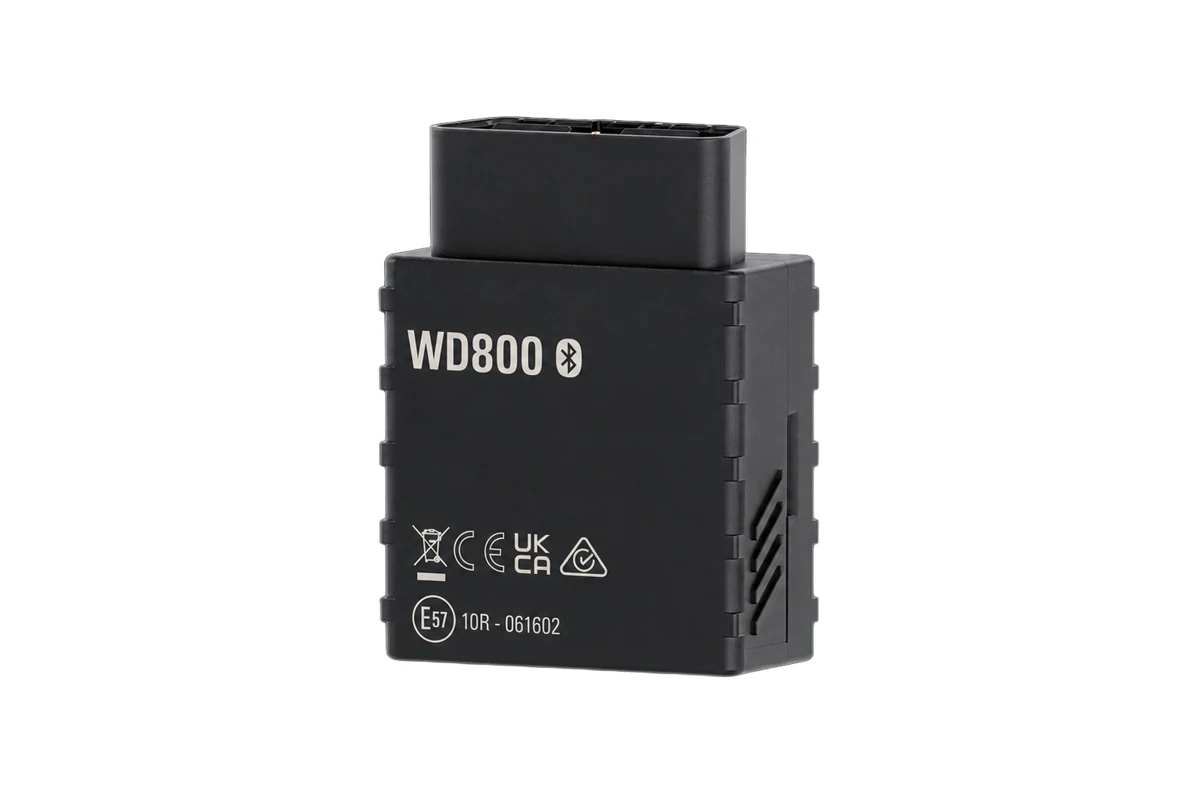

Waka Data WD800 OBDII 4G GPS Tracker
$316.25 inc GST
The Waka Data WD800 is a plug-and-play 4G OBDII GPS tracker: plug it into the vehicle’s diagnostic port and it’s tracking in seconds, with no wiring. LTE Cat 1 with 2G fallback, multi-constellation GNSS, Bluetooth LE and accelerometer-based crash detection and eco-driving reporting. Supplied and supported by Signals NZ on the Waka Data fleet platform.
The Waka Data WD800 is the quickest way to start tracking a vehicle. It plugs straight into the OBDII diagnostic port found in most cars, utes and vans, so there's no wiring and no installation downtime. Within seconds it's connected and reporting location, trips and driving behaviour through Waka Data, Signals NZ's GPS and fleet management platform.
This OBDII GPS tracker connects over 4G LTE Cat 1 with 2G fallback, uses GPS, GLONASS, Galileo, BeiDou and QZSS for accurate positioning, and its 3-axis accelerometer detects crashes and reports eco-driving. Bluetooth LE lets you add wireless beacons and sensors. It's ideal for light fleets, pool vehicles, rentals, car sharing, deliveries and anyone who wants simple, affordable tracking.
Key features
- Plug and track: fits the OBDII port with no wiring, and moves easily between vehicles.
- 4G with fallback: LTE Cat 1 with 2G fallback.
- Accurate positioning: GPS, GLONASS, Galileo, BeiDou and QZSS with AGPS, accurate to under 2.5 m.
- Crash detection: built-in 3-axis accelerometer flags impacts.
- Eco driving: reports harsh driving to help cut fuel use and wear.
- Bluetooth LE: connect beacons and wireless sensors.
- Small and light: just 63 g, with internal antennas.
- Backup battery: built-in 170 mAh battery for continued reporting.
Set up and supported by Signals NZ
We configure every tracker on Waka Data before it reaches you and stay hands-on for the life of your fleet. Choose simple tracking or the full feature set, and we'll set up the platform to suit how you run your vehicles. For permanent, tamper-resistant installs, our technicians can fit a hard-wired tracker instead, and we can fit GPS at the same time as radio work. We're also a solution partner for RUC Monkey, so we can help with electronic road user charges.
Find out more about GPS and fleet tracking with Signals NZ.
Compare the range
Want a hidden, hard-wired tracker with more interfaces? See the compact Waka Data WD125, or the Waka Data WD640 for heavy vehicles with CAN FMS and fuel monitoring.
Specifications
| Product code | WD800 |
| Technology | LTE Cat 1 / GSM / GPRS / GNSS / Bluetooth LE |
| 4G bands | LTE FDD: B1/B3/B7/B8/B20/B28 |
| 2G bands | GSM: B2/B3/B5/B8 (850/900/1800/1900 MHz) |
| Data transfer | LTE FDD: max 10 Mbps (DL) / 5 Mbps (UL) |
| GNSS | GPS, GLONASS, Galileo, BeiDou, QZSS, AGPS |
| Tracking sensitivity | -165 dBm |
| Accuracy | < 2.5 m CEP |
| Cold start | < 35 s |
| GNSS / cellular antennas | Internal high gain |
| Bluetooth | Bluetooth 4.0 + LE (also 3.0) |
| Connection | OBD-II socket |
| Input voltage range | 10–30 V DC with overvoltage protection |
| Internal back-up battery | 170 mAh Li-ion, 3.7 V |
| SIM | Micro-SIM |
| Memory | 128 MB internal flash |
| Sensors | 3-axis accelerometer |
| Scenarios | Eco driving, crash detection |
| USB | Micro-USB |
| LED indication | 2 status LEDs |
| Current consumption | Average 35 mA; deep sleep 4.5 mA |
| Weight | 63 g |
| Operating temperature (without battery) | -40 °C to +85 °C |
| Storage humidity | 5% to 95% non-condensing |
| Certification | E-Mark, CE RED |
Get a quote for tracking across your fleet.
Additional information
| Weight | 0.063 kg |
|---|---|
| Dimensions | 6.7 × 5 × 2.5 cm |
| Brand | Waka Data |
| Band | Cellular |
