Icom IC-M200 Fixed VHF Marine Radio
$511.75 inc GST

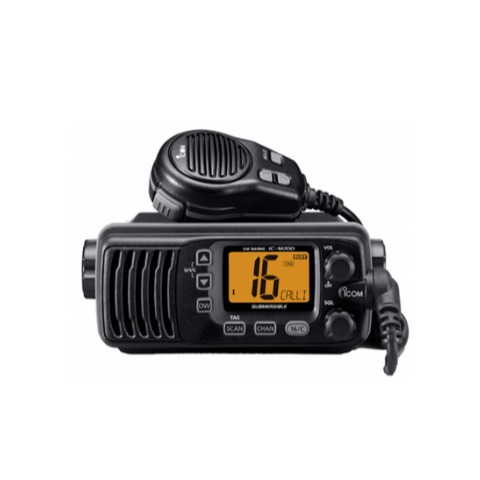

The Icom IC-M200 is a compact, great-value 25 W fixed VHF marine radio for boats of all sizes. IPX7 submersible and MIL-STD-810 rugged, it has a powerful front-mount speaker, a large easy-to-read LCD, dual and tri-watch, and class-leading receiver performance, all made in Japan.
The Icom IC-M200 gives you the essentials of a quality fixed-mount marine VHF in a compact, tough package. It transmits at a full 25 W for strong range from your vessel, and its IPX7 submersible body withstands 1 m of water for 30 minutes, so it's at home on an open helm or flybridge as well as in the cabin.
A powerful front-mount speaker delivers loud, clear audio even in noisy conditions, and the large 43 × 27 mm LCD with 4-step backlighting is easy to read day or night. Channel changes, the favourite channel function and instant Channel 16 access are all available from the supplied HM-164B hand microphone.
Key features
- 25 W output: full-power fixed-mount VHF with a 1 W low-power setting.
- IPX7 submersible and MIL-STD-810: withstands 1 m of water for 30 minutes and built rugged.
- Powerful front-mount speaker: 4.5 W audio that stays clear in noisy maritime environments.
- Class-leading receiver: 75 dB typical intermodulation and selectivity for busy marinas.
- Large LCD: 43 × 27 mm display with 4-step backlighting.
- Dual and tri-watch: monitor Channel 16 and/or your call channel while using another channel.
- Favourite channels, priority and normal scan, and AquaQuake water draining for the speaker grille.
- Instant-access Channel 16/call channel button and a built-in low voltage indicator.
Specifications
| Frequency range | Tx 156.025–162.000 MHz / Rx 156.025–162.025 MHz |
| Channels | International (INT) marine channels |
| Output power | 25 W / 1 W |
| Emission | 16K0G3E (FM) |
| Ingress protection | IPX7 (1 m for 30 minutes) |
| Durability | MIL-STD-810 |
| Power supply | 13.8 V DC nominal (11.7–15.9 V) |
| Current drain | Tx 5.5 A max / Rx 1.5 A max |
| Audio output | 4.5 W typical |
| Display | 43 × 27 mm LCD, 4-step backlight |
| Antenna impedance | 50 Ω |
| Operating temperature | –20°C to +60°C |
| Dimensions | 153 × 67 × 133 mm |
| Weight | 790 g |
Download IC-M200 Spec Sheet (PDF)
What's in the box
- IC-M200 radio
- HM-164B hand microphone
- DC power cable
- Mounting bracket kit
Compare the range
Want DSC and built-in GPS? Step up to the Icom IC-M330GE. Need a handheld as well? See our Icom IC-M25 EVO floating handheld.
Get a quote for your vessel or fleet.
Additional information
| Weight | 0.79 kg |
|---|---|
| Dimensions | 13.3 × 15.3 × 6.7 cm |
| Brand | Icom |
| Technology | Analogue |
| Frequency Range | VHF marine 156–162 MHz |
| Output Power | 25 / 1 W |
| Ingress Protection | IPX7 |
| Power Supply | 13.8 V DC |
