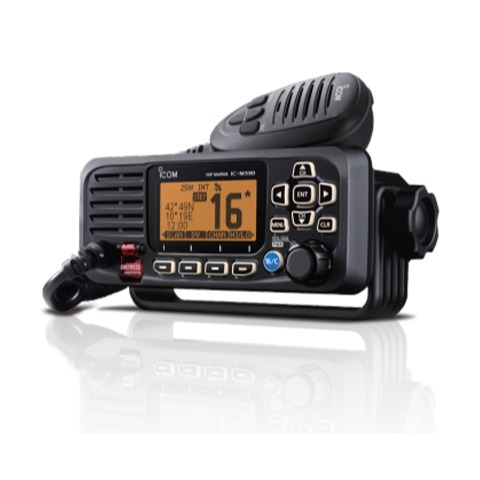

Icom IC-M330GE Fixed VHF Marine Radio
$726.80 inc GST
The Icom IC-M330GE is an ultra-compact 25 W fixed VHF marine radio with built-in Class D DSC and a built-in GPS receiver (GPS antenna supplied). IPX7 waterproof, with a full dot-matrix display, dedicated Channel 70 DSC receiver, NMEA connection and compatibility with the MA-500TR AIS transponder, it fits easily into tight helm stations.
The Icom IC-M330GE packs DSC and GPS into a fixed-mount VHF just 156.5 × 66.5 × 110.1 mm, making it easy to install where dash space is limited. Its built-in GPS receiver uses GPS, GLONASS and SBAS to provide your position, bearing and speed, and feeds that position straight into DSC calls, with no external GPS needed. A GPS antenna with 5 m of cable is supplied.
The Class D DSC system has a dedicated receiver that monitors Channel 70 continuously, even while you're listening on another channel, and supports distress, individual, group, all ships, urgency, safety, position request/report, polling and test calls. A full dot-matrix display, directional keypad and soft keys keep operation simple, and the newly designed speaker delivers clear, dynamic audio even at full volume.
Key features
- Built-in Class D DSC: dedicated Channel 70 receiver, meets ITU-R M.493-14.
- Built-in GPS receiver: GPS, GLONASS and SBAS, with GPS antenna (5 m cable) supplied.
- Ultra-compact body: 156.5 × 66.5 × 110.1 mm for easy installation in limited space.
- IPX7 waterproof: protected to 1 m for 30 minutes, with AquaQuake water draining.
- 25 W output and more than 2 W of clear, dynamic audio from the new speaker.
- Class-leading receiver: selectivity and intermodulation of more than 70 dB for busy marinas.
- NMEA in/out and MA-500TR Class B AIS transponder compatible.
- Dual/tri-watch, tag scan, priority scan and favourite channels, with display and keypad backlighting.
Specifications
| Frequency range | Tx 156.000–162.000 MHz / Rx 156.000–163.425 MHz |
| DSC | Class D, dedicated CH70 receiver (156.525 MHz) |
| GPS | Built-in receiver (GPS, GLONASS, SBAS), antenna supplied |
| Channels | International (INT) marine channels |
| Output power | 25 W / 1 W |
| Emission | 16K0G3E (FM), 16K0G2B (DSC) |
| Ingress protection | IPX7 (1 m for 30 minutes) |
| Power supply | 13.8 V DC nominal (10.8–15.6 V) |
| Current drain | Tx 5 A / Rx 1 A |
| Audio output | More than 2 W |
| NMEA | In: RMC, GGA, GNS, GLL, VTG / Out: DSC, DSE, RMC, GSA, GSV |
| Antenna connector | SO-239, 50 Ω |
| Operating temperature | –20°C to +60°C |
| Dimensions | 156.5 × 66.5 × 110.1 mm |
| Weight | 730 g |
Download IC-M330GE Spec Sheet (PDF)
What's in the box
- IC-M330GE radio
- HM-235 hand microphone
- DC power cable
- Mounting bracket kit
- GPS antenna (5 m cable)
Optional accessories include the MBF-5 flush mount kit, SP-37 external speaker and MA-500TR Class B AIS transponder.
To use DSC, the radio needs your vessel's MMSI number programmed in. We can help set this up when you order.
Compare the range
Don't need DSC or GPS? See the great-value Icom IC-M200. Want DSC, GPS and AIS in a handheld? See the Icom IC-M94D.
Get a quote for your vessel or fleet.
Additional information
| Weight | 0.73 kg |
|---|---|
| Dimensions | 11.0 × 15.7 × 6.7 cm |
| Brand | Icom |
| Technology | Analogue |
| Frequency Range | VHF marine 156–163 MHz |
| Output Power | 25 / 1 W |
| Ingress Protection | IPX7 |
| DSC / GPS | Class D DSC, Built-in GPS |
| Power Supply | 13.8 V DC |
