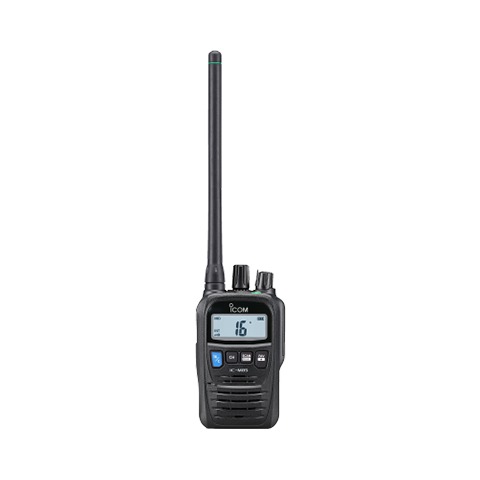

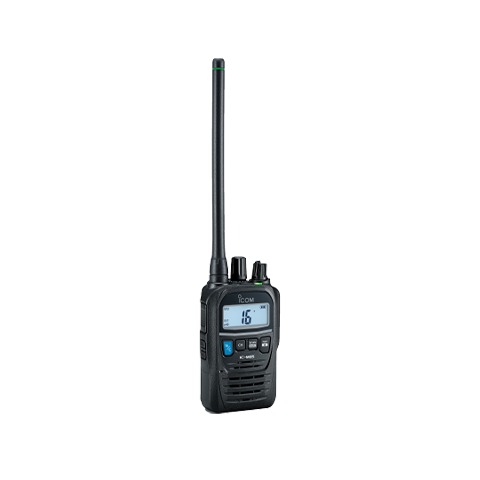

Icom IC-M85E VHF Marine Radio
$1,063.75 inc GST
The Icom IC-M85E is an ultra-compact marine and land mobile hybrid radio for professional crews. It covers VHF marine channels plus 100 programmable PMR channels (136–174 MHz), with 5 W output, IP67 and MIL-STD-810 protection, Man Down and Lone Worker alarms, and up to 14 hours of battery life.
The Icom IC-M85E is one radio for both sides of the job: talk to vessels on the international marine channels, then switch to your own land mobile (PMR) channels for crews on the wharf, in the yard or on site. That makes it a strong fit for ports, marinas, ferry and charter operators, aquaculture, fishing companies and harbour services.

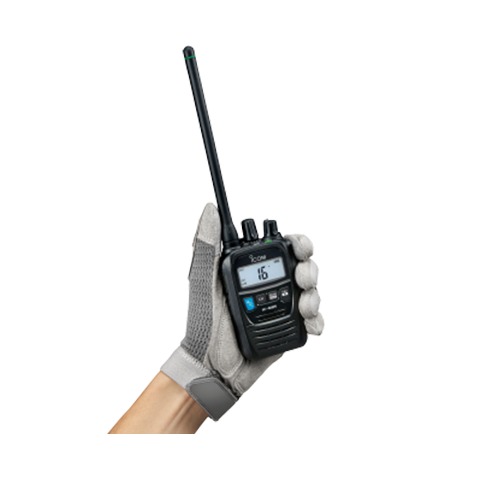

At just 56 × 92 × 29 mm and 246 g, it's one of the smallest commercial-grade marine handhelds available, yet still delivers 5 W of transmit power and 700 mW of loud audio. A multi-function button on the top panel switches between marine and PMR channel groups, and built-in safety alarms help protect people working alone or near the water.
Key features
- Marine and PMR hybrid: VHF marine channels plus up to 100 programmable PMR channels across 136–174 MHz, each with CTCSS and DTCS.
- Compact and light: 56 × 92 × 29 mm and 246 g with battery, antenna and belt clip.
- Automated emergency alarms: MOB alarm, Man Down and Lone Worker functions trigger an alarm automatically.
- IP67 and MIL-STD-810: dust-tight and protected to 1 m for 30 minutes, with AquaQuake water draining.
- 5 W output and 700 mW audio: strong range and loud, clear audio in noisy environments.
- Private conversation: built-in 32-code voice scrambler (compatible with the UT-112).
- Multi-function button: switch marine/PMR groups or scrambler on and off, and hold for key lock.
- Up to 14 hours of battery life (5:5:90), with internal VOX for hands-free use.
Specifications
| Frequency range (marine) | Tx 156.000–161.450 MHz / Rx 156.000–163.425 MHz |
| Frequency range (PMR) | 136.000–174.000 MHz |
| Channels | International (INT) marine channels plus 100 PMR channels |
| Channel spacing | 25 kHz marine; 25 / 12.5 kHz PMR |
| Output power | 5 / 3 / 1 W |
| Ingress protection | IP67 (1 m for 30 minutes) |
| Durability | MIL-STD-810 |
| Battery | BP-290 Li-ion, 7.2 V |
| Battery life | Up to 14 hours (5:5:90) |
| Audio output | 700 mW |
| Operating temperature | –15°C to +55°C (marine); –25°C to +55°C (PMR) |
| Dimensions | 56 × 92 × 29 mm |
| Weight | 246 g (with battery, antenna and belt clip) |
Download IC-M85E Brochure (PDF)
What's in the box
- IC-M85E radio
- BP-290 Li-ion battery
- BC-227 rapid charger
- AC adapter
- FA-SC58V antenna
- Belt clip
A wide range of speaker microphones, headsets and earpieces is available for hands-free and noisy-environment use.
Licensing, programming & support
Using the PMR channels needs a land mobile licence. Signals NZ handles the full RSM licensing process and programmes your radios before they leave us, and our radio service team can look after repairs and maintenance from there.
Compare the range
Only need marine channels? See the Icom IC-M73 EURO. Want DSC, GPS and AIS in your hand? Step up to the Icom IC-M94D.
Get a quote for supply and programming across your team.
Additional information
| Weight | 0.246 kg |
|---|---|
| Dimensions | 9.2 × 5.6 × 2.9 cm |
| Brand | Icom |
| Technology | Analogue |
| Frequency Range | VHF marine 156–163 MHz, PMR 136–174 MHz |
| Ingress Protection | IP67 |
| Battery Life | Up to 14 hours |
| Output Power | 5 / 3 / 1 W |
| Safety | Man Down, Lone Worker, MOB alarm |
