UHF Folded Dipole
$230.71 inc GST

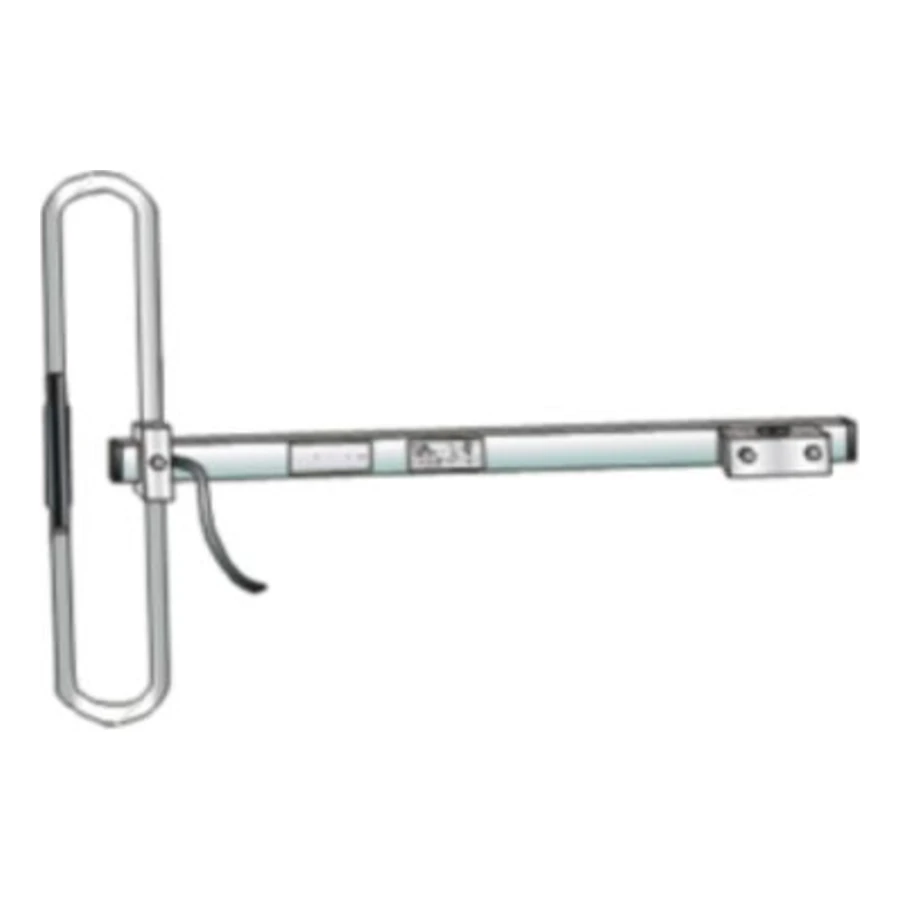

The Hi-Tec Aerials FDU is a standard series UHF folded dipole: a simple, cost-effective base antenna for UHF CB, land mobile radio and telemetry. It has a broad 100 MHz bandwidth, so one antenna covers many channels without retuning.
- Two bands: 400–430 MHz or 420–505 MHz
- 0 dBd (unity gain), 100 MHz bandwidth, 100 W
- Light (0.6 kg) and compact, 375 mm boom, rear mounted
- Supplied with a 1 m RG58 tail, N plug, no clamp
- Customisable: cable type, cable length, connector and mounting
A simple, reliable UHF base antenna
The folded dipole is the workhorse base station antenna: compact, light and easy to install on a mast, fascia mount or building bracket. Its wide 100 MHz bandwidth means it covers your channels without precise tuning, making it ideal for farm and business base stations, UHF CB, telemetry and small repeater sites.
Choose your band
Select 400–430 MHz or 420–505 MHz to match your radio channels. The 420–505 MHz version covers the UHF CB band and most UHF land mobile channels.
Standard build and customisation
As standard, the FDU comes with a 1 m RG58 tail, an N plug and no clamp. You can customise:
- Cable: RG58 or RG58 Low Loss, in the length you need (see coax cable)
- Connector: N plug, N jack, BNC plug or jack, TNC plug, FME plug or unterminated (see connectors)
- Mounting: mounting clamps for 25, 38, 48 or 63 mm pipe, or saddle clamps
Contact us for a quote on a custom configuration. Need more range in one direction? See our standard series UHF yagis or professional UHF yagis. For a harsher site, see the UHF shrouded dipole. To mount it on a house or shed, see our fascia mounts. Signals NZ supplies and installs base station aerials across New Zealand. See our installation and service options and lightning protection.
Specifications
| Model | FDU |
| Elements | 1 (folded dipole) |
| Frequency range | 400–505 MHz (two bands) |
| Bandwidth | 100 MHz |
| Gain | 0 dBd |
| Front-to-back ratio | 0 dB |
| Impedance | 50 Ω |

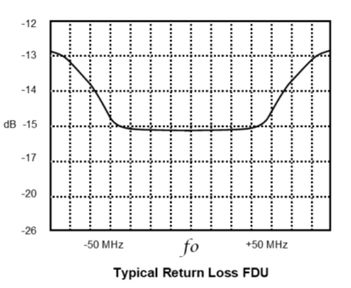

| Return loss / VSWR | < −14 dB / 1.5:1 |
| Maximum power | 100 W |
| Cable | RG58 or RG58 Low Loss (1 m RG58, N plug standard) |
| Max element length | 320 mm |
| Boom | 375 mm, 25 mm square |
| Projected area | 0.020 m² |
| Weight | 0.6 kg |
| Mounting location | Rear |
Additional information
| Weight | 0.6 kg |
|---|---|
| Brand | Hi-Tec |
| Band | UHF |
| Frequency Band | 400–430 MHz, 420–505 MHz |
| Standard Build | RG58 1 m tail, N plug, no clamp |
| Customisable | Cable type, cable length, connector, mounting |
