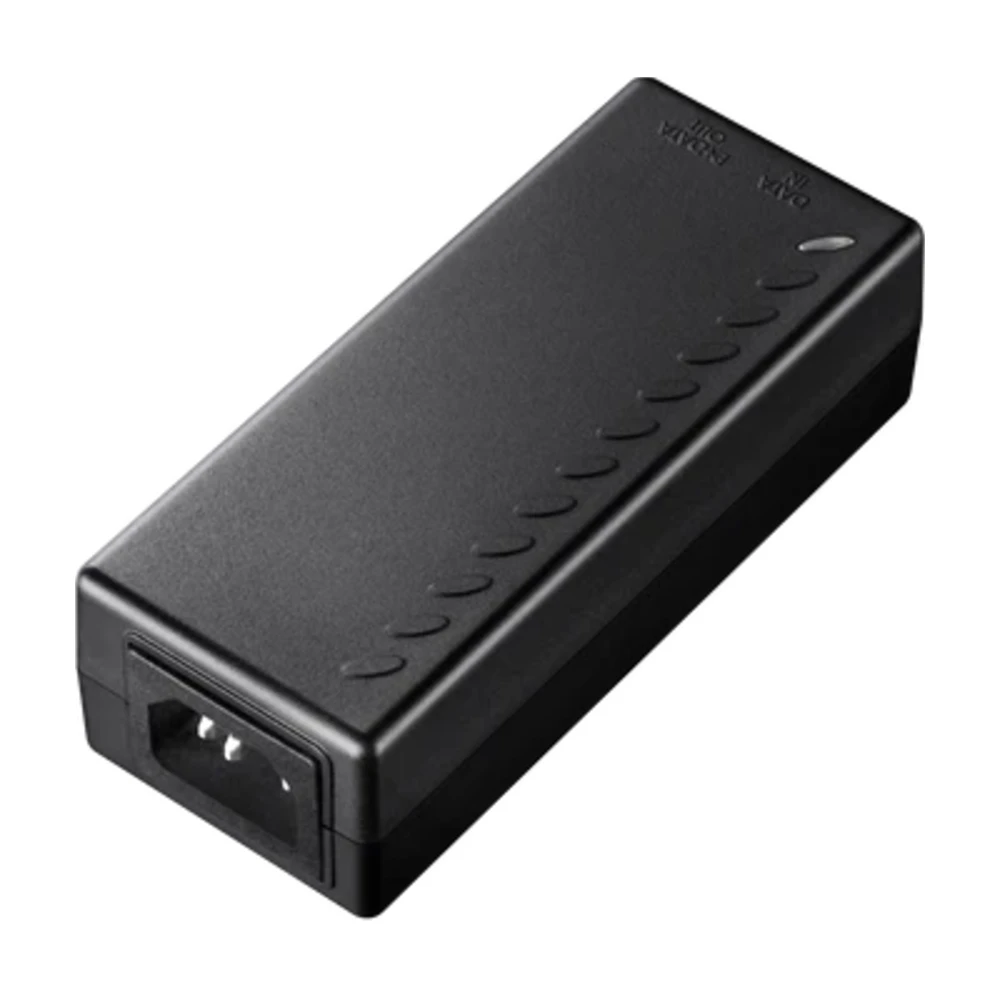

Cudy POE200 PoE+ Injector
$46.00 inc GST
The Cudy POE200 is a 30 W gigabit PoE+ injector that powers a camera, access point or VoIP phone over the same Ethernet cable that carries its data. Plug it into mains power and your network, run one cable to the device, and you’re done.
- IEEE 802.3af / 802.3at (PoE / PoE+), up to 30 W
- Gigabit 10/100/1000 Mbps data
- Built-in mains power supply, no separate adapter
- Over-current, overload and over-voltage protection
- LED indicators for power and PoE output
Power and data over one cable
A PoE injector adds power to an Ethernet cable so a single run can supply a device mounted where there's no power point, such as an IP camera on a pole, a ceiling access point or a desk phone. The Cudy POE200 delivers up to 30 W at 54 V DC to IEEE 802.3af and 802.3at (PoE+) devices, with full gigabit data speeds.
The power supply is built in, so it plugs straight into a mains lead with no external brick, and it protects connected equipment against over-current, overload and over-voltage. LED indicators show mains power and PoE output at a glance.
It is a good match for the Cudy AP1300 ceiling access point, which is sold without a power adapter.
Note: the POE200 is for standard 802.3af/at devices. It is not suitable for devices that need 24 V passive PoE, such as the Cudy AC1200 Outdoor, which comes with its own 24 V adapter.
Download POE200 datasheet (PDF)
Specifications
| Standard | IEEE 802.3af / 802.3at (PoE / PoE+) |
| Output | Up to 30 W, 54 V DC |
| Power pins | 1/2 (−), 3/6 (+) |
| Data rate | 10 / 100 / 1000 Mbps |
| Ports | 1 × data in, 1 × PoE out (shielded RJ45) |
| Input | 100–240 V AC, 50/60 Hz, 0.5 A |
| Protection | Over-current, overload, over-voltage |
| Indicators | Mains power, PoE output |
| Dimensions | 121 × 50 × 36 mm |
| Operating temperature | −40°C to 40°C |
| Suits | Wi-Fi access points, IP cameras, VoIP phones and other PoE devices |
Ordering
Add to cart, or contact us for larger quantities. Prices include GST.
Additional information
| Dimensions | 12.1 × 5 × 3.6 cm |
|---|---|
| Brand | Cudy |
| PoE standard | 802.3af/at (PoE+) |
| Output | 30 W, 54 V |
| Data rate | Gigabit |
