Cudy AP1300 Ceiling AP
$138.00 inc GST
The Cudy AP1300 is a slim AC1200 dual-band ceiling access point for offices, shops, cafés, workshops and homes. Mount it on the ceiling or wall, power it over the network cable with standard PoE, and give staff and guests fast, even Wi-Fi with up to eight separate networks.
- Dual-band AC1200: 867 Mbps (5 GHz) + 300 Mbps (2.4 GHz)
- Gigabit Ethernet port
- Powered by 802.3af/at PoE, passive PoE (24–57 V) or 12 V DC
- Up to 8 SSIDs with VLAN support
- Cudy Mesh with fast roaming
- Up to 100 devices, ceiling or wall mount
Clean, even Wi-Fi from the ceiling

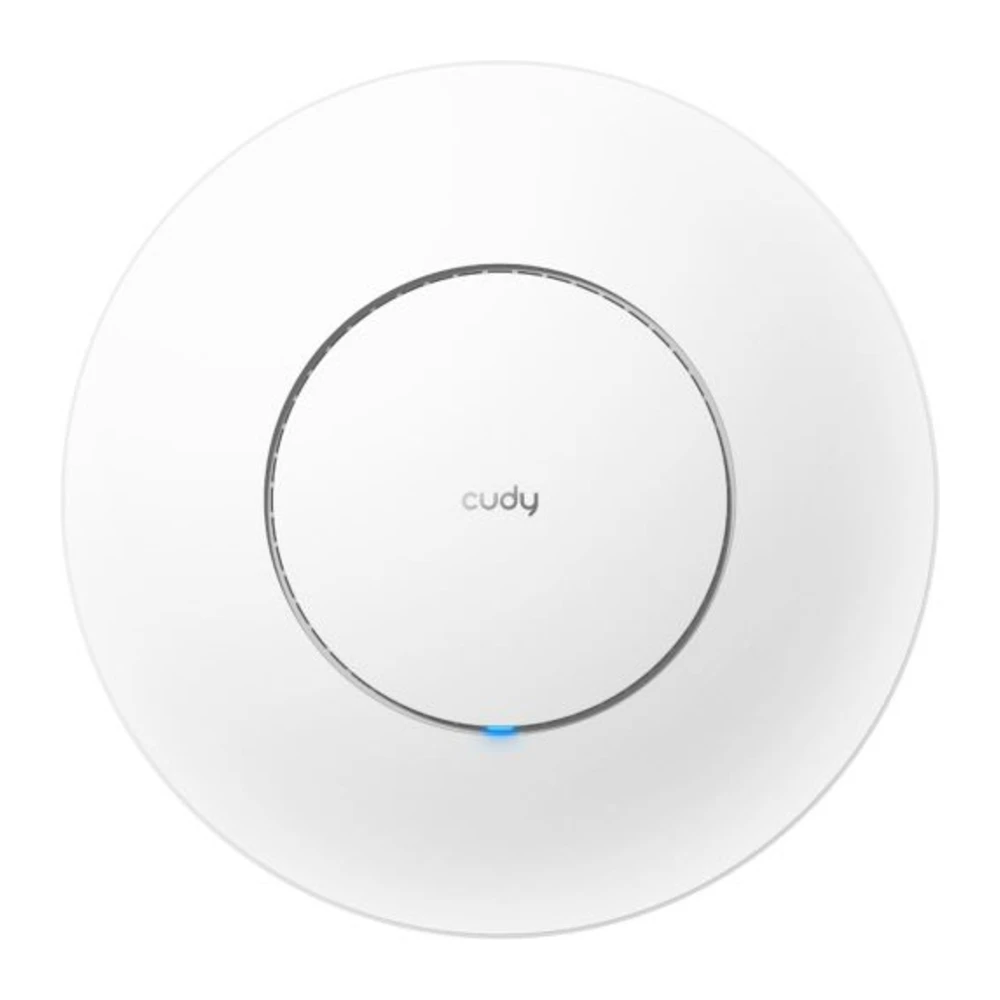

Ceiling mounting puts the access point above furniture and people, giving more even coverage across a room or floor than a router on a desk. The Cudy AP1300 is a slim, discreet disc with four-stream dual-band Wi-Fi 5, MU-MIMO and beamforming, supporting up to 100 connected devices.
It takes power from a standard 802.3af/at PoE switch or injector, so a single network cable to the ceiling is all you need. Add a Cudy POE200 PoE+ injector if your switch doesn't supply PoE. Passive PoE (24–57 V) and a 12 V DC jack are also supported.
Built for business networks
- Up to eight SSIDs (four per band) with VLAN tagging to separate staff, guest and device networks.
- Cudy Mesh with fast roaming when paired with other Cudy mesh devices, over wireless or wired backhaul.
- Router, access point, extender, WISP and client modes.
- WPA3 security, HTTPS web management, app control and remote management (TR-069).
- Hardware watchdog automatically restarts the AP if it stops responding.
Pair it with a Cudy LT500 4G or Cudy P5 5G router for mobile broadband, or the Cudy AC1200 Outdoor to extend Wi-Fi outside.
Download AP1300 datasheet (PDF)
Specifications
| Wi-Fi | Wi-Fi 5 AC1200: 5 GHz 867 Mbps, 2.4 GHz 300 Mbps, 2×2 MIMO per band |
| Features | MU-MIMO (5 GHz), beamforming, 256-QAM, 80 MHz channels |
| Security | WPA / WPA2 / WPA3 |
| SSIDs | Up to 8 (4 per band), VLAN support |
| Clients | Recommended 100, maximum 128 |
| Range | Up to 170 m in open space |
| Ethernet | 1 × gigabit (PoE in) |
| Power | 802.3af/at PoE, passive PoE 24–57 V, or 12 V DC 1 A (adapter not included) |
| Power consumption | Max 11 W (PoE), 7.5 W (DC) |
| Modes | Router, access point, extender, WISP, client, Cudy Mesh |
| Dimensions | Ø 231.9 × 57.1 mm |
| Weight | 396 g |

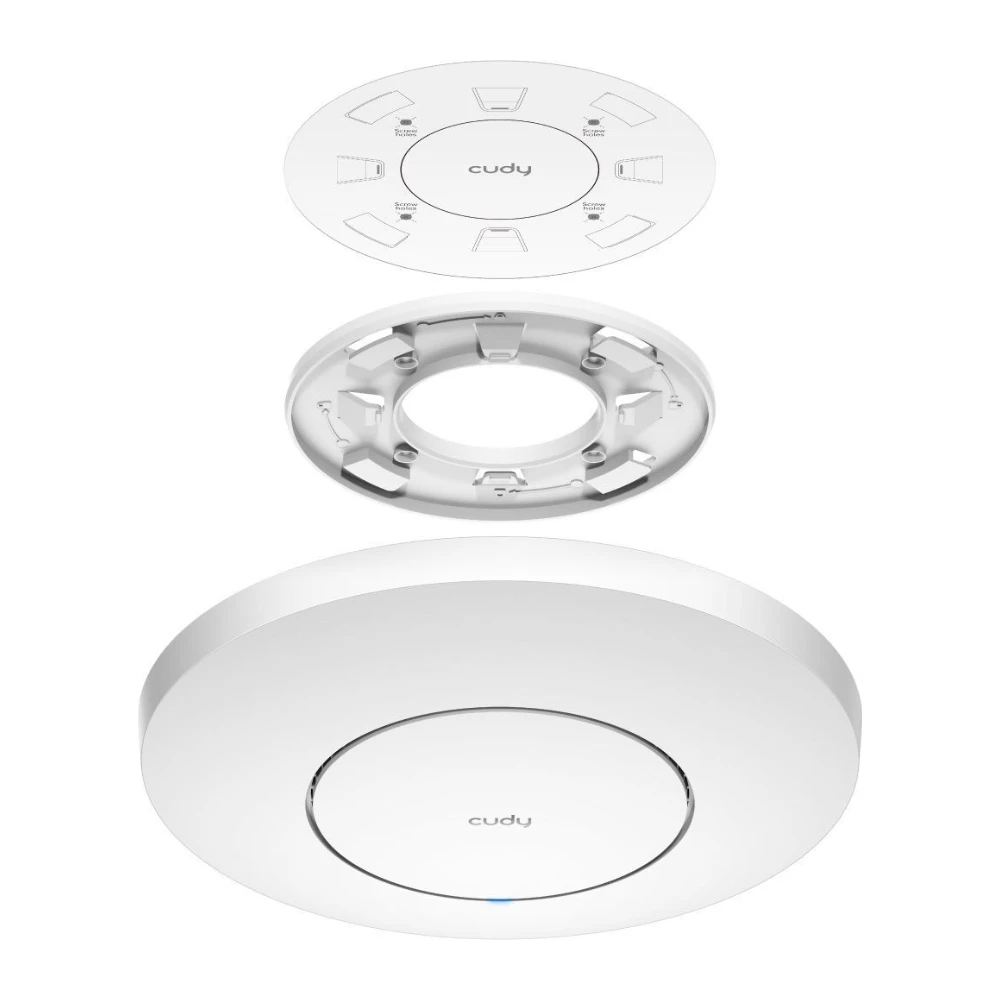

| Mounting | Ceiling or wall, mounting kit included |
| Operating temperature | 0°C to 40°C |
| In the box | AP1300, mounting kit, Ethernet cable, installation guide |
Ordering
Add to cart, or contact us for Wi-Fi coverage design, installation or larger quantities. Prices include GST.
Additional information
| Weight | 0.4 kg |
|---|---|
| Dimensions | 23.2 × 23.2 × 5.7 cm |
| Brand | Cudy |
| Wi-Fi | AC1200 dual band (Wi-Fi 5) |
| Power | 802.3af/at PoE, Passive PoE 24–57 V, 12 V DC |
| Ethernet | 1 × gigabit |
| Mounting | Ceiling or wall |
