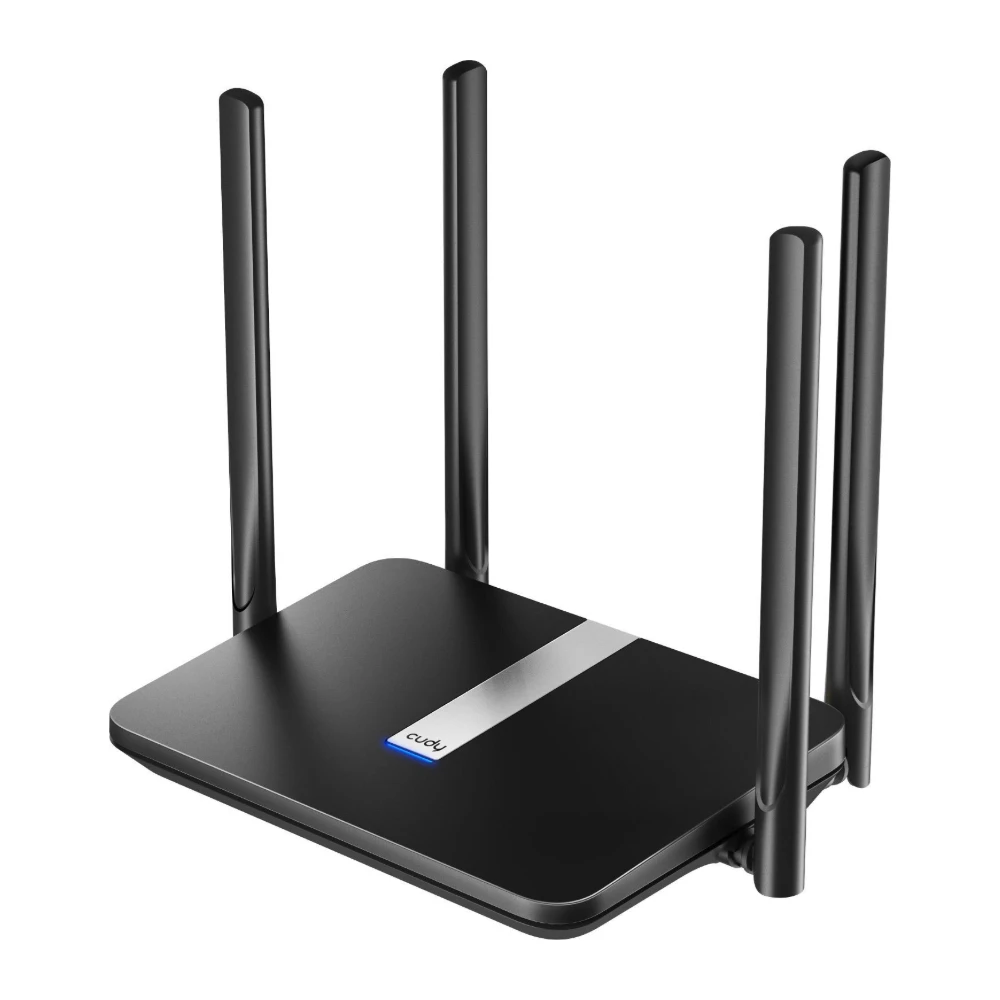

Cudy LT500 4G Wi-Fi Router
$171.35 inc GST
The Cudy LT500 is a 4G LTE router with dual-band AC1200 Wi-Fi, built for sites without fixed broadband or where you need a reliable backup. Pop in a nano SIM and get internet for a home, office, site shed, CCTV system or RV, with automatic failover between wired, WISP and 4G connections.
- 4G LTE Cat 4, up to 150 Mbps download
- Dual-band Wi-Fi 5: 867 Mbps (5 GHz) + 300 Mbps (2.4 GHz)
- Four 10/100 Ethernet ports, one configurable as WAN
- Automatic failover: WAN → WISP → 4G
- VPN server and client: WireGuard, OpenVPN, IPsec, ZeroTier and more
- Cudy app, cloud management and Cudy Mesh
4G internet anywhere you have mobile coverage
The Cudy LT500 turns a mobile data SIM into a full Wi-Fi network. It's an easy way to connect a home or office without fibre, a construction site office, a CCTV system, a pop-up shop or an RV. With a fixed connection plugged into the WAN port, it can also act as a standard Wi-Fi router and switch to 4G automatically if the line goes down.
Dual-band AC1200 Wi-Fi with MU-MIMO gives up to 867 Mbps on 5 GHz and 300 Mbps on 2.4 GHz, with WPA3 security, guest networks on both bands and support for up to 40 devices at once. Four Ethernet ports connect cameras, PCs and other wired gear.
Managed your way
- Set up and manage from a browser or the Cudy app, locally or remotely through the cloud.
- Built-in VPN server and client with WireGuard, OpenVPN, IPsec, ZeroTier, PPTP and L2TP for secure remote access.
- Parental controls, Wi-Fi schedules, per-device rate limiting and blocklists.
- SMS send and receive, DDNS, port forwarding, DMZ and IPv6.
- Cudy Mesh to extend coverage with other Cudy units.
For in-vehicle connectivity, see our GPS and Wi-Fi range, or contact us about Signals Link vehicle routers.
Download LT500 datasheet (PDF)
Specifications
| Cellular | 4G LTE Cat 4, DL 2×2 MIMO, up to 150 Mbps down / 50 Mbps up |
| LTE bands (AU/NZ version) | FDD B1/2/3/4/5/7/8/28/66; TDD B40; WCDMA B1/2/4/5/8 |
| SIM | 1 × nano SIM |
| Wi-Fi | Wi-Fi 5 AC1200: 5 GHz 867 Mbps, 2.4 GHz 300 Mbps, MU-MIMO |
| Wi-Fi security | WPA / WPA2 / WPA3, guest networks on both bands |
| Antennas | 2 × fixed 4G, 2 × fixed Wi-Fi |
| Ethernet | 4 × 10/100 Mbps (1 × WAN/LAN, 3 × LAN) |
| Modes | 4G router, Wi-Fi router, WISP; failover WAN → WISP → 4G |
| VPN | WireGuard, OpenVPN, IPsec, ZeroTier, PPTP, L2TP (server and client) |
| Wi-Fi range | Up to 130 m in open space |
| Power | 12 V DC 1 A, mains adapter included |
| Dimensions | 204.8 × 133.2 × 38.3 mm |
| Weight | 308 g |
| Mounting | Desktop or wall mount |
| Operating temperature | 0°C to 40°C |
| In the box | LT500 router, power adapter, Ethernet cable, installation guide |
Ordering
Add to cart, or contact us for SIM and data plan options, setup or larger quantities. Prices include GST.
Additional information
| Weight | 0.31 kg |
|---|---|
| Dimensions | 20.5 × 13.3 × 3.8 cm |
| Brand | Cudy |
| Cellular | 4G LTE Cat 4 |
| Wi-Fi | AC1200 dual band (Wi-Fi 5) |
| Ethernet | 4 × 10/100 |
| SIM | Nano SIM |
