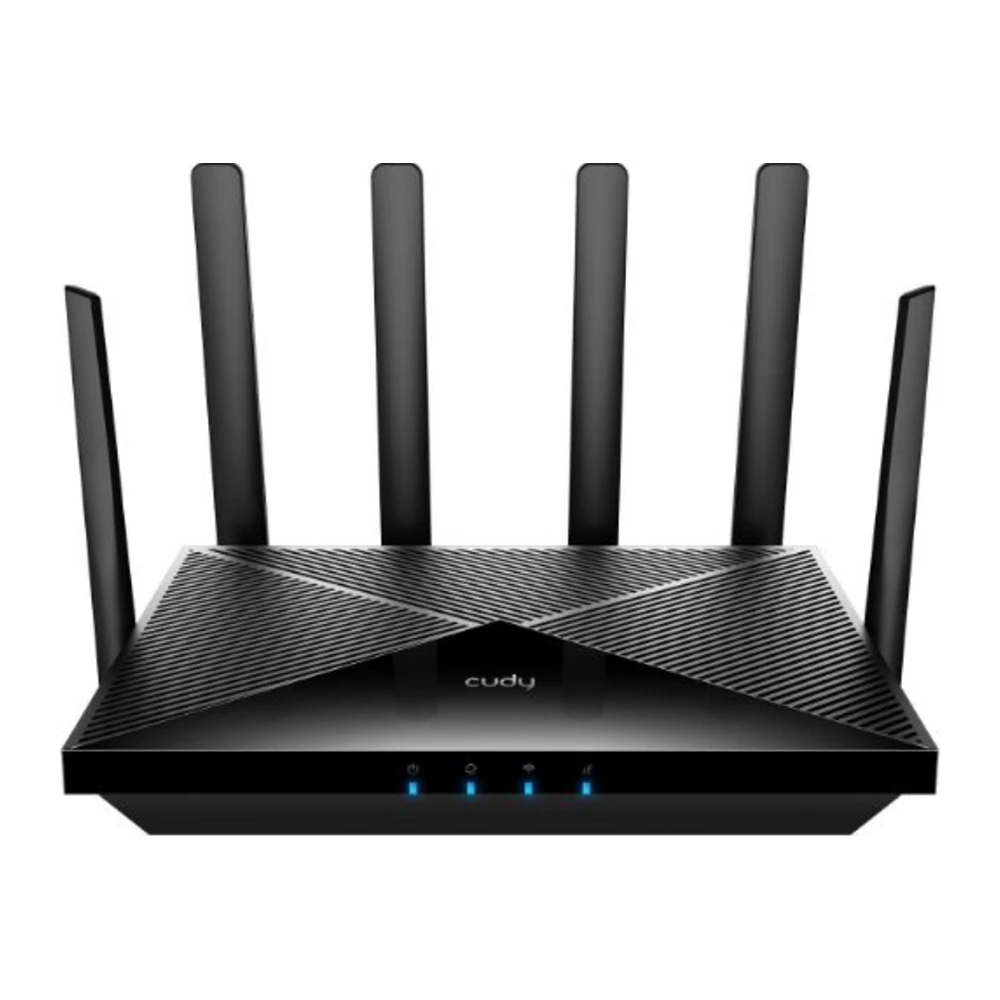

Cudy P5 5G Wi-Fi 6 Router
$851.00 inc GST
The Cudy P5 is a 5G router with AX3000 Wi-Fi 6, built for sites and businesses that need fibre-like speed from the mobile network. Dual SIM slots keep you online if one network drops, four gigabit ports connect your wired gear, and detachable cellular antenna connectors let you fit external antennas in weak-signal areas.
- 5G NR SA/NSA, up to 3.4 Gbps download, with 4G LTE fallback
- AX3000 dual-band Wi-Fi 6 with OFDMA and MU-MIMO
- Dual nano SIM with automatic failover
- Four gigabit Ethernet ports, any can be WAN
- Four SMA connectors for external cellular antennas
- VPN server and client: WireGuard, OpenVPN, IPsec, ZeroTier and more
5G broadband for business and remote sites
The Cudy P5 brings 5G speeds to offices, farms, construction sites, CCTV and retail where fibre isn't available or a backup is essential. It supports both standalone and non-standalone 5G with 4G LTE fallback, so it works on today's networks and is ready as 5G coverage grows.
Two nano SIM slots let you run SIMs from two networks, with automatic switching if one loses signal. A fixed line can plug into any of the four gigabit ports as the main WAN, with 5G as the backup. In marginal coverage, swap the supplied cellular antennas for external Hi-Tec Aerials cellular antennas using the four SMA connectors.
Fast, managed Wi-Fi 6
AX3000 dual-band Wi-Fi 6 on a Qualcomm chipset delivers up to 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz, with OFDMA, MU-MIMO and beamforming for busy networks. Business features include band locking, VLAN and IPTV, QoS, DNS over TLS, TR-069 remote management, SMS notifications, and a VPN server and client supporting WireGuard, OpenVPN, IPsec, ZeroTier, PPTP and L2TP.
For simpler 4G needs, see the Cudy LT500 4G Wi-Fi router.
Specifications
| Cellular | 5G NR SA/NSA (3GPP Rel. 16), LTE and WCDMA fallback |
| Cellular speed | Up to 3.4 Gbps down / 900 Mbps up (5G) |
| 5G NR bands (global version) | n1/2/3/5/7/8/12/13/14/18/20/25/26/28/29/30/38/40/41/48/66/70/71/75/76/77/78/79 |
| LTE bands (global version) | FDD B1/2/3/4/5/7/8/12/13/14/17/18/19/20/25/26/28/29/30/32/66/71; TDD B34/38/39/40/41/42/43/48 |
| SIM | 2 × nano SIM, automatic or manual switching |
| Wi-Fi | Wi-Fi 6 AX3000: 5 GHz 2402 Mbps, 2.4 GHz 574 Mbps; OFDMA, MU-MIMO, beamforming |
| Wi-Fi security | WPA / WPA2 / WPA3 |
| Ethernet | 4 × gigabit (any port configurable as WAN) |
| Antennas | 2 × fixed Wi-Fi; 4 × detachable cellular (SMA) |
| VPN | WireGuard, OpenVPN, IPsec, ZeroTier, PPTP, L2TP |
| Processor | Qualcomm IPQ5018 dual-core 1 GHz, 256 MB RAM, 128 MB flash |
| Power | 12 V DC 2.5 A, mains adapter included |
| Dimensions | 252.5 × 161 × 48.2 mm |
| Operating temperature | 0°C to 45°C |
| In the box | P5 router, power adapter, Ethernet cable, quick installation guide |
Ordering
Add to cart, or contact us for SIM and data plan options, external antennas, installation or larger quantities. Prices include GST.
Additional information
| Dimensions | 16.1 × 25.3 × 4.8 cm |
|---|---|
| Brand | Cudy |
| Cellular | 5G NR SA/NSA, 4G LTE |
| Wi-Fi | AX3000 dual band (Wi-Fi 6) |
| Ethernet | 4 × gigabit |
| SIM | Dual nano SIM |
| External antenna | 4 × SMA (cellular) |
