Cudy AC1200 Outdoor AP
$228.85 inc GST

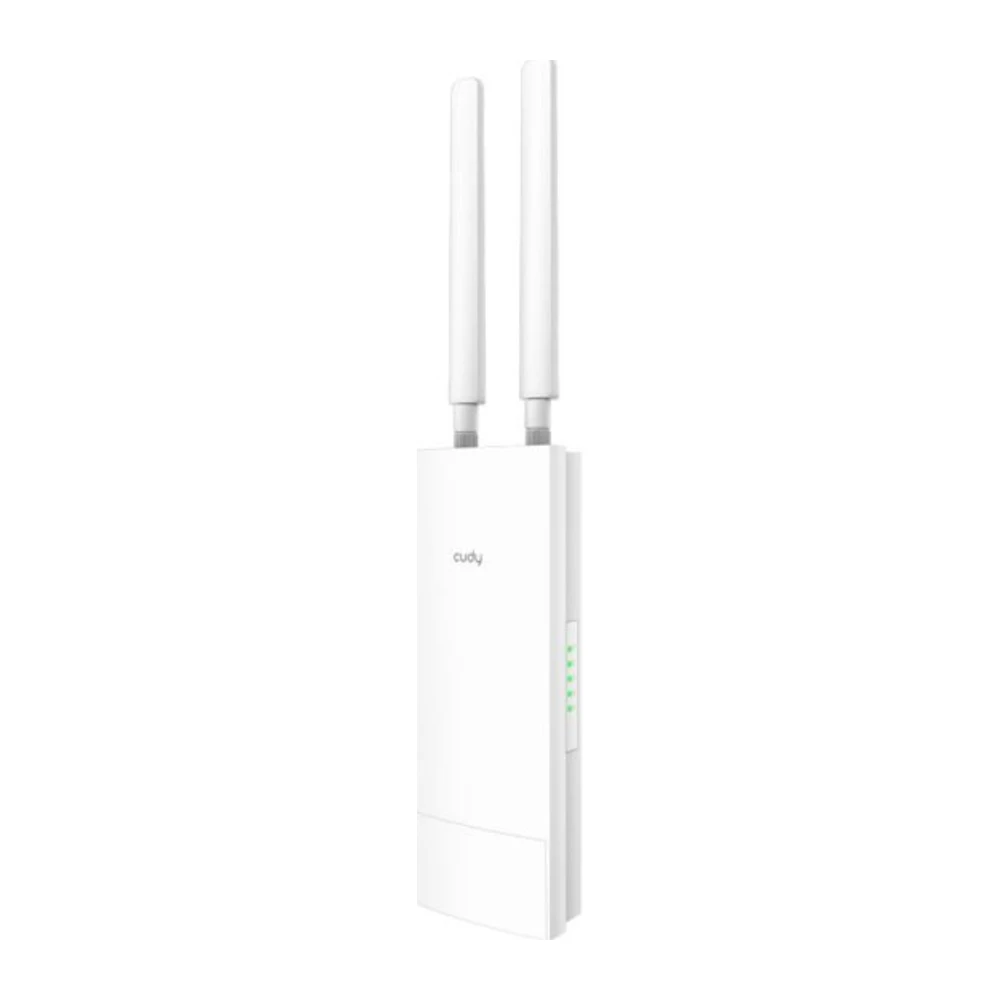

The Cudy AC1200 Outdoor is a weatherproof dual-band Wi-Fi access point for yards, car parks, farm buildings, campgrounds and work sites. It’s IP65 rated, powered over a single Ethernet cable with the included PoE adapter, and mounts on a wall or pole.
- Dual-band AC1200: 867 Mbps (5 GHz) + 300 Mbps (2.4 GHz)
- IP65 weatherproof, 4 kV lightning surge protection
- 24 V passive PoE, adapter included
- Access point, router, extender and WISP modes
- MU-MIMO, band steering and beamforming
- Wall and pole mounting kit included
Wi-Fi where you work outdoors
The Cudy AC1200 Outdoor puts reliable Wi-Fi outside the building: across a yard or depot, into a workshop or shed, around a campground, or out to cameras and sensors on a site. Its IP65 housing handles rain and dust, the Ethernet port has 4 kV lightning surge protection, and it runs from −20°C to 60°C.

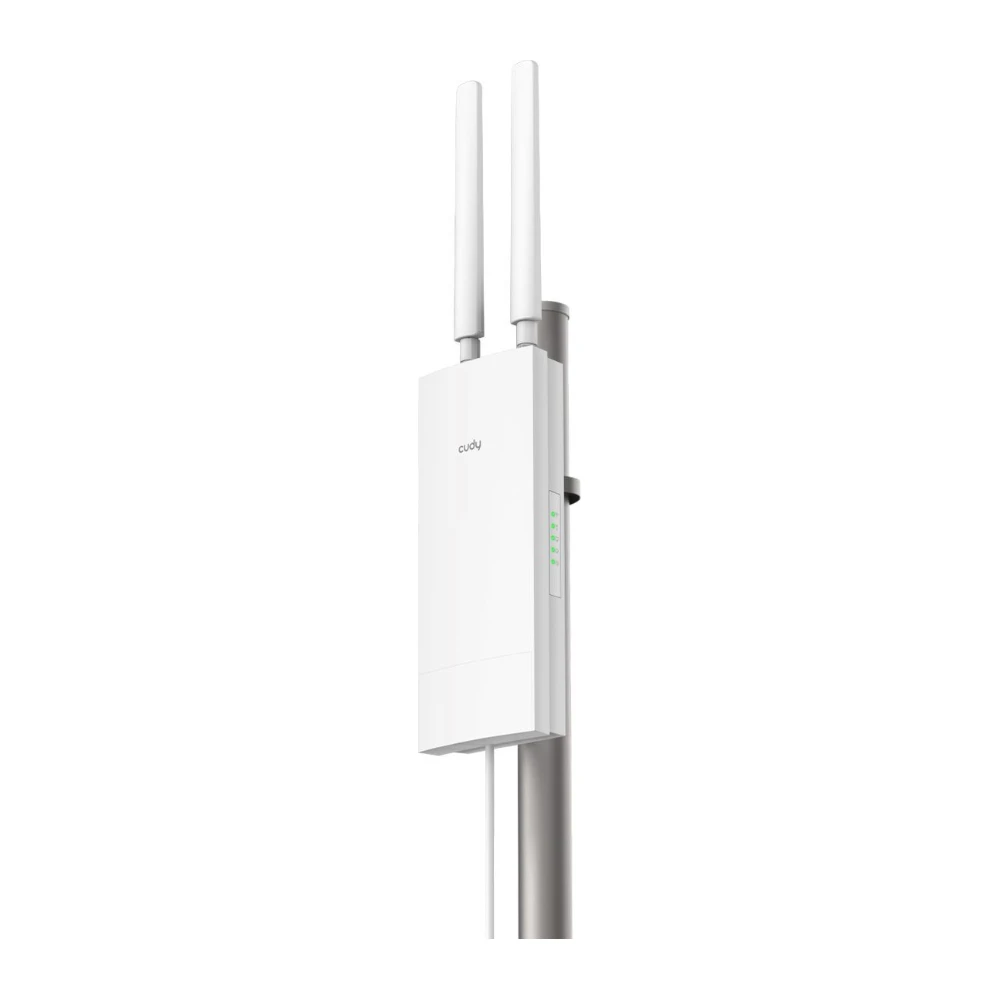

A single Ethernet cable carries both data and power using the included 24 V passive PoE adapter, so there's no need for a power point at the mounting position. The supplied kit mounts it on a wall or pole, and the two detachable antennas can be angled for the best coverage.
Flexible set-up
Use it as an access point off your existing network, as a router, as a range extender, or in WISP mode to pick up a distant Wi-Fi signal. Pair it with a Cudy LT500 4G router or Cudy P5 5G router to bring mobile broadband to an outdoor area. Multiple SSIDs, QoS, rate limiting, client isolation and schedules make it suitable for guest and staff networks.
Download AC1200 Outdoor datasheet (PDF)
Specifications
| Model | AP1200 Outdoor |
| Wi-Fi | Wi-Fi 5 AC1200: 5 GHz 867 Mbps, 2.4 GHz 300 Mbps |
| Features | MU-MIMO, band steering, beamforming, multiple SSIDs, QoS (WMM) |
| Channel width | 20 / 40 / 80 MHz |
| Security | WPA / WPA2-PSK, MAC filtering, client isolation |
| Modes | Access point, router, extender, WISP |
| Antennas | 2 × detachable Wi-Fi |

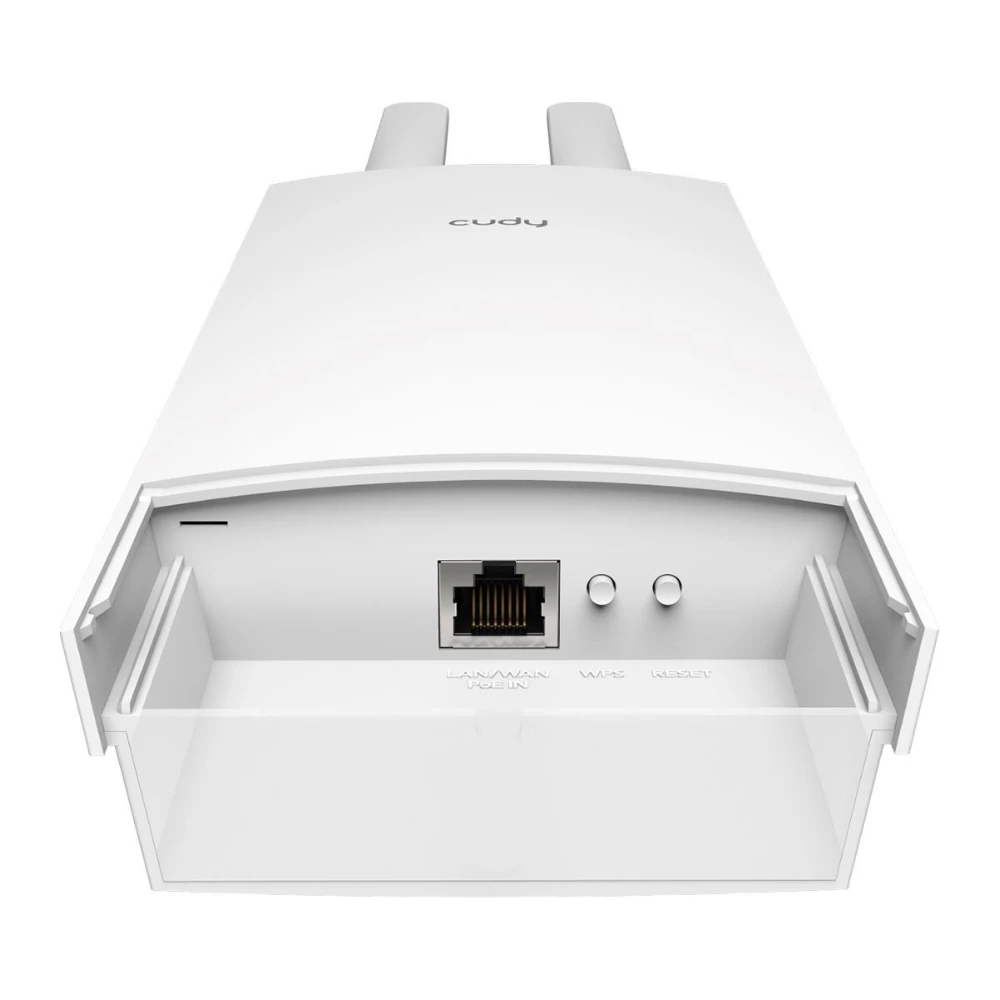

| Ethernet | 1 × 10/100 Mbps (PoE in) |
| Power | 24 V passive PoE, adapter included |
| Protection | IP65, 4 kV lightning surge protection |
| Operating temperature | −20°C to 60°C |
| Dimensions | 240 × 100 × 53.7 mm (without antennas) |
| In the box | Access point, 2 antennas, 24 V PoE adapter, 1 m Ethernet cable, wall/pole mounting kit, installation guide |
Ordering
Add to cart, or contact us for site Wi-Fi design, installation or larger quantities. Prices include GST.
Additional information
| Dimensions | 5.4 × 10 × 24 cm |
|---|---|
| Brand | Cudy |
| Wi-Fi | AC1200 dual band (Wi-Fi 5) |
| Protection | IP65 |
| Power | 24 V passive PoE |
| Mounting | Wall or pole |
