GME Compact UHF CB Radio
Price range: $509.00 through $785.00 inc GST
GME’s 5 W compact UHF CB range covers three styles of install: the TX3350 hideaway with an LCD speaker microphone, the TX3500S with ScanSuite in a rugged die-cast chassis, and the TX3520S remote-head for vehicles short on dash space. Choose the radio on its own or as a value pack. Signals is an authorised GME dealer.
- 80 UHF CB channels, 5 W, AS/NZS 4365 compliant
- DSP audio and dynamic volume control on every model
- ScanSuite digital scanning at 40 channels per second (TX3500S, TX3520S)
- 5-digit Selcall with quiet mode (TX3350, TX3520S)
- CTCSS and DCS to cut out other users (TX3500S, TX3520S)
- Value packs with antenna and mounting hardware
Compact UHF CB for every kind of vehicle
These GME radios pack 5 W and all 80 UHF CB channels into compact bodies that suit utes, 4WDs, trucks, tractors and machinery. Digital signal processing and dynamic volume control keep audio clear over engine and road noise.

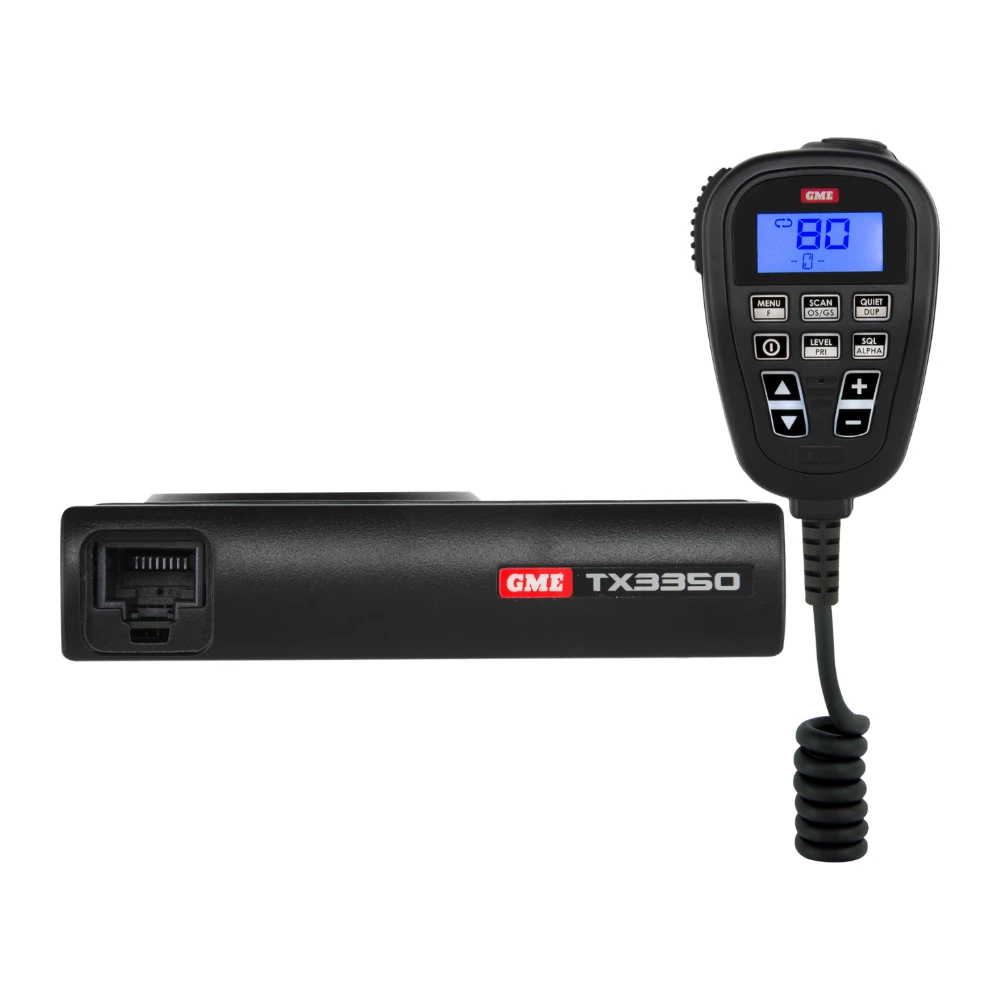

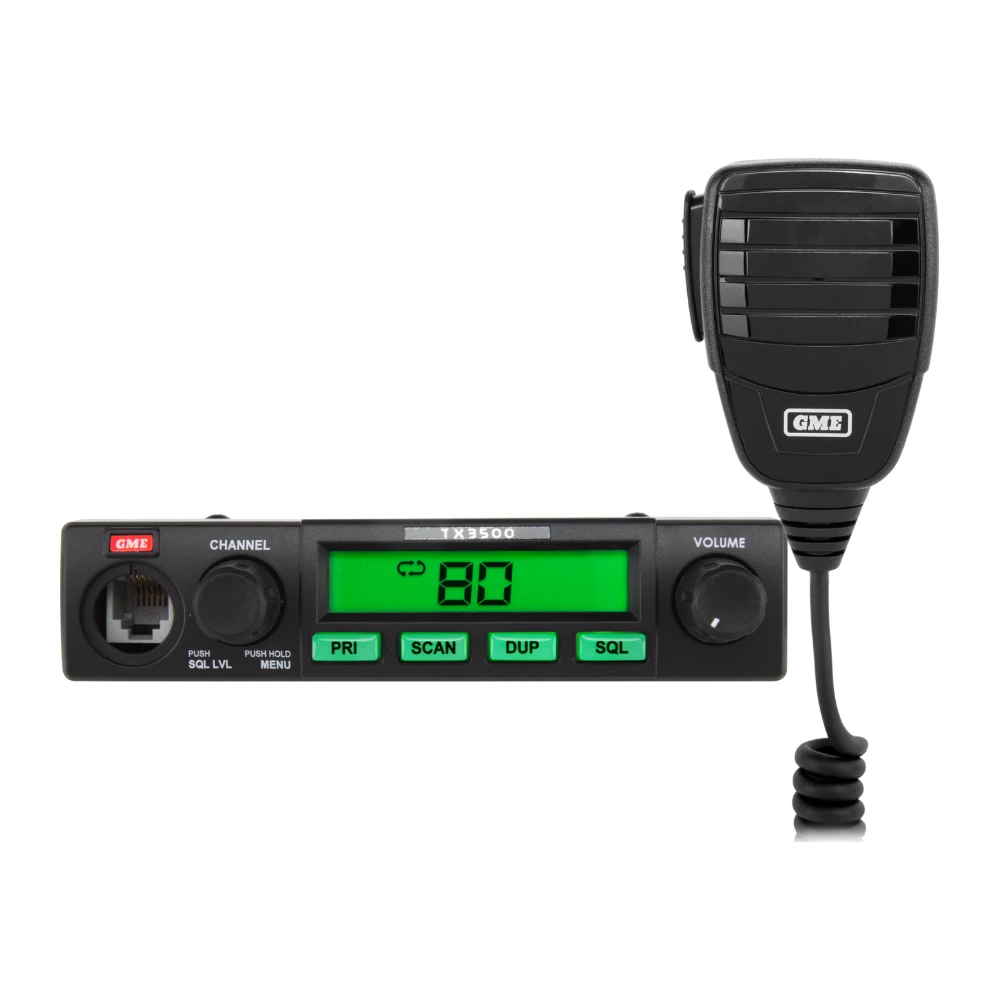

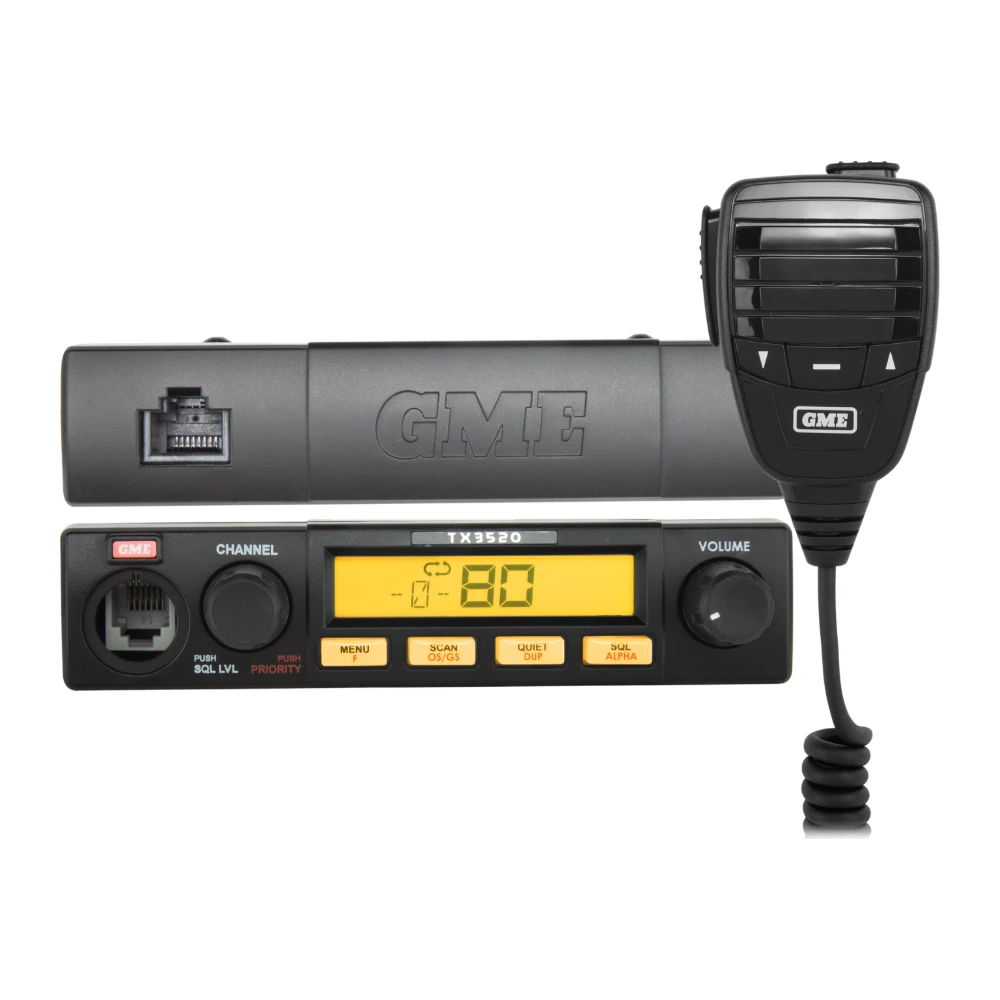

The TX3350 hides the radio out of sight and puts the display, controls and speaker in the microphone. GME's SoundPath design routes audio around the mic so no extension speaker is needed. The TX3500S is the classic dash-mount radio, built on a die-cast metal chassis with a slide-in cradle, full-spectrum LCD backlighting and ScanSuite fast scanning. The TX3520S has the same performance with a detachable remote head, so the base unit can go under a seat or behind a panel.
Pair the radio with a Hi-Tec Aerials UHF aerial and a magnetic mount, or choose a value pack. For the tightest installs, see the GME TX3100 super compact UHF CB.
Choose your option
| Model | What it is |
|---|---|
| TX3350 | Hideaway radio with SoundPath LCD speaker microphone |

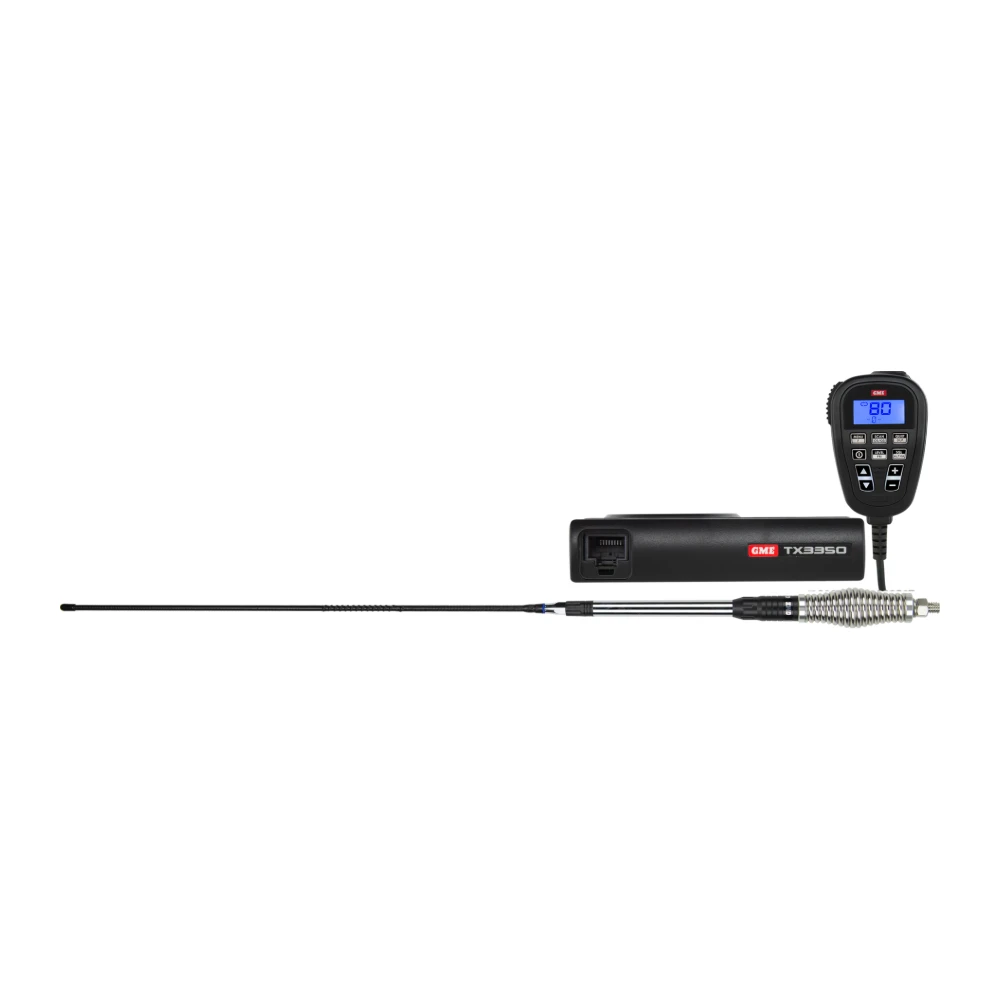

| TX3350UVP | Ultimate value pack: TX3350 hideaway radio and LCD speaker microphone with a spring-base UHF CB antenna |
| TX3500S | Compact radio with ScanSuite and heavy duty microphone |

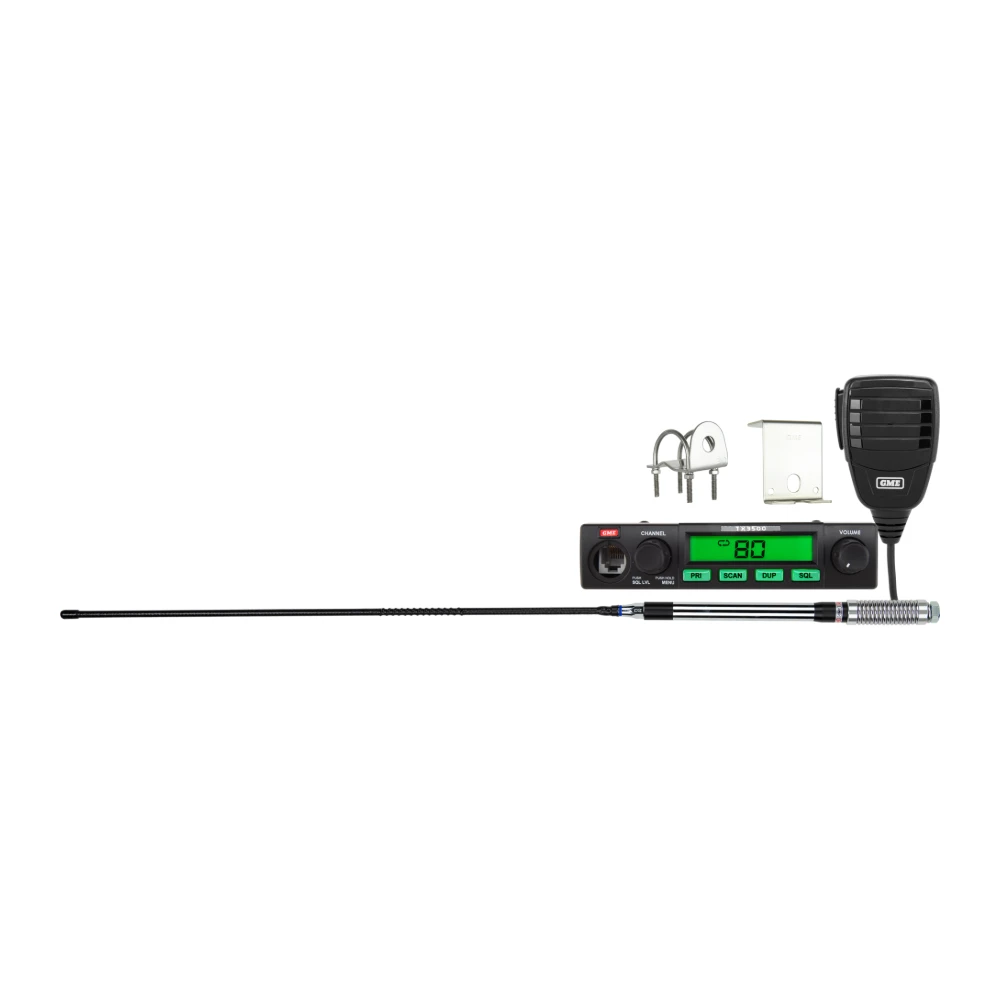

| TX3500SVP | Value pack: TX3500S with antenna, antenna bracket and mounting hardware |
| TX3520S | Remote head radio with ScanSuite |
Tech sheets: TX3350 (PDF) · TX3500S (PDF) · TX3520S (PDF)
Specifications
| TX3350 | TX3500S | TX3520S | |
|---|---|---|---|
| Style | Hideaway, controls in mic | Dash mount | Remote head |
| Channels | 80 CB | 99 (80 CB + 19 RX only) | 175 (80 CB + 95 RX only) |
| Scan speed | 20 ch/s | 40 ch/s (ScanSuite) | 40 ch/s (ScanSuite) |
| Selcall / CTCSS / DCS | 5-digit Selcall | CTCSS, DCS | 5-digit Selcall, CTCSS, DCS |
| Receiver sensitivity | −122 dBm (12 dB SINAD) | −122 dBm | −122 dBm |
| Microphone port | 8-pin RJ45 | 6-pin RJ12 | 6-pin RJ12 |
| Dimensions (W × D × H) | 102 × 97 × 23 mm | 128 × 117 × 29 mm | 128 × 117 × 29 mm |
| Weight | 178 g | 450 g | 450 g |
All models: 476.425–477.4125 MHz, 12.5 / 25 kHz spacing, 5 W RF output, 3 W audio (4 Ω), 12 V DC (10–14 V) negative earth with 2 A in-line fuse, SO239 antenna socket, 3.5 mm external speaker jack, −10°C to +60°C, AS/NZS 4365.
Ordering
Select the option above and add to cart, or contact us for fleet quantities and installation. Prices include GST. Signals is an authorised GME dealer.
Additional information
| Weight | N/A |
|---|---|
| Brand | GME |
| Band | UHF |
| Technology | CB |
| Model | TX3350 Hideaway with LCD speaker mic, TX3350UVP Ultimate value pack, TX3500S ScanSuite radio, TX3500SVP Value pack, TX3520S Remote head with ScanSuite |
| Channels | 80 UHF CB |
| Output Power | 5 W |
