GME DIN Mount UHF CB Radio
Price range: $659.00 through $719.00 inc GST

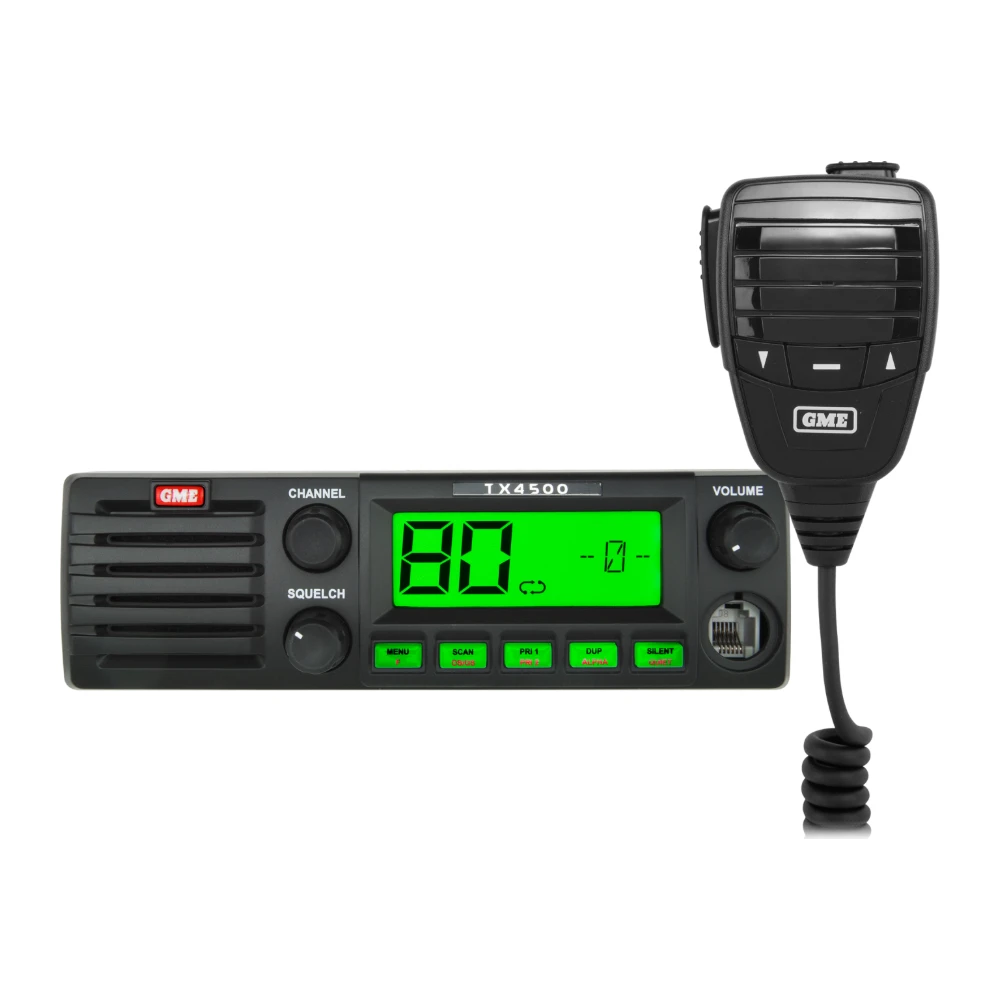

The GME TX4500S is a 5 W UHF CB radio in a standard DIN-size, die-cast metal body rated IP67, made for trucks, tractors and machinery where a radio needs to be heard. A front-facing speaker, rotary knobs and a large wide-angle LCD make it easy to use on the move. The TX4500WS2 adds a wireless steering wheel PTT. Signals is an authorised GME dealer.
- 80 UHF CB channels plus 95 receive-only, 5 W, AS/NZS 4365 compliant
- IP67 dustproof and waterproof, fits a standard DIN dash slot
- Front-facing speaker for noisy cabs
- ScanSuite scanning at 40 channels per second
- DSP audio and dynamic volume control
- WS2: wireless 2.4 GHz steering wheel PTT, also IP67
A DIN-size UHF CB for working vehicles
The GME TX4500S fits a standard DIN dash slot and is built on a die-cast metal chassis sealed to IP67, so dust, washdowns and rain are not a problem. Its front-facing speaker pushes audio straight into the cab, so you can hear calls over engine, road and machinery noise. Separate rotary knobs for channel, volume and squelch work with gloves on, and the large, high-contrast LCD with full-spectrum backlighting is easy to read at a glance.
ScanSuite scans 40 channels per second, and digital signal processing and dynamic volume control keep audio clear. Microphone ports on both the front and rear give you flexible install options.

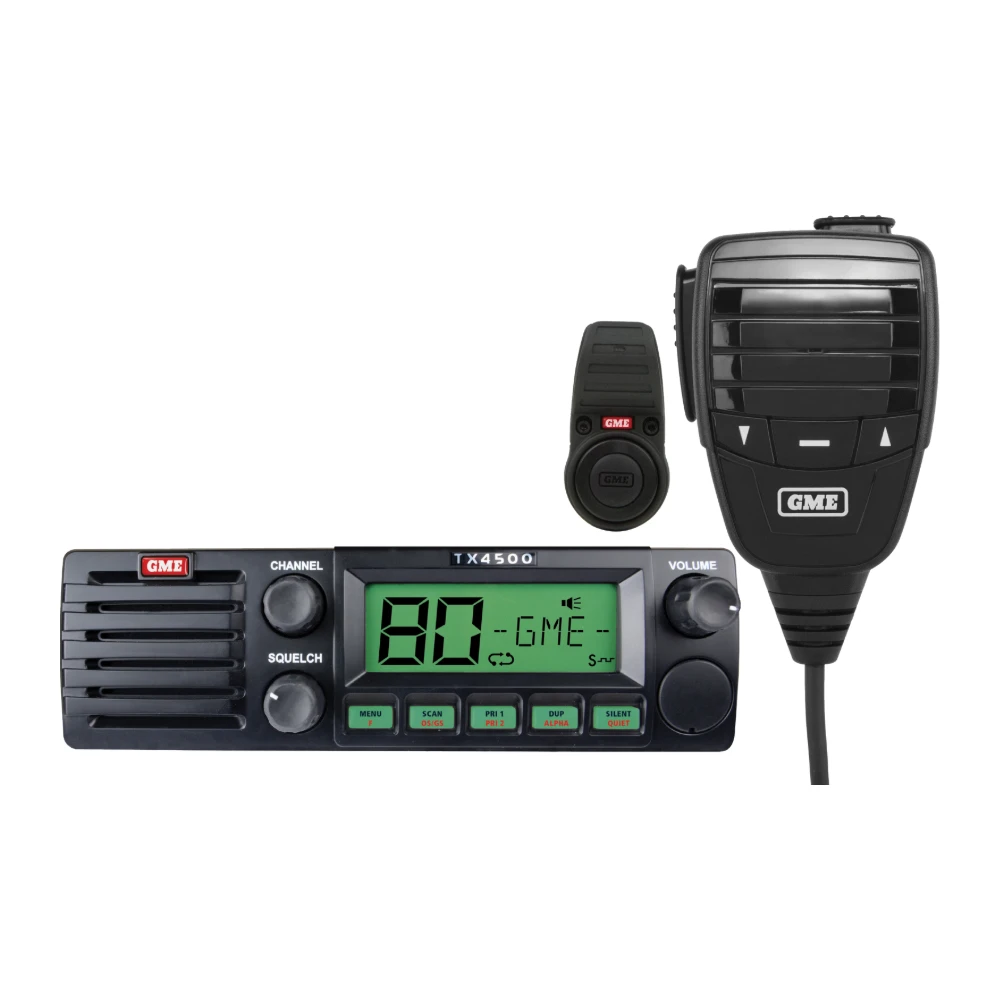

Hands on the wheel with the TX4500WS2
The TX4500WS2 adds GME's W2 wireless PTT, which clamps to the steering wheel so the driver can talk without reaching for the microphone. It runs on a CR2032 coin cell and is rated IP67.
Pair the radio with a Hi-Tec Aerials UHF aerial and a magnetic mount. For smaller vehicles, see the GME compact UHF CB range.
Choose your option
| Model | What it is |
|---|---|
| TX4500S | 5 W DIN mount UHF CB radio with ScanSuite and heavy duty microphone |
| TX4500WS2 | TX4500S with W2 wireless steering wheel PTT |
Tech sheets: TX4500S (PDF) · TX4500WS2 (PDF)
Specifications
| Compliance | AS/NZS 4365 |
| Frequency range | 476.425–477.4125 MHz |
| Channels | 175 (80 CB + 95 receive only) |
| Channel spacing | 12.5 / 25 kHz |
| Scan speed | 40 channels per second (ScanSuite) |
| RF output | 5 W |
| Receiver sensitivity | −122 dBm for 12 dB SINAD |
| Audio output | 3 W (4 Ω), front-facing speaker |
| Supply voltage | 12 V DC nominal (10–14 V), negative earth, 2 A in-line fuse |
| Antenna connector | SO239 |
| Microphone ports | 6-pin RJ12, front and rear |
| External speaker | 3.5 mm mono jack |
| Dimensions | 171 × 112 × 50 mm (W × D × H), DIN size |
| Weight | 646 g |
| Ingress protection | IP67: dust-tight and waterproof to 1 m for 30 minutes (fully assembled) |
| Operating temperature | −10°C to +60°C |
| W2 wireless PTT (WS2) | 2.4 GHz, CR2032 battery, IP67, 80 × 40 × 38 mm, 56 g |
Ordering
Select the option above and add to cart, or contact us for fleet quantities and installation. Prices include GST. Signals is an authorised GME dealer.
Additional information
| Weight | 0.65 kg |
|---|---|
| Dimensions | 11.2 × 17.1 × 5 cm |
| Brand | GME |
| Band | UHF |
| Technology | CB |
| Model | TX4500S DIN mount radio, TX4500WS2 with wireless PTT |
| Channels | 80 UHF CB + 95 RX only |
| Output Power | 5 W |
| Dimensions | 171 × 112 × 50 mm (DIN) |
| Protection | IP67 |
