Rigging Pipe Clamp
Price range: $155.85 through $355.81 inc GST

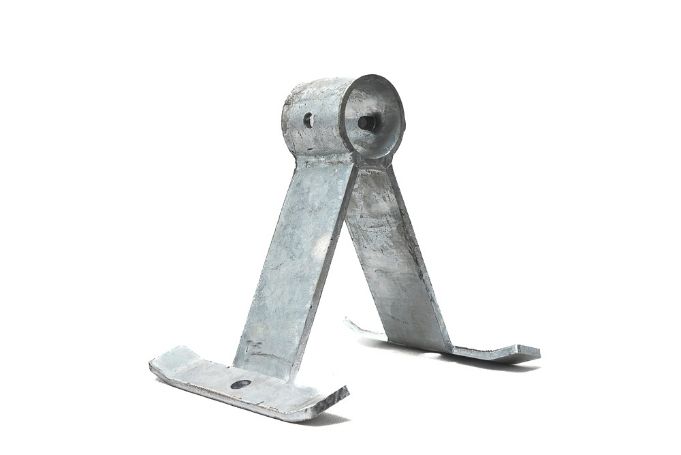

The Hi-Tec Aerials Rigging Pipe Clamp mounts a vertical rigging pipe to a wooden pole, standing it 150 mm off the pole. That gives aerials clearance from the pole on power, telecommunications and farm poles.
- Holds 48 mm OD pipe (standard 2″ galvanised water pipe)
- Fits poles from 150 to 1000 mm diameter
- Fixes with coach screws or band-it straps through 6 × 12.5 mm holes
- Hot-dip galvanised steel
- Also available for 89 mm pipe (CL-RP-89) and in a flat-bottomed version (CL-RPF)
Rigging pipe on wooden poles
When a site uses a wooden pole, the Rigging Pipe Clamp is the standard way to stand off a vertical pipe for aerials. It holds a 48 mm OD pipe (standard 2" galvanised water pipe) 150 mm from the pole, giving whips, collinears and yagis clearance from the pole and other equipment. Use two or more clamps up the pole to support a full-length rigging pipe.
Fixes with coach screws or straps
The clamp fixes to poles from 150 to 1000 mm diameter with coach screws or band-it straps through six 12.5 mm holes. A hole opposite the securing nut lets you fit a through bolt to the lowest clamp, so the pipe can't slide down. Hot-dip galvanised steel gives long life outdoors.
Three versions
- CL-RP: standard clamp for 48 mm OD pipe.
- CL-RP-89: for 89 mm pipe, for larger masts and heavier aerial loads.
- CL-RPF: flat-bottomed version.
Once the pipe is up, fix aerials to it with saddle clamps, mounting clamps or cross clamps. Tell us about your site and we'll match the right hardware.
Installed by Signals NZ
Signals NZ and Hi-Tec Aerials design, supply and install aerial systems for two-way radio sites, repeaters and base stations across New Zealand. See our installation and service options.
Specifications (CL-RP)
| Body | Hot-dip galvanised steel |
| Vertical pipe diameter | 48 mm OD |
| Mounting pole diameter | 150–1000 mm |
| Pipe offset from pole | 150 mm |
| Mounting holes | 6 × 12.5 mm |
| Fixing | Coach screws or band-it straps |
| Dimensions | 200 × 200 × 150 mm |
| Weight | 2 kg |
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Brand | Hi-Tec |
| Model | CL-RP, CL-RP-89, CL-RPF |
| Body | Hot-dip galvanised steel |
| Pole Size | 150–1000 mm |
| Offset | 150 mm |
