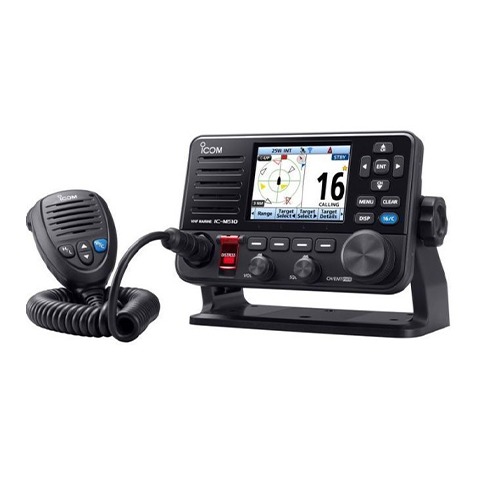

Icom IC-M510 EVO VHF Marine Radio
$1,926.25 inc GST
The Icom IC-M510 EVO is an award-winning 25 W fixed VHF marine radio you can control from your phone or tablet. The RS-M500 app turns up to three smart devices into wireless microphones over WLAN, and it adds Class D DSC, built-in GNSS, NMEA 2000, a wide-angle colour display, IP68 waterproofing and a 25 W two-way hailer.
The Icom IC-M510 EVO is a full-featured fixed-mount VHF that goes wherever you are on the boat. With the free RS-M500 app for iOS and Android, up to three smart devices connect over WLAN and work as wireless microphones or simple remote controls, so you can make calls from the cabin, cockpit or deck. Phones, CommandMics and the radio can also talk to each other on the built-in intercom.
Its sleek design won an iF DESIGN AWARD in 2022 and suits modern glass-cockpit dashboards, with panel or trunnion mounting. The colour TFT display has a near 180-degree viewing angle and a night mode, and built-in NMEA 2000 shares GNSS position, DSC calls, channel and AIS data with your MFD.
Key features
- Smart device control: up to three phones or tablets as wireless microphones or remotes via the RS-M500 app over WLAN.
- Intercom between smart devices, CommandMics and the radio.
- Class D DSC with a dedicated DISTRESS button and continuous Channel 70 watch.
- Integrated GNSS receiver, using the internal antenna or an optional UX-241 GNSS antenna.
- NMEA 2000 and NMEA 0183-HS: plug-and-play data sharing with MFDs and the MA-510TR AIS transponder, including AIS targets on screen.
- 25 W two-way hailer and 20 W RX hailer with an SP-37 horn speaker, plus foghorn patterns.
- Wide-angle colour TFT display with night mode.
- IP68 waterproof (1 m for 60 minutes) and MIL-STD-810G, with AquaQuake water draining.
- Active noise cancelling, simplified navigation and optional UT-112A voice scrambler.
- Add an optional HM-195GB CommandMic for another control station.
Specifications
| Frequency range | Tx 156.025–157.425 MHz / Rx 156.050–163.275 MHz |
| DSC | Class D, CH70 (156.525 MHz), DISTRESS button |
| GNSS | Built-in receiver, internal antenna (UX-241 optional) |
| AIS | Shows AIS targets via NMEA from an MA-510TR transponder (integrated AIS receiver on the IC-M510 EVO AIS version only) |
| Channels | International (INT) marine channels |
| Output power | 25 W / 1 W |
| Ingress protection | IP68 (1 m for 60 minutes) |
| Durability | MIL-STD-810 C/D/E/F/G |
| Power supply | 13.8 V DC (11.7–15.9 V) |
| Current drain | Tx 5.0 A / Rx 1.6 A |
| Audio output | More than 15 W external speaker; 20 W RX hailer; 25 W two-way hailer |
| Wireless LAN | IEEE 802.11 b/g/n, 2.4 GHz |
| Operating temperature | –20°C to +60°C |
| Dimensions | 175 × 110 × 53 mm |
| Weight | 730 g (without microphone) |
Download IC-M510 EVO Spec Sheet (PDF)
What's in the box
- IC-M510 EVO radio
- HM-205RB speaker microphone (front or rear connection)
- Microphone hanger
- DC power cable
- Mounting bracket kit
- Flush mount gasket
Optional accessories include the HM-195GB CommandMic, MBF-7 and MBF-9 flush mount kits, MBZ-1 front panel cover, SP-37 horn speaker, UX-241 GNSS antenna, UT-112A voice scrambler and MA-510TR Class B AIS transponder.
To use DSC, the radio needs your vessel's MMSI number programmed in. We can help set this up when you order.
Compare the range
Want a simpler DSC and GPS radio? See the Icom IC-M423G. Need to hide the radio away? See the IC-M410BB / M510BB black box.
Get a quote for your vessel or fleet.
Additional information
| Weight | 0.73 kg |
|---|---|
| Dimensions | 5.3 × 17.5 × 11.0 cm |
| Brand | Icom |
| Technology | Analogue |
| Frequency Range | VHF marine 156–163 MHz |
| Output Power | 25 / 1 W |
| Ingress Protection | IP68 |
| Power Supply | 13.8 V DC |
| DSC / GNSS | Class D DSC, Built-in GNSS, NMEA 2000 |
| Remote Control | WLAN smart device app (RS-M500) |
