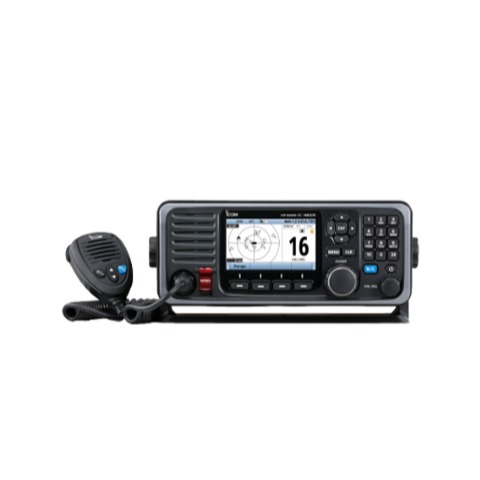

Icom IC-M605EURO VHF Radio System
$2,340.25 inc GST
The Icom IC-M605EURO is Icom’s flagship Class D DSC VHF marine radio system. It has an integrated AIS receiver, built-in GNSS (antenna supplied), a 4.3-inch colour display, a 30 W two-way hailer and NMEA 2000, and can be controlled from up to three RC-M600 command heads or HM-229 CommandMics with intercom.
The Icom IC-M605EURO is built for boats that need a complete VHF system rather than a single radio. As well as the main radio, it can be run from up to three remote controllers: the RC-M600 command head, which controls the radio identically from up to 50 m away, and the HM-229 CommandMic, which controls most functions except distress from up to 18.3 m. An intercom links the main radio and every controller.
The integrated AIS receiver shows real-time vessel traffic on the 4.3-inch colour TFT display, with an AIS plotter, target list and combo screen, and lets you make an individual DSC call straight from the AIS screen. GNSS position comes from the built-in receiver and supplied UX-241 antenna, and NMEA 2000 and NMEA 0183/-HS share GNSS, AIS, DSC and channel data with the rest of your electronics.
Key features
- Flagship Class D DSC with an integrated AIS receiver: AIS plotter, target list and DSC calls direct to AIS targets.
- Up to three controllers: RC-M600 command head (up to 50 m) and/or HM-229 CommandMic (up to 18.3 m), with intercom.
- Built-in GNSS receiver (GPS, GLONASS and SBAS) with supplied UX-241 antenna (5 m cable).
- 4.3-inch wide-angle colour TFT display with night mode, soft keys and a large ten-key pad for channels and MMSI entry.
- 30 W two-way hailer with SP-37 horn speaker, RX hailer and four automatic foghorn patterns.
- Active noise cancelling and last-call voice recording (up to 2 minutes).
- Commercial-grade receiver: selectivity and IMD of more than 75 dB.
- NMEA 2000 and NMEA 0183/-HS, including conversion of NMEA 0183 GNSS data to NMEA 2000.
- IPX8 waterproof (1 m for 60 minutes), MIL-STD-810G, AquaQuake, dual/tri-watch and optional UT-112 voice scrambler.
Specifications
| DSC | Class D, CH70 (156.525 MHz) |
| AIS receiver | 161.975 / 162.025 MHz |
| GNSS | Built-in receiver (GPS, GLONASS, SBAS), UX-241 antenna supplied |
| Channels | International (INT) marine channels |
| Output power | 25 W / 1 W |
| Emission | 16K0G3E (FM), 16K0G2B (DSC) |
| Display | 4.3-inch colour TFT |
| Ingress protection | IPX8 (1 m for 60 minutes) |
| Durability | MIL-STD-810 C/D/E/F/G |
| Power supply | 13.8 V DC (10.8–15.6 V) |
| Current drain | Tx 6.0 A / Rx 8.0 A max |
| Audio output | More than 15 W with 4 Ω external speaker; 30 W two-way hailer |
| Antenna connector | SO-239, 50 Ω |
| Operating temperature | –20°C to +60°C |
| Weight | 1.51 kg |
Download IC-M605EURO Spec Sheet (PDF)
What's in the box
- IC-M605EURO radio
- HM-205RB speaker microphone
- UX-241 GNSS antenna (5 m cable)
- Microphone hanger
- DC power cable
- Mounting bracket kit
Optional accessories include the RC-M600 command head, HM-229B/W CommandMic (with OPC-2384 conversion cable), OPC-2377 and OPC-1541 extension cables, MB-75 flush mount kit, SP-37 horn speaker, UT-112 voice scrambler and the MA-510TR Class B AIS transponder.
To use DSC, the radio needs your vessel's MMSI number programmed in. We can help set this up when you order.
Compare the range
Want smartphone control in a more compact radio? See the Icom IC-M510 EVO. Prefer to hide the radio away? See the IC-M410BB / M510BB black box.
Get a quote for your vessel or fleet.
Additional information
| Weight | 1.51 kg |
|---|---|
| Dimensions | 12.2 × 25.0 × 11.4 cm |
| Brand | Icom |
| Technology | Analogue |
| Frequency Range | VHF marine 156–163 MHz |
| Output Power | 25 / 1 W |
| Ingress Protection | IPX8 |
| Power Supply | 13.8 V DC |
| DSC / AIS / GNSS | Class D DSC, AIS receiver, Built-in GNSS, NMEA 2000 |
